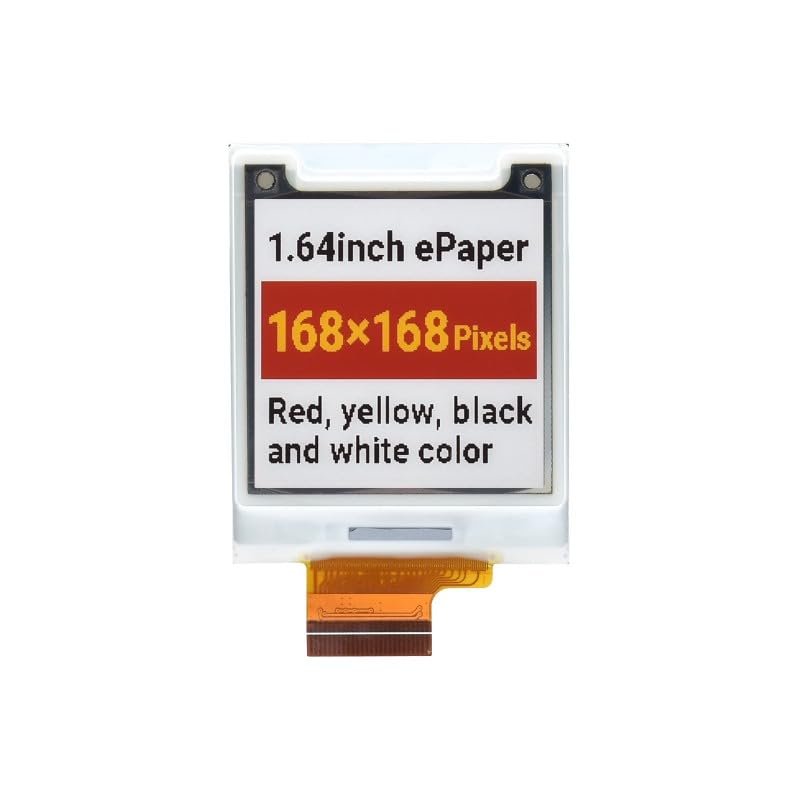

1.64inch Square E-Paper E-Ink (G) Raw Display 168 168 Pixels Resolution Red/Yellow/Black/White SPI Communication

Description

• This product is an E-paper device adopting the image display technology of Microencapsulated Electrophoretic Display, MED.
• The initial approach is to create tiny spheres, in which the charged color pigments are suspended in the transparent oil and would move depending on the electronic charge.
• The E-paper screen display patterns by reflecting the ambient light, so it has no background light requirement.
• Under ambient light, the E-paper screen still has high visibility with a wide viewing angle of 180 degrees.
• It is the ideal choice for E-reading.

Specification
Dimensions1.64inch
Driver board dimensions47mm x 38mm
Display dimensions29.568mm 29.568mm
Outline dimensions (screen only)45.5mm 36.4mm 0.91mm
Operating voltage3.3V / 5V (5V is required for power and signal)
Communication interfaceSPI
Dot pitch0.176 0.176mm
Resolution168 x 168
Display colorBlack, White, Yellow, Red
Grey scale2
Refresh time12s
Refresh power<57 mW(typ.)
Standby current<0.01uA (almost 0)

PACKAGE CONTENT
1.64inch e-Paper (G) x1
