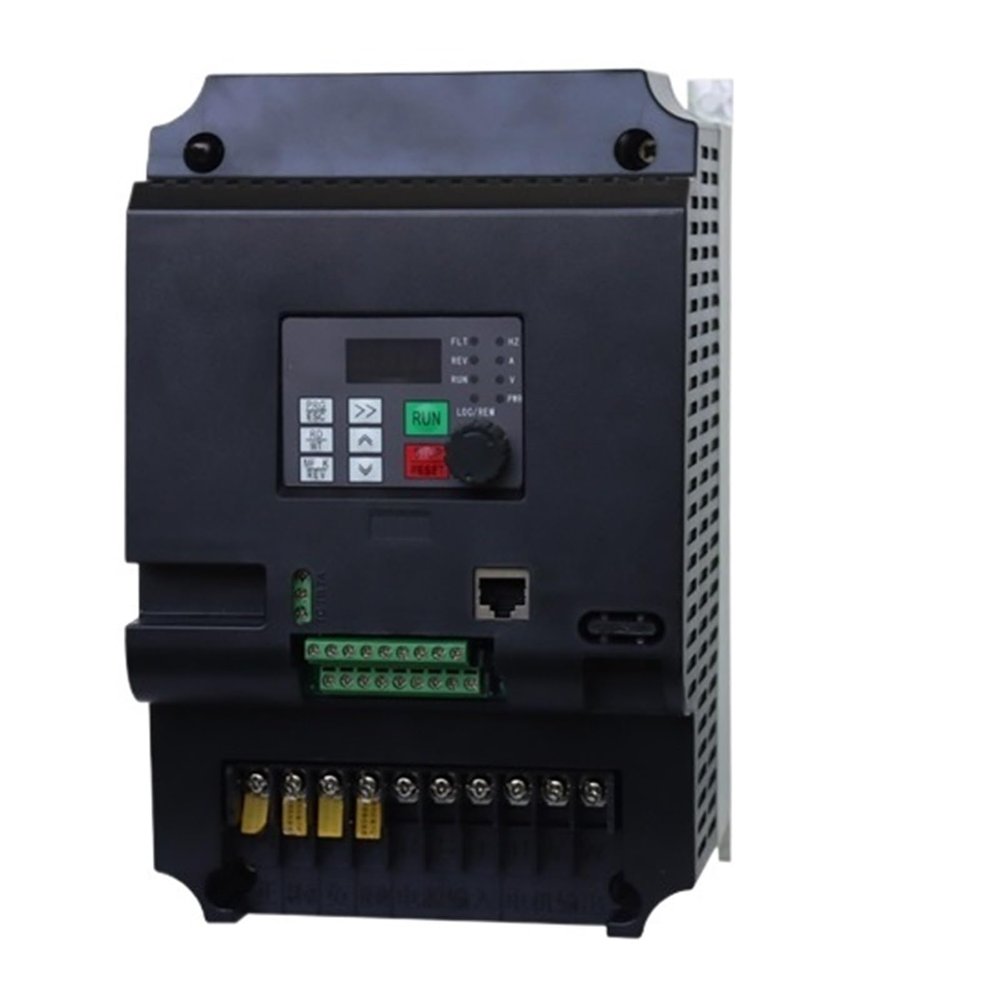

1Pcs Frequency Converter Inverter 7.5KW/11KW/15KW 3 Phase 380v Input and Three Output 50hz/60hz AC Drive VFD for 380V Motor(Mini 380V 5HP 4kw)

Description

• Frequency Inverter
• 1Pcs Frequency Converter inverter 7.5KW/11KW/15KW 3 Phase 380v Input And Three Output 50hz/60hz AC Drive VFD For 380V Motor

Frequency Inverter
Frequency Converter inverter 7.5KW/11KW/15KW 3 Phase 380v Input And Three Output 50hz/60hz AC Drive VFD For 380V Motor
Type selection instructions:
A. Please read the product instructions carefully, choose the type according to the function and power you need, and avoid the damage caused by wrong wiring;
B. ThisFrequency converterdoes not support single-phase motor speed regulation with capacitance.;
C. Speed regulation of three-phase AC motors with six or more stages. Please purchase a converter with higher power than the motor;
D. If you don't know how to choose the type, you can also contact us to give you some suggestions.
wiring diagram
Supplementary Note:
R,S, T are input terminals of three-phase power supply of frequency converter
U, V, W are output terminals of frequency converter, and connected three-phase asynchronous motor.
PRODUCT DETAILS
RECOMMENDED ACCESSORIES
Our product technology
A.Terminal wiring diagram of our products
B.Technical specification for our products
Input and output characteristics
Input voltage range: 220V/380V15%
Input frequency range: 47~63Hz
Output voltage range: 0~rated input voltage
Output frequency range: 0~650Hz
Peripheral interface features
Programmable digital input: 4 inputs
Programmable analog input: AI1: 0~10V input, AI2: 0~+5V or panel potentiometer input
Open collector output: 1 output
Relay output: 1 output
Analog output: 1 output, optional 4~20mA or 0~10V
Technical performance characteristics
Control: PG-free vector control, V/F control
Starting : without PG vector control: 0.5Hz / 150% (SVC)
Speed ratio: no PG vector control: 1: 100
Speed control accuracy: PG vector control: 0.5% of the maximum speed
Carrier frequency: 0.5k ~ 15.0kHz
Features
Frequency setting mode: digital setting, analog setting, serial communication setting, multi-speed, PID setting.
PID
