20-40kA 2P+N 385V 20KA 40KA 60KA 80KA AC 385V DIN Rail-Mounted SPD Low-Voltage Surge Protector Arrester(10KA20KA)

Description

• Surge Protectors
• 20-40kA 2P+N 385V 20KA 40KA 60KA 80KA AC 385V DIN Rail-Mounted SPD Low-Voltage Surge Protector Arrester

Surge Protectors
SPD 20-40kA 2P+N 385V 20kA/40kA 10kA/20kA 30kA/60kA 40kA/80kA AC DIN rail surge suppressor/low voltage surge protector
Application: 2P 10/20kA (yellow)
1. The green/red window color indicates the working status: green = normal, red = abnormal.
2. Maximum continuous operating voltage Uc(V): 385V AC
3. Voltage protection level upgrade (KV): 1.5KV
4. Nominal discharge current In(8/20s)KA: 10kA
5. Maximum discharge current Imax (8/20s) KA: 20kA
Application: 2P 20/40kA (white)
1. The green/red window color indicates the working status: green = normal, red = abnormal.
2. Maximum continuous operating voltage Uc(V): 385V AC
3. Voltage protection level upgrade (KV): 1.8KV
4. Nominal discharge current In(8/20s)KA: 20kA
5. Maximum discharge current Imax (8/20s) KA: 40kA
Application: 2P 30/60kA (Red)
1. The green/red window color indicates the working status: green = normal, red = abnormal.
2. Maximum continuous operating voltage Uc(V): 385V AC
3. Voltage protection level upgrade (KV): 2.2KV
4. Nominal discharge current In(8/20s)KA: 30kA
5. Maximum discharge current Imax (8/20s) KA: 60kA

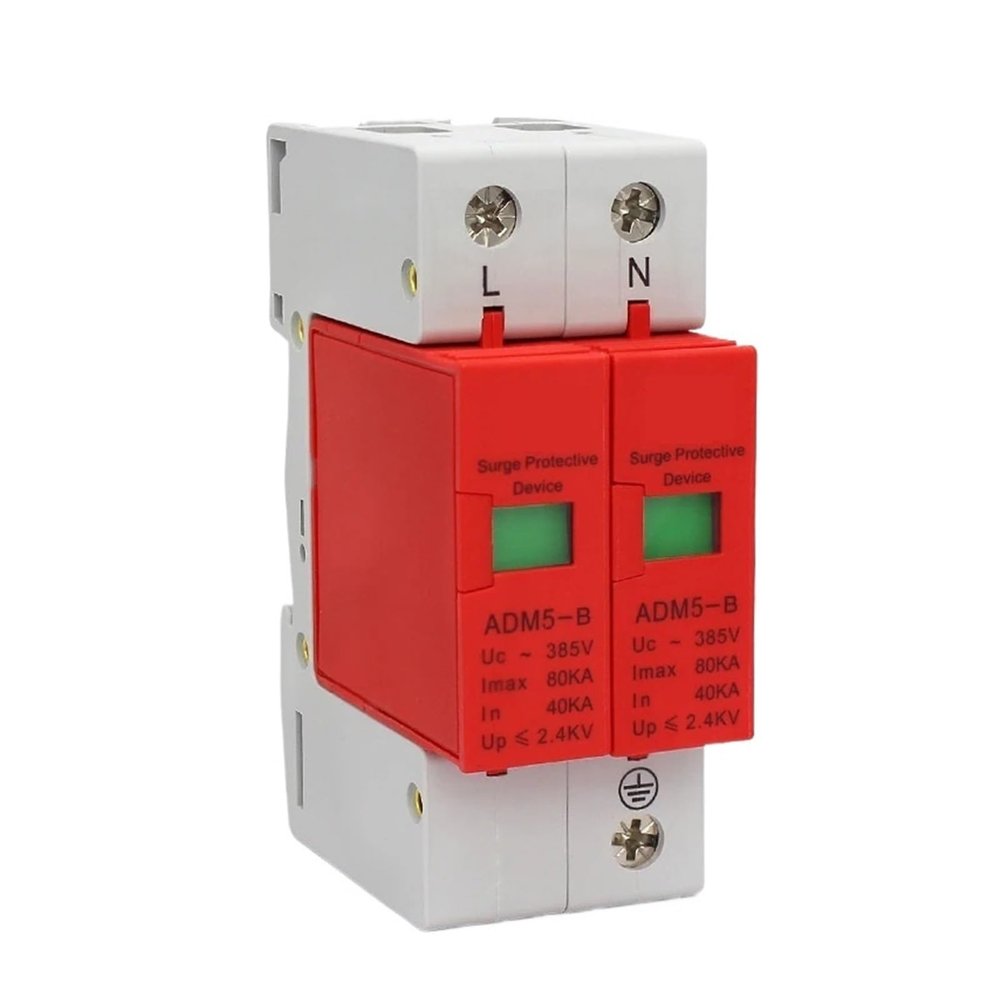

Application: 2P 40/80kA (Red)
1. The green/red window color indicates the working status: green = normal, red = abnormal.
2. Maximum continuous operating voltage Uc(V): 385V AC
3. Voltage protection level upgraded (KV): 2.4KV
4. Nominal discharge current In(8/20s)KA: 40kA
5. Maximum discharge current Imax (8/20s) KA: 80kA
If you have any questions, please leave us a message and we will reply as soon as possible. Thank you!
Maximum input voltage: 385V AC
Rated discharge current: 20kA
Maximum discharge current: 40kA
Voltage protection level (upper): 1.8KV
