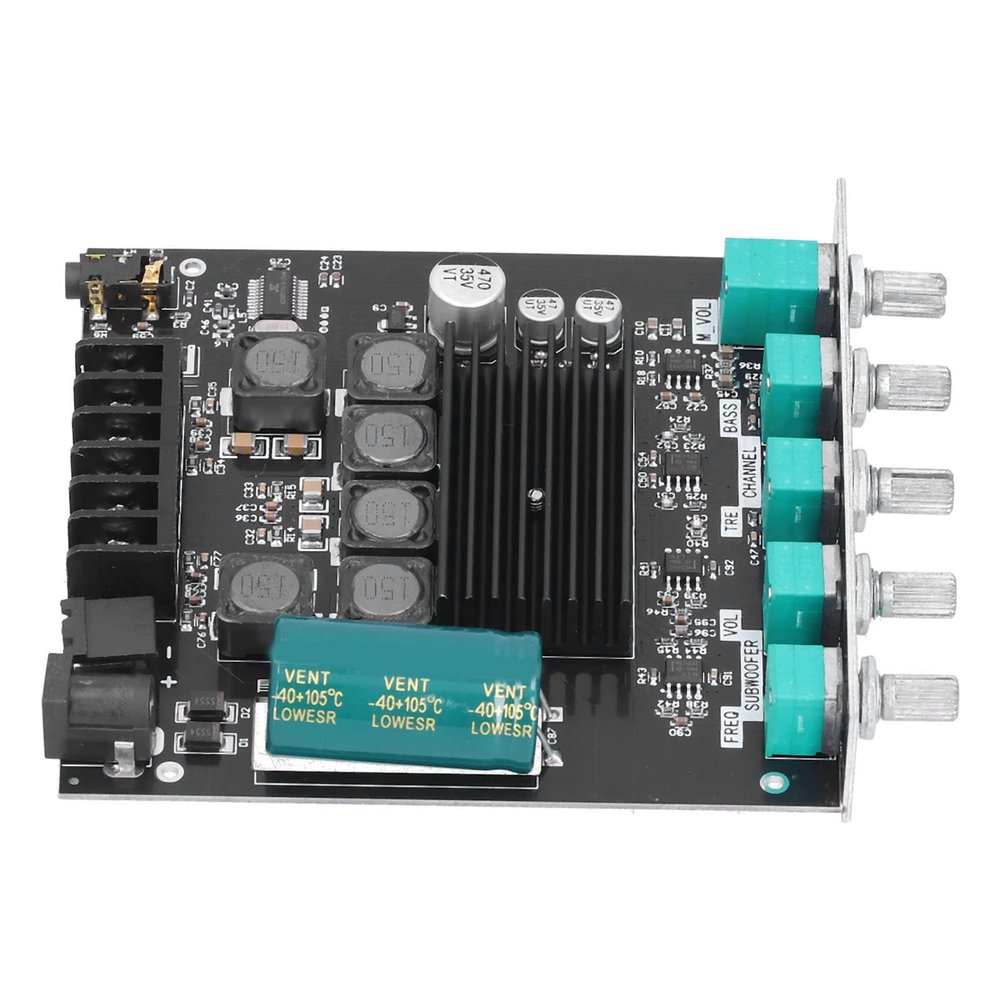

2.1Channel Bluetooth Power Amplifier Board Subwoofer Frequency Control Audio Amplifier Board with Bass, Treble, for DIY Home Speakers, AUX Bluetooth, Compatible with Input Power

Description

• [Customized Sound Control] Featuring bass, treble, subwoofer frequency, and volume adjustments, this amplifier board allows for personalized audio tuning. ideal for a wide range of applications including home theaters and speakers.
• [Multiple Features] Equipped with short circuit, over current, over heating, and anti-reverse protection, this board safeguards against various electrical faults and ensures performance.
• [Powerful 2.1 Channel Output] With a maximum output power of 250w+100w, this amplifier board delivers exceptional sound quality. the antenna and antenna base ensure better reception and high efficiency.
• [ Power Amplifier Board] This board features two audio input methods, aux and bluetooth, utilizing the latest 5.0 bluetooth version for enhanced transmission efficiency and longer range.
• [Robust Design] The copper dc connector and shed type terminal can withstand high currents without heat generation, reducing wire damage. the absence of a dc head makes it compatible with various power interfaces.

Specification:

Item Type: Audio Amplifier Board
Material: PCB
Purpose: Subwoofer Power Amplifier Board
Model: ZK-TB21
Chip: TPA3116D2
Bluetooth Version: 5.0 (Unobstructed 10m / 32.8ft)
Audio Input: AUX + Bluetooth
Number Of Channels: 2.1 Channels
Input Sensitivity: 500mV
Adapted Power Supply Voltage: 12-24V/5A Or More (Do Not Connect 24V Battery Pack)
Speaker: 20-100W, 4-8
Output Power: Maximum 50W (Left And Right Channel), Maximum 100W (Subwoofer)
Mechanism: Overvoltage, Undervoltage, Overheating, DC Detection, Short Circuit

Package List:
1 x Amplifier Board Module
2 x Acrylic Board
1 x Screwdriver
9 x Screw
4 x Brass Connecting Rod
4 x Brass Terminal
5 x Knob
1 x Wire Input Socket

Note:
1. The power switch on the board is a standby switch. After the switch is turned off, the machine is in a lowpower standby state. Turn off the power completely or unplug the DC plug on the machine for a long time.
2. Please use a power adapter with sufficient power to connect to the power amplifier board, otherwise the sound will be distorted.
3. If the audio input is sufficient and the power supply voltage/current is sufficient, there is enough output power. The higher the power supply voltage, the greater the relative power. Speakers with different impedances will have different output . In the case of sufficient voltage and current, the greater the ohm of the speaker, the smaller the relative sound power. Please make sure that the power of the adapter is greater than the actual working power of the amplifier.
