4G LTE IoT Projects GPS Hats Cooling Fan Expansion Board for PI5 PI4B RasPi RPI Raspberry Pi 3 4 Model B 5 Development Board Accesorios Set Breakout Shield Complete Starter Kit 2GB 4GB 8GB 16GB RAM

Description

• Note: Raspberry Pi board is not included.

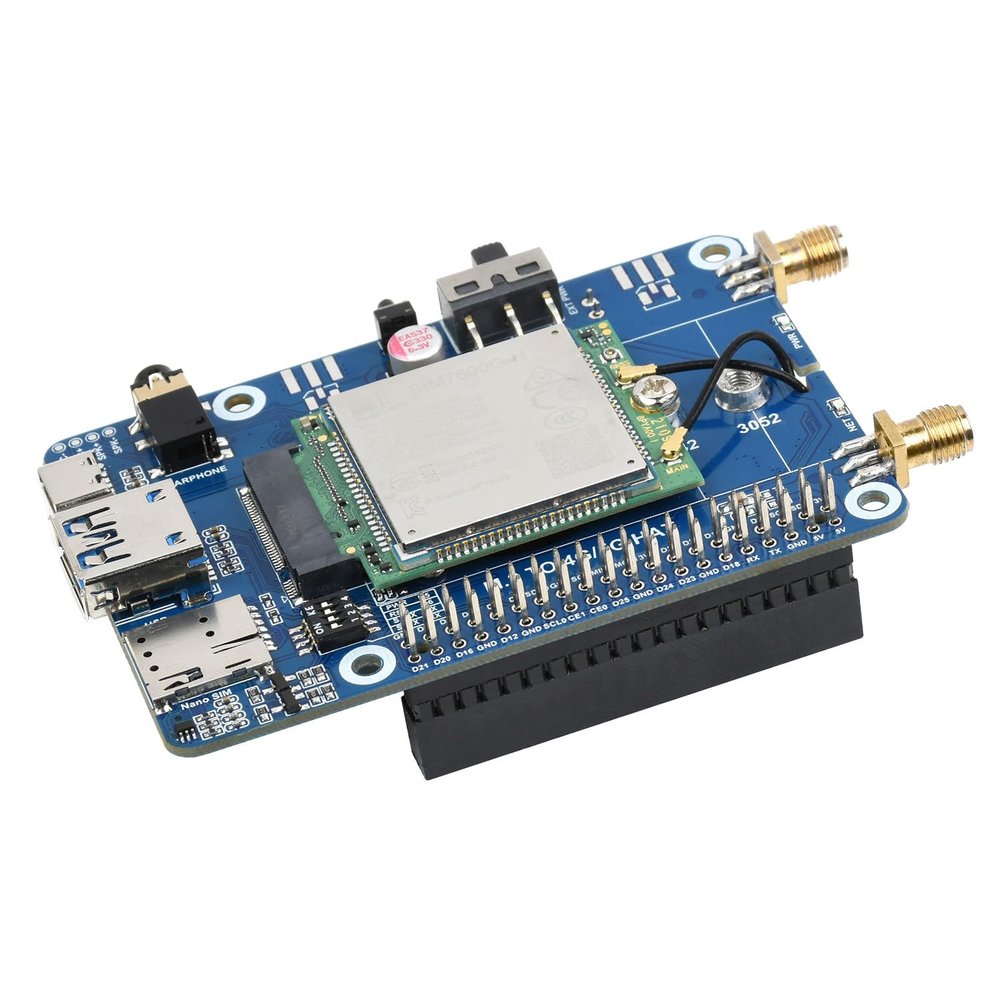

• This is an expansion board with 4G communication and GNSS satellite positioning functions. It has high-speed LTE CAT4 and frequency bands compatible with all countries around the world. It can be easily connected to computers, Raspberry Pi and other motherboards to achieve 4G high-speed Internet access, cloud platform communication, calls, text messages and global GNSS positioning.
• This expansion board is equipped with a high-speed cooling fan, which can dissipate the heat of both Raspberry Pi and 4G module at the same time and achieve excellent heat dissipation effect. In addition, this 4G module is removable, so you can use it more flexibly. The design of this 4G expansion board is even better.
• The product test code can be found in the WIKI English manual.
• WIKI English manual : waveshare.com/wiki/SIM7600G-H-M2_4G_HAT

Product Features
Supports dial-up Internet access, phone calls, SMS, TCP, UDP, MQTT, HTTP(S), FTP(S) and other functions.
Supports GPS, Beidou, Glonass, GALILEO, QZSS, LBS base station positioning.
Onboard USB 3.1 interface, backward compatible with USB 2.0, can be used to connect to computers and Raspberry Pi motherboards for high-speed 4G Internet access.
Onboard UART, PWR and RST control pins, built-in level conversion, support DIP switch enable, compatible with Raspberry Pi or Arduino and other main controllers.
Onboard USB Type-C interface, which can be enabled by switch, can be used to add power to the module separately, so as to connect more loads, and the power supply is stable and flexible.
Onboard power switch, reset button and LED indicator light, convenient for controlling the module power on and off and viewing the operating status.
There are 4 reserved SMA to IPEX antenna conversion interfaces, 2 of which are soldered by default, making the antenna easy to install and the SMA antenna position can be flexibly customized.
The onboard audio interface and audio decoding chip can be used for voice operations such as making calls.
The onboard high-efficiency power supply circuit can output up to 3A current.
