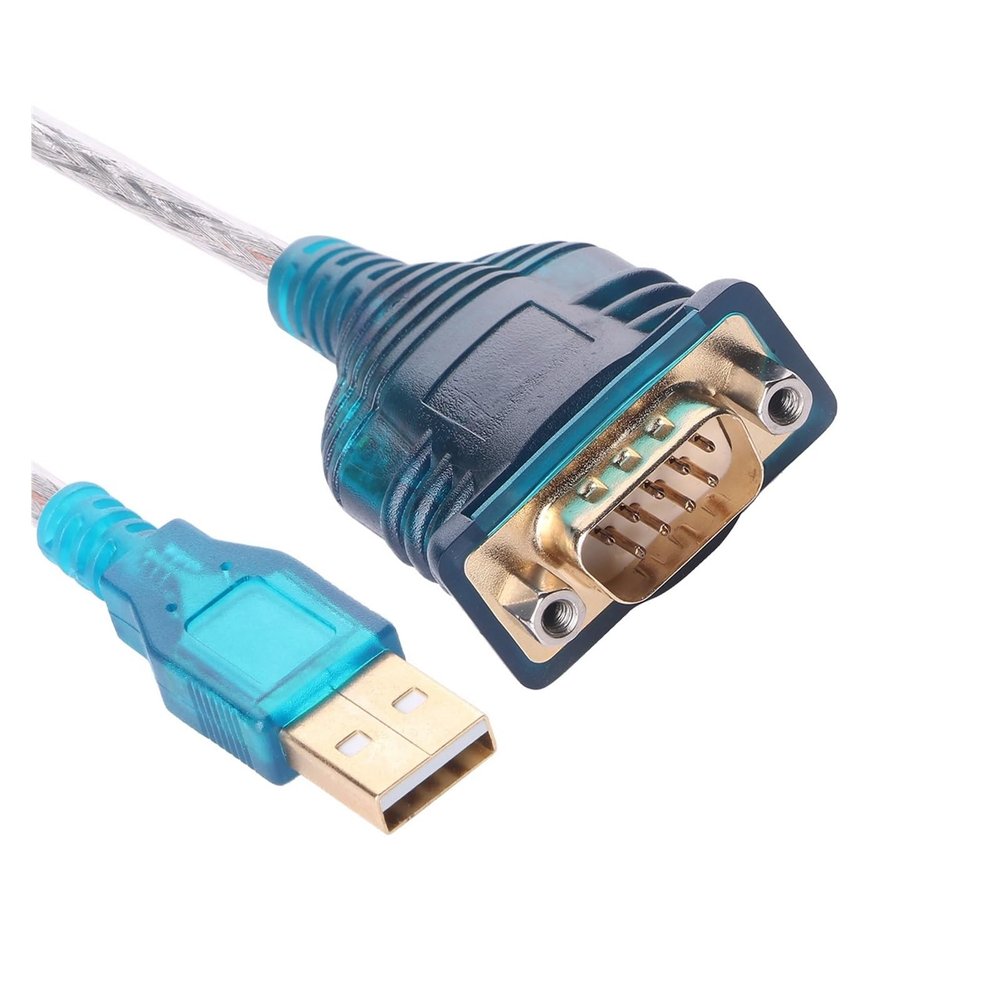

ACGTUY USB to RS232 Serial Cable Converter PDA DB9 Male 9 Pin Cable Adapter F/;TD/;1 Compatible with The Win 11 10 7 8.1 XP Vista OS Linux

Description

• Single chip USB to asynchronous serial data transfer interface.
• Entire USB protocol handled on the chip. No USB specific firmware programming required.
• Fully integrated 1024 bit EEPROM storing device descriptors and CBUS I/O configuration.
• Fully integrated USB termination resistors.
• Fully integrated clock generation with no external crystal required plus optional clock output selection enabling a glue-less interface to external MCU or FPGA.

USB to RS232 COM port serial DB9 9 Pin converter cable
1.5M/3M Optional;
F/;TD/;1 industrial grade chip, stable signal transmission;
light prompts txd and rxd signal;
VIRTUAL COM PORT (VCP) Drivers are available compatible with the the following Operating Systems (OS):
- Windows 11,10,8.1,8,Vista,7,XP
- Windows 98, 98SE, ME, 2000, - Server 2003, XP, Server 2008 and server 2012 R2
- Windows XP Embedded
- Windows CE 4.2, 5.0 and 6.0
- OS 8/9, OS-X
- Linux 2.4 and greater - (J2xx / D2xx only)
See the following website link compatible with the the full driver support list including OS versions and OS.
https://ftdichip.com/drivers/
Virtual COM Port (VCP) drivers cause the USB device to appear as an additional COM port available to the PC. Application software can access the USB device in the same way as it would access a standard COM port.
Please also refer to the Installation Guides documents compatible with the details on how to install the drivers.
https://ftdichip.com/document/installation-guides/
About ChipFT232RL
The FT232R is a USB to serial UART interface with the following advanced features:
Single chip USB to asynchronous serial data transfer interface.
Entire USB protocol handled on the chip. No USB specific firmware programming required.
Fully integrated 1024 bit EEPROM storing device descriptors and CBUS I/O configuration.
Fully integrated USB termination resistors.
Fully integrated clock generation with no external crystal required plus optional clock output selection enabling a glue-less interface to external MCU or FPGA.
Data transfer rates from 300 baud to 3 Mbaud(RS422, RS485, RS232) at TTL levels.
128 byte receive buffer and 256 byte transmit buffer utilising buffer smoothing technology to allow compatible with the high data throughput.
F/;TD/;1's royalty-free Virtual Com Port (VCP) and Direct (D2XX) drivers the requirement compatible with the USB driver
