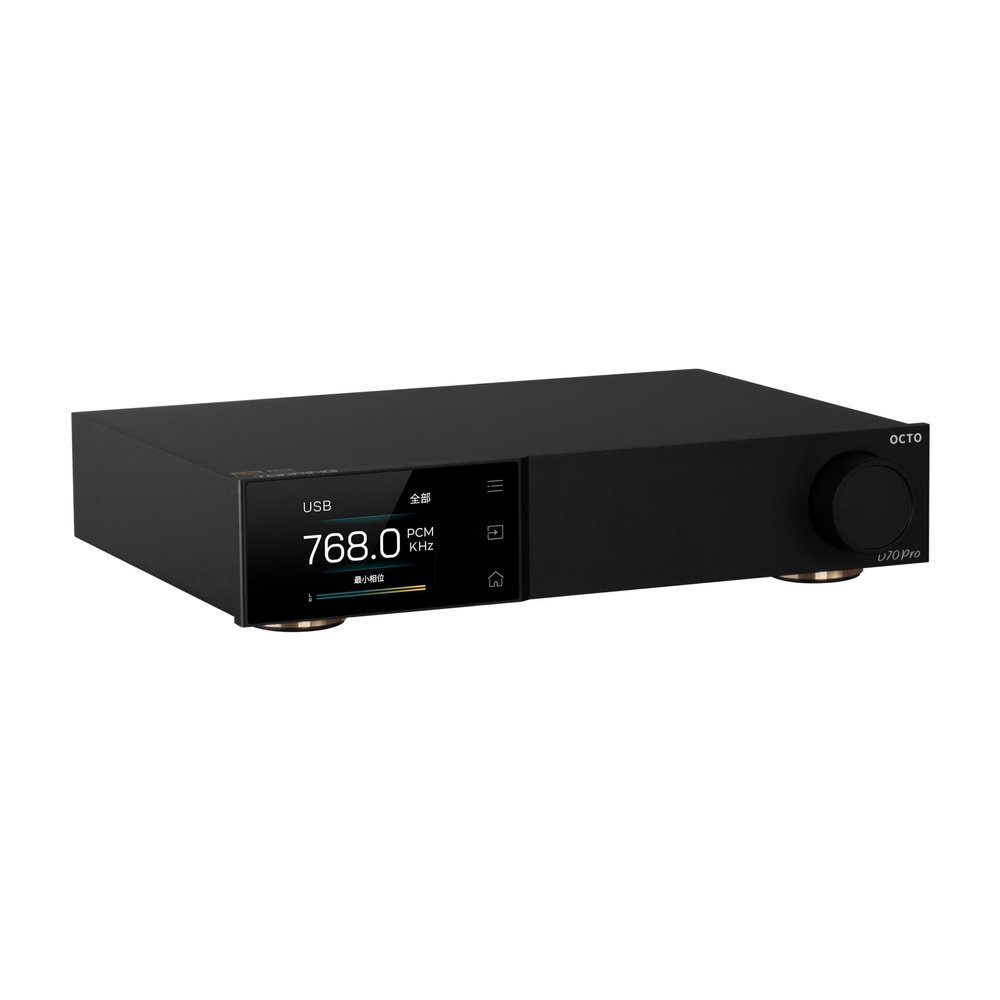

Auinshifiman Topping D70Pro OCTO HiFi DAC 8X CS43198 Chip Bluetooth 5.1 XMOS XU316 PCM768kHz/32bit & DSD512 preamplifier RCA/XLR Output Optical/USB/Coaxial/AES/EBU/BT Input USB Audio DAC (Black)

Description

• 8-core driverD70 Pro OCTO is equipped with 8 Cirrus Logic flagship chips-CS43198. D70 ProOCTO also supports audio decoding up to PCM 768 kHz/32-bit and DSD512, THD+N<0.00007%, SNR 134dB, DNR134dB brings you a more superior music experienc
• Bluetooth 5.1 transmissionBluetooth DAC supports LDAC/aptX-Adaptive/aptXHD/aptX/AAC/SBC audio encoding, which can transmit high-resolution files, allowing high-quality audio to be transmitted via Bluetooth, and enjoy clear, high-fidelity audio streams from Bluetooth devices without compromising quality. For a better audio experience.
• Color jumps out to greet youThe display of the playback information, FFT, and VU of the Audio DAC can be switched according to your requirements. The colors dance and change, reflecting the emotional depth of each track. Equipped with a full-color screen and three touch buttons. The experience has changed since then.
• Freely switch output modeDesktop DAC supports RCA single-ended and XLR balanced output, choose from a variety of output options, users can select specific channels or simultaneous output to perfectly match your audio settings, in addition, it can be used as a preamplifier and supports independent volume memory.
• Plug and PlayUSB DAC has wide compatibility and can be used on multiple operating systems such as Windows 10, Windows 11, MAC, Linux, and iOSAndroid. Just connect to the audio source and it can be used immediately. It only requires driver installation and setup of ASIO applications on Windows systems. The USB hardware is based on XMOSXU316 and Thesycon customized driver (for Windows, no driver required for other systems), which is stable and reliable.

Product typeDAC
DAC Chip8x CS43198
USB interfaceXMOS XU316
Input1x Optical Toslink / 1x USB-B / 1x Coaxial SPDIF / 1x AES/EBU / Bluetooth
Supported sampling ratesUSB: PCM Up to 32bit 768kHz / DSD Native Up to DSD512 / DSD DoP Up to DSD256
Coaxial, Optical, AES: PCM Up to 24bit 192kHz
Supported Bluetooth codecsBluetooth : SBC, ACC, LDAC,aptX, aptX HD, aptX Adaptative
Ouput1x XLR balanced / 1x RCA unbalanced
THD+NRCA : <0.00008% @ 1kHz A-Weighted / XLR : <0.00007% @ 1kHz A-Weighted
THD @ 90Bw (Not Weighted)RCA : <0.0004% @ 20-20kHz / XLR : <0.0002% @ 20-20kHz
SNRRCA : 128dB @ 1kHz A-Weighted / XLR : 134dB @ 1kHz A-Weighted
Dynamic RangeRCA : 128dB @ 1kHz A-Weighted / XLR : 1334dB @ 1kHz A-Weighted
Frquency responseRCA : 20Hz - 20kHz (+/-0.5dB) / 20Hz - 40kHz (+/-0.2dB) / XLR : 20Hz - 20kHz (+/-0.2dB) / 20Hz - 40kHz (+/-0.2dB) Output voltageRCA : 2.1Vrms @ 0dBFS (4V Mode) / 2.6Vrms @ 0dBFS (5V Mode ) / XLR : 4.2Vrms @ 0dBFS (4V Mode) / 5.2Vrms @ 0dBFS (5V Mode )
Noise RCA : <1.0Vrms / XLR : <1.0Vrms
Channel crosstalkRCA : -124 dB @ 1Khz / XLR : -149 dB @ 1Khz
Channel balanceRCA : 0.3dB / XLR : 0.3dB
Output impedanceRCA : 50 Ohms / XLR : 100 Ohms
Power supply100V-220V AC 50Hz/60Hz via IEC (cable supplied)
Dimensions22.2 x 17.6 x 4.8cm
Weight1.9kg
Package1x D70 PRO OCTO / 1x IR remote control / 1x USB cable / 1x Power cable / 1x Bluetooth Antenna / 1x Manual / 1x Warranty card
