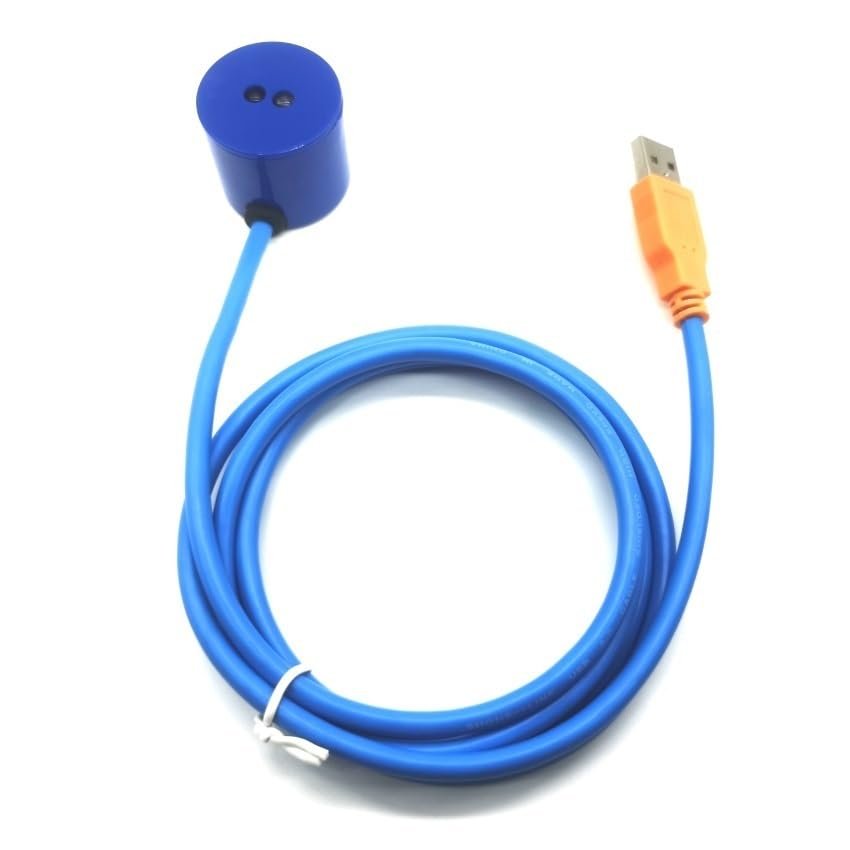

DUYHGS KWh Meter Infrared Reading Head IEC1107 CP2102 USB to Optical Interface IR Infrared ma~netic Adapter STS Energy IEC62056(Cable Length 1.4m)

Description

• KWh Meter Infrared Reading Head IEC1107 CP2102 USB to Optical interface IR Infrared ma~netic Adapter STS Energy IEC62056

MY001-B(CP2102) to IR converter /optical probe is used Fit For local serial communication using infrared communication between static smart electricity meters (meters or other equipment) with optical interface on one side and a PC or HHU (Hand-Held Units) with USB2.0 interface on the other side. on the other. The converter/optical probe parameters fulfill all technical requirements on data transmission in accordance with the standard IEC62056-21 (in the past IEC1107) and the set of users're-quirements DLMS/COSEM. The converter/optical probe has a infrared transmit and a infrared receive diode. The optical probe is fitted with a permanent ma~net, which ensures that the probe remains attached on the meter during data collection. Data is transferred via an infrared light using serial two-way communication.
FEATURES
*This probe are intended Fit For both-way serial communication with the meter via infrared.
*Compatible with IEC meters,MID meters.
*Compatible with DLMS/COSEM protocol.
*USB2.0 interface andSilicon Labs CP2102USB Chip
*Support Windows XP/ 7/8/10/11 and /Linux/ .
*This probe is attached to smart meter by the permanent ma~net.
TECHNICAL DATA
*Communication equipment: PC (, HHU - Hand-Held Units) with USB2.0 interface
*ma~netic Cohesion forcethe steel plate) :more than 15 N
* Interface: USB2.0 ,half-duplex,male or female ports are optional.
*Transmission speed [Bd] : 300, 600, 1200, 2400, 4800, 9600, 19200
*Transmission wave lenght[nm]: 940nm
*Power supply : Via USB2.0
*Standard: According to ISO/IEC 1107,ISO/IEC62056,DLMS/COSEM
*Cable length: 1.4m
*Working temperature range: - 20 C to + 50 C
*Weight [kg] : about 0.15

When you want to connect to your mobile phone or terminal device through the TYPE-C interface, in addition to the optical probe, you need to purchase the following picture of the type-C to USB2.0 connector.
