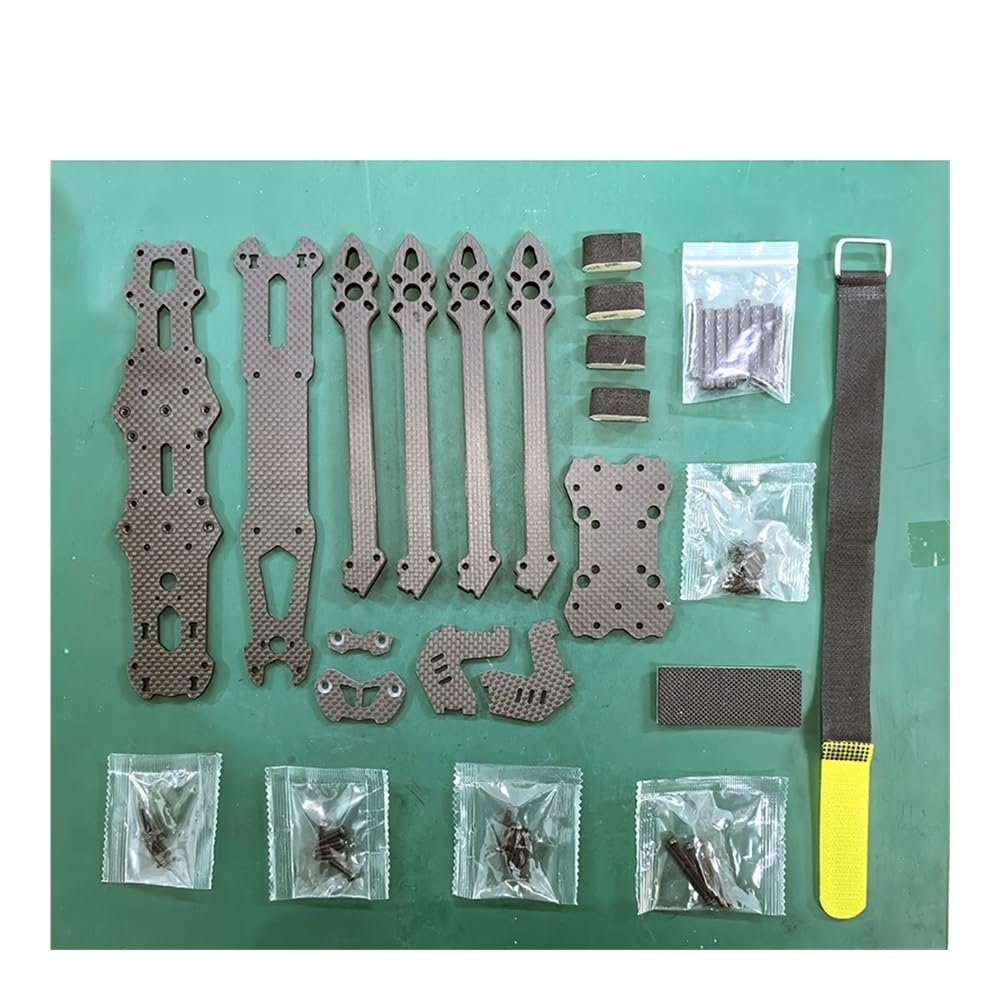

Fit for FPV V2 7inch 295mm / 8inch 367mm / 9inch 387mm / 10inch 427mm 3K Carbon Fiber Frame(MARK4 V2 7inch)

Description

• High strength and lightweight: The frame is made of 3K carbon fiber material, which has a very high strength to weight ratio, making the frame both sturdy and lightweight. This is crucial for drones as it can improve flight stability, while reducing overall weight and extending flight time.
• Diversified size options: Provides multiple size options such as 7 inches 295 millimeters, 8 inches 367 millimeters, 9 inches 387 millimeters, and 10 inches 427 millimeters to meet the needs and flight scenarios of different users. This diversity allows users to choose the appropriate frame size based on their flight needs and preferences.
• Excellent durability: Carbon fiber materials have excellent wear resistance, corrosion resistance, and resistance, which means that the frame can maintain a long service life even in harsh flight environments. For users who frequently engage in outdoor or cross-country flights, this is an important advantage.
• Easy to assemble and upgrade: Due to its modular design, this framework is easy to assemble and upgrade. Users can add or replace components such as motors, electronic speed controllers (ESC), etc. according to their own needs to achieve more efficient flight performance. This flexibility makes the framework an ideal choice for DIY drone enthusiasts.
• Good flight stability: The rigidity and strength of the carbon fiber frame help maintain the flight stability of the drone. A stable framework can reduce vibration and shaking, improve flight accuracy and during high-speed flight or complex maneuvers. This is an important advantage for users who pursue a high-quality flying experience.

Description:
Model: V2 7inch
Wheelbase: 295mm
Size: 230.35mm * 278.52mm
Bottom plate thickness: 3.0mm
Medium plate thickness: 3.0mm
Upper plate thickness: 2.0mm
Arm thickness: 6.0mm
Connecting plate: 2.0mm
Camera side plate thickness: 2.5mm
Camera installation hole spacing: 19mm
Image transmission installation hole spacing: 20*20mm & 305305mm
Flight control installation hole spacing 2020mm 305305mm
Inner space height 35mm
Motor installation hole position 16*16mm & 1919mm
Model V2 8inch
Wheelbase 367mm
Weight about 214g
Thickness of bottom plate: 3mm
Thickness of top plate: 2mm
Thickness of camera arm: 6mm
Camera side panel thickness: 2.5mm
Camera mounting hole spacing: 19 mm
Mapping mounting hole spacing 20*20mm & 305305mm
Flight Control Mounting Pitch: 30.5*30.5mm
Inner space height: 35mm
Motor mounting hole pitch: 16*16mm & 1919mm
Model V2 9inch
Wheelbase 387mm
Weight: about 220g
Thickness of bottom plate: 3mm
Thickness of top plate: 2mm
Thickness of camera arm: 6mm
Camera side panel thickness: 2.5mm
Camera mounting hole spacing: 19 mm
Mapping mounting hole spacing 20*20mm & 305305mm
Flight Control Mounting Pitch: 30.5*30.5mm
Inner space height: 35mm
Motor mounting hole pitch: 16*16mm & 1919mm
Model V2 10inch
Wheelbase 427mm
Weight: about 227g
Thickness of bottom plate: 3mm
Thickness of top plate: 2mm
Thickness of camera arm: 6mm
Camera side panel thickness: 2.5mm
Camera mounting hole spacing: 19 mm
Mapping mounting hole spacing 20*20mm & 305305mm
Flight Control Mounting Pitch: 30.5*30.5mm
Inner space height: 35mm
Motor mounting hole pitch: 16*16mm & 1919mm
==========
Is Electric : No battery
Quantity : 1 pcs
Wheelbase : Screws
Size : V2 8inch Frame
Technical parameters : value 2
Model Number : HTX078
