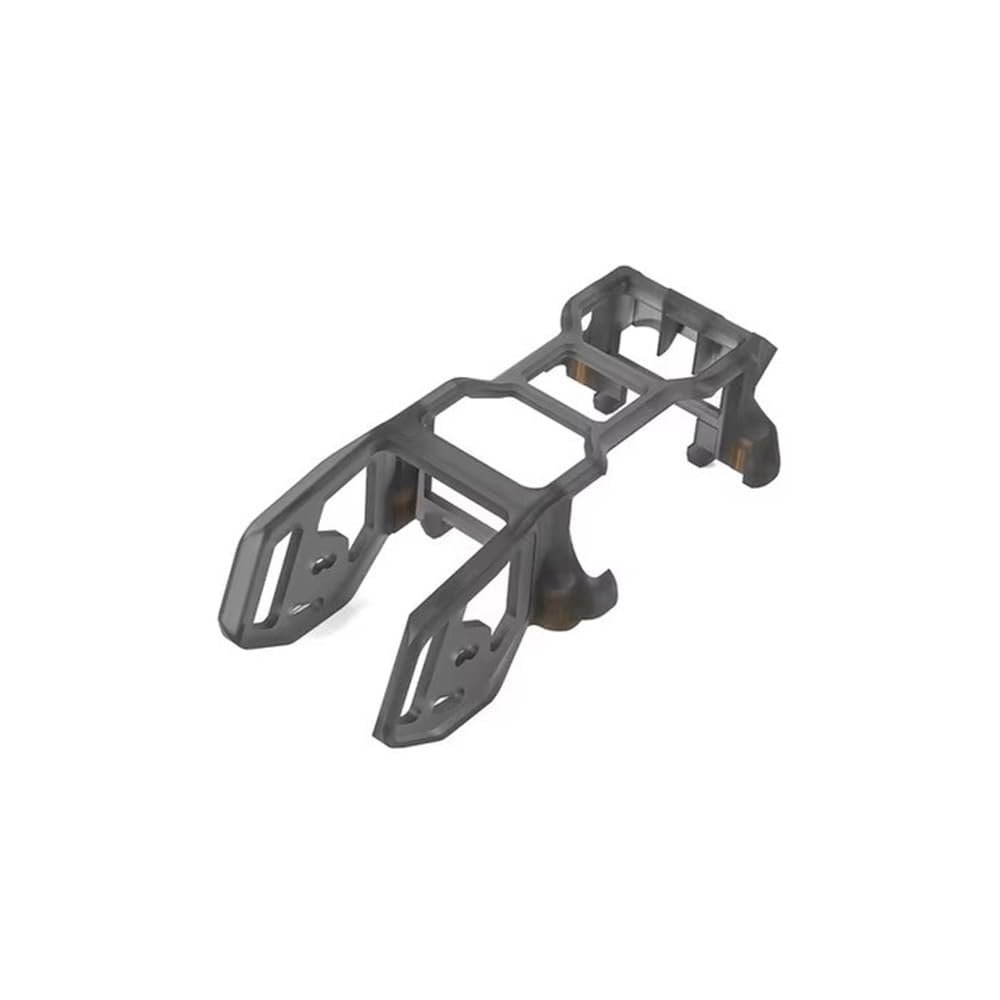

Fit for O3 Air Unit Pavo20 Frame RC Brushless Frame/HD VTX Bracket Mount 90mm Wheelbase Drone(Gary Mount only)

Description

• Compact structure: The 90mm wheelbase drone frame is designed to be compact, effectively saving space and making the drone more compact, lightweight, and easy to carry and operate.
• Easy installation: RC brushless frame brackets are usually designed with standardized installation interfaces and fixing methods, making the installation process simple and fast, without the need for complex tools or operating steps.
• Strong stability: The brushless frame bracket is made of high-quality materials, with good rigidity and stability, which can effectively support various components of the drone, ensuring stability and during flight.
• Good compatibility: The framework bracket design has strong universality and can be compatible with various 90mm wheelbase drone components and accessories, making it convenient for users to upgrade and modify.
• Excellent dissipation performance: The brushless motor generates a certain amount of during operation, and the frame bracket is designed with a reasonable dissipation structure to effectively dissipate the generated by the motor, ensuring long-term stable operation of the motor.

Item: Fit For Pavo20 Brushless Whoop Frame
Wheelbase: 90mm
Material: PA12/PP
Weight: 26.7g, 13.8g, 4.1g
Color: Black/Blue/Transparent Grey
Plate Thickness: 2mm
Camera: 19mm/20mm
Camera Filter: Support
FC Mount: 2626mm, suitable for conventional whoop FC
Motor Mount: 4-M2-9mm
Battery Slot Width: 20mm
Recommend Parts
Fit For FC&ESC F4 1S 12A AIO FC V3 F4 23S 20A AIO FC V1
Motor 1103 8000kv8500kv/11000kv
Propellers: GF 2015-2B, GF 2020-4B
Battery: 2S~4S 450mAh~650mAh
VTX: Fit For O3,
Filter: ND filter
Package
Item:Fit For Pavo20 Brushless Whoop Frame | With HD VTX Bracket
1 * Fit For Pavo20 Plate
1 * 20*20mm VTX Mounting Plate
1 * Fit For Pavo20 Whoop Duct
1 * Fit For Pavo20 VTX Bracket
1 * 130mm Battery Strap
2 * Battery Anti-Slip Mat
2 * 5.8g
8 * M2 Nut
10 * Rubber Damper
6 * M2*10 Screws
6 * M2*3 Screws
4 * M2*14 Screws
4 * M2*15 Screws
