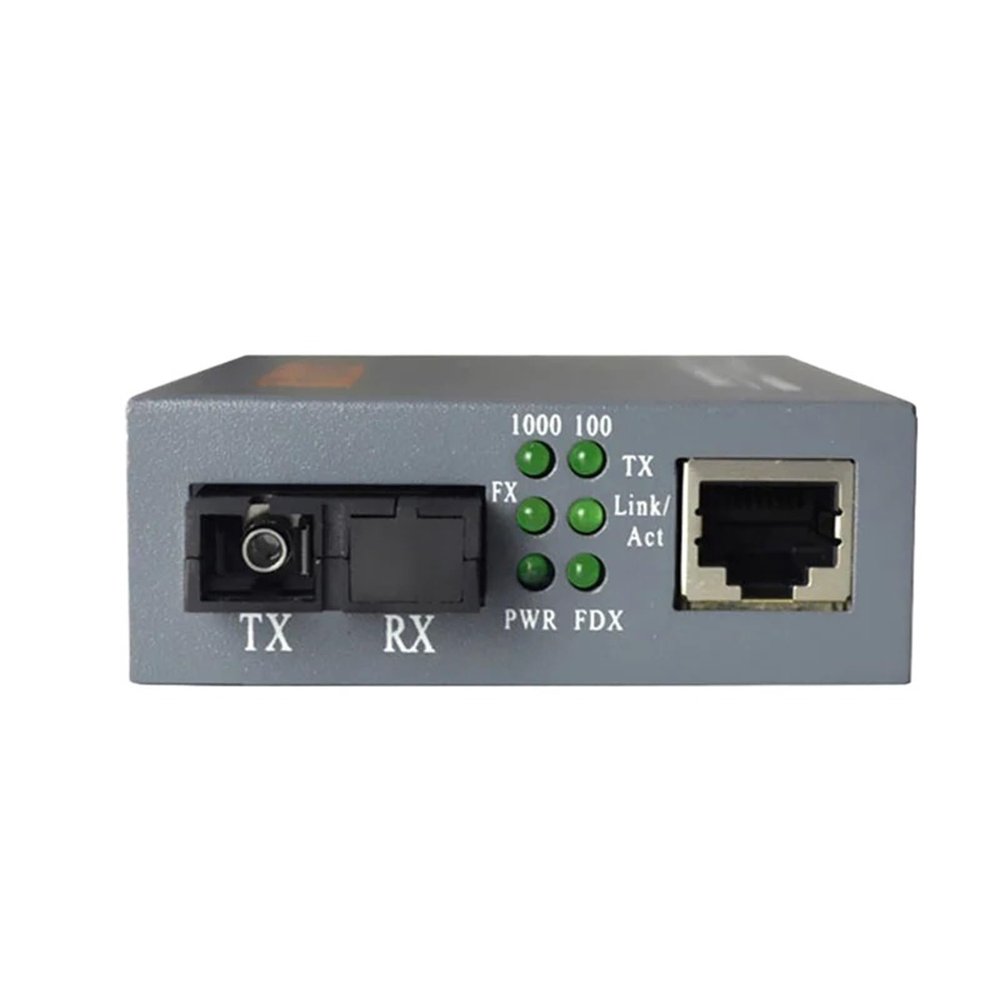

Gigabit Fiber Optical Media Converter HTB-GS-03 1000Mbps Single SC Port External Power Supply Transmitter(3Pair EU Plug)

Description

• Video Converters

Video Converters
Please Note :
1.Default with one piece1310nm A side and one piece 1550nm B Side .
2.Default with EU power adapter.UK,US,BR,AU standards can be provided as request.
3.Bulk order please contact with us , we are have the best for you.
Overview
The Gigabit Ethernet Media Converters with external power supply are designed to transmit and receive 10/100/1000Mbps data over optical fiber. The electrical interface will Auto-Negotiate to a 100Mbps or 1000Mbps Ethernet rate without any adjustments. The optical interface operates at a 1000Mbps Ethernet rate. Both are environmentally hardened to operate in extreme temperatures. LED indicators are provided for confirming equipment operating status.
Main Features
1.Support the switch between 1000Base-T and 1000Base-SX/LX
2.1*1.25Gbps full-duplex fiber port and 1*1000M Ethernet port
3.Each port has the complete LED Indicator light for installation, commissioning and maintenance
4.Support 9K Jumbo Packet
5.Support direct forwarding mode, which supportless time delay
6.Lowpower consumption, only 1.5W in full load condition
7.Support isolation protection function, good data security
8.Small size, suitable for installation in various places
9.Auto-negotiationlow power consumption chips to ensure verylongtime and stable operation
Specifications
Standard
IEEE802.310BASE-TEthernet
IEEE802.3u100BASE-TX/FXFast-Ethernet
IEEE802.3z/ab 1000BASE-FX/TX 100M-Ethernet
EEE802.3x
RJ-45Port
Auto-MDI/MDIX
FiberPort
FiberType
Wavelength
Send-Power
SC
1310/1550nm
20dBm(min.)0dBm(max.)
FrequencyOffset
125,000bps(or100ppm)
MTU
Morethan9036bytes
Dimensions(WxDxH)
94x71x27mm(Externalpower)
InputVoltage
DC5V2A(Externalpowerinput:AC100V-AC240V/50-60HZ)
OperationTemperature
0C~70C
StoreTemperature
-40C~85C
Humidity
5%~95%non-condensing
Weight
0.5kg/Pair(ExternalPower)
==========
Wireless function : No
High-concerned chemical : None
Size : 20*10*5
Fiber Type : Single Mode
Compatible : ,H3C,
Connector Type : SC/UPC
Item Length : 20m
Model Number : HTB-GS-03
