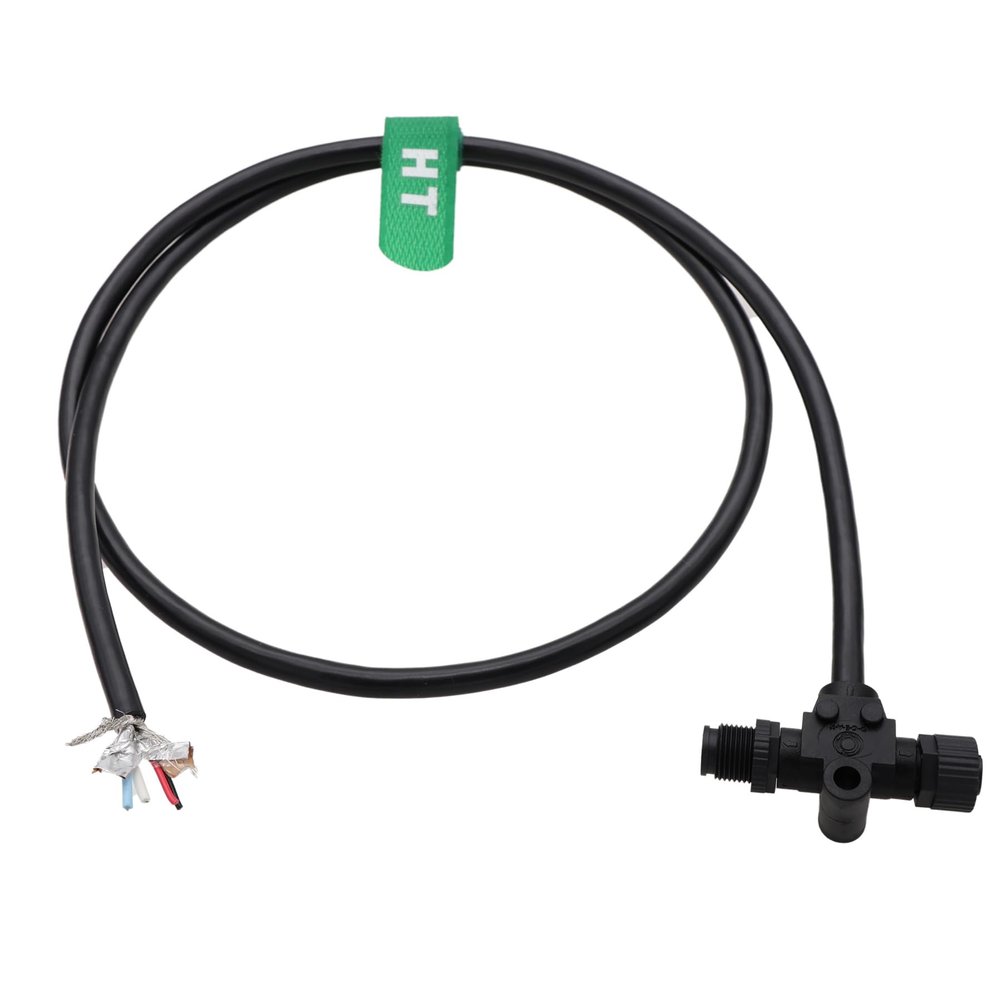

HangTon NMEA 2000 Network Electrical Power Drop Cable, T-Piece Tee Connector 5pin for Marine Boat, Lowrance, Garmin, Airmar, Maretron, Raymarine, Simrad, Navico, 12/24V 4A, 1m

Description

• 1 meter cable to connect a NMEA 2000 N2K marine electronics device to a Tee connector T-piece, or to the backbone main cable, for network communication and power supply
• Drop branch cable connects an individual NMEA 20000 electronic device instrument to the backbone T-connector T-piece, brings the data from each device to the main cable or power the backbone network through 12/24V power supply
• Compatible for Lowrance, Garmin, Airmar, Maretron, Raymarine, Simrad, Navico, Yacht, KUS, BG and Actisense NMEA 2000 network cables connectors. For marine boat vessel navy ship devices, marine engine, GPS map chartplotter, GPS antenna receiver, KMG Multi-function display, speed depth wind transducer, fuel sensor, autopilot display, marine gauge instruments, speedometer, tachometer, universal analog converter, level sender, diagnostic tool, 12/24V power source
• Micro DeviceNet 5-pin male to 5-pin female T-piece Tee connector to bare wire, threaded locking. Stable connection, easy installation, IP67 waterproof, perfect for marine use. Rated voltage and current 250V 4A max
• 24AWGx2P + 22AWGx2P and shielded wire, pin1 to pin5 contact is soldered each to shield, red, black, white, blue wire. It provides better network reliability and reduce voltage drop for backbone connections.

We make custom cables.
The NMEA 2000 adopted the DeviceNet standard for the cables and connectors, and is robust system and can withstand the harsh conditions of the marine environment.
NMEA 2000 cable enables various devices on a boat to communicate and share information on a single network.
Controller Area Network (CAN) bus standard and transmits data at 250 kBps.
It can also be used for marine electronics, controlling autopilots, engine and tank level monitoring, controlling media devices, automotive automobiles, transport machinery and agricultural equipment.
