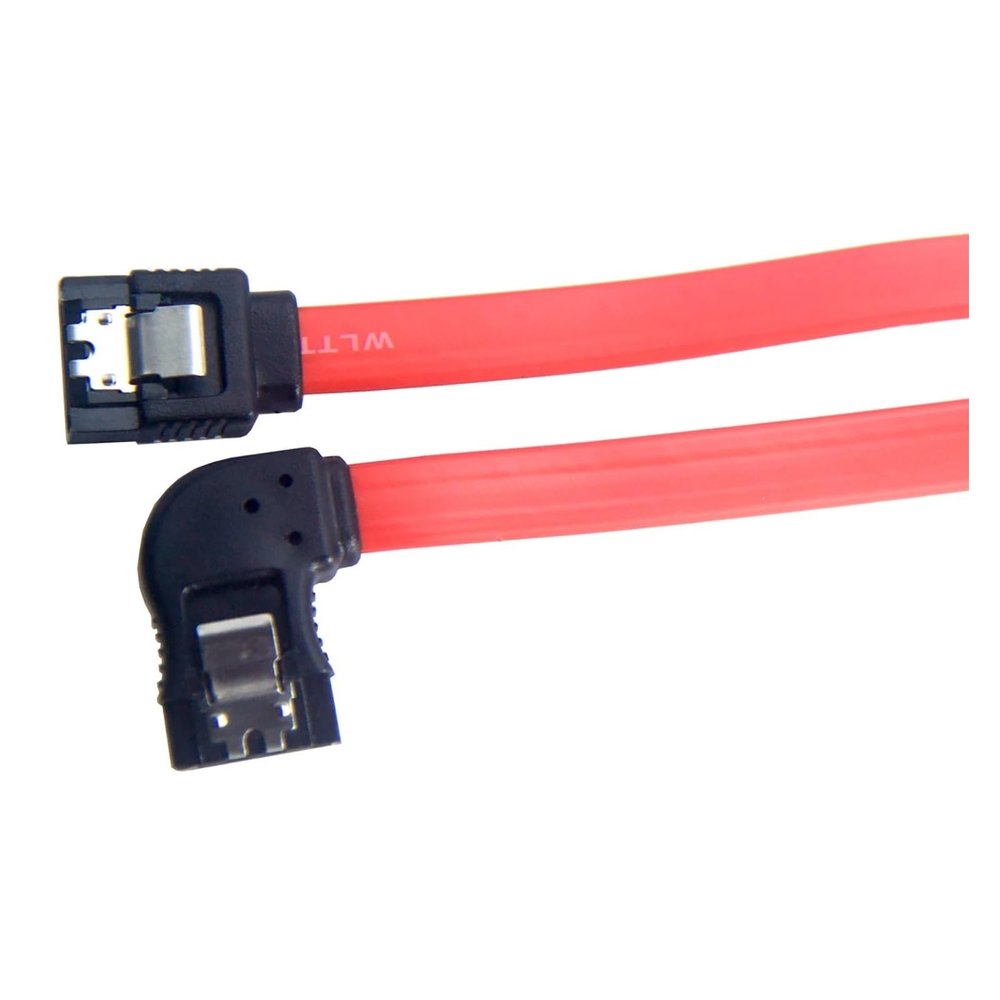

HYAGBCOP 30cm SATA III Cables 6Gbps S Left Side Angle with Locking Latch Cable

Description

• Compliance:Our cables adhere to and other standards, making them a responsible choice.
• Quality Materials:Crafted with 26AWG tinned copper and a durable black overmold, our cables offer reliable performance.
• Versatile Compatibility:Designed for a range of applications, our SATA cables are ideal for , workstations, and servers.
• Robust Connectivity:Our cables feature a locking latch for a secure connection, pre/ven/ting accidental disconnections.
• Sata Cable Angle|Sata Cable 45 Degree|High-Speed Data Transfer:Transfer data at up to 6Gbps with our SATA III cables, ensuring quick and efficient data flow.

Product Description:SATA III Cables 6Gbps s left Side Angle with Locking Latch cable
Series: SATA
Cable Length: 30cm
Wire Size: 26AWG, Tinned Copper, OD: 0. 9*2.3,MM
Lock to Mating Part: With Latch
Plating: Au 15u' min over Ni 100u' min
Color: Cable red, Over Black
Compliance:
Flammability: Cable Horizontal flame, PCB 94V-0, PBT 94V-0
Applications
Data/Communications
1. (Redundant Array of Independent Disks)
2.Workstations
3.Rack-mount server
4.Servers
5.Storage rack
Features and Benefits
1.Transmission rate 12Gbps.
2. Meet SAS4.0 specification.
Mechanical Performance
Mating Force and Unmating Force
Condition: EIA 364-13. Insert and extract at a speed of
25mm/minute.
Mating Force: 55 N maximum for M1ni S/A/S.
Unmating Force: 49 N maximum for M1ni S/A/S.
Mating Force: 45 N maximum for SATA connector.
Unmating Force: 10 N maximum for SATA connector.
Electrical Performance
1. Current Rating
0.5Amperes maximum per pin when mated.
2.Voltage Rating
30VAC per when mated or unmated.
3. Resistance
30mohm max. initial, 15mohm maximum after stress test.
4.Dielectric Withstanding Voltage
500 VAC for 1 minute no breakdown.
5.Insulation Resistance
1000 Mohm minimum.
Signal Integrity
1. Mated Connector Impedance: 100 15%
2. Cable Absolute Impedance: 100 10%
3. Cable Pair Matching:5
4. Common Impedance: 25 to 40 ohms
5. Insertion loss: -6dB maximum up to 4.5Ghz;
6. Crosstalk: -26 dBup to 6Ghz;
Product Compliance
RoHS2.0:Compliant
ChinaRoHS:Yes
REACH SVHC:Yes
Low-Halogen Status:Not Reviewed
The Product photo
Workshop photo
Package : Yes
Model Number : RED CABLE-033
TY>pe : SATA Cables
Origin : China
Certification : CE
