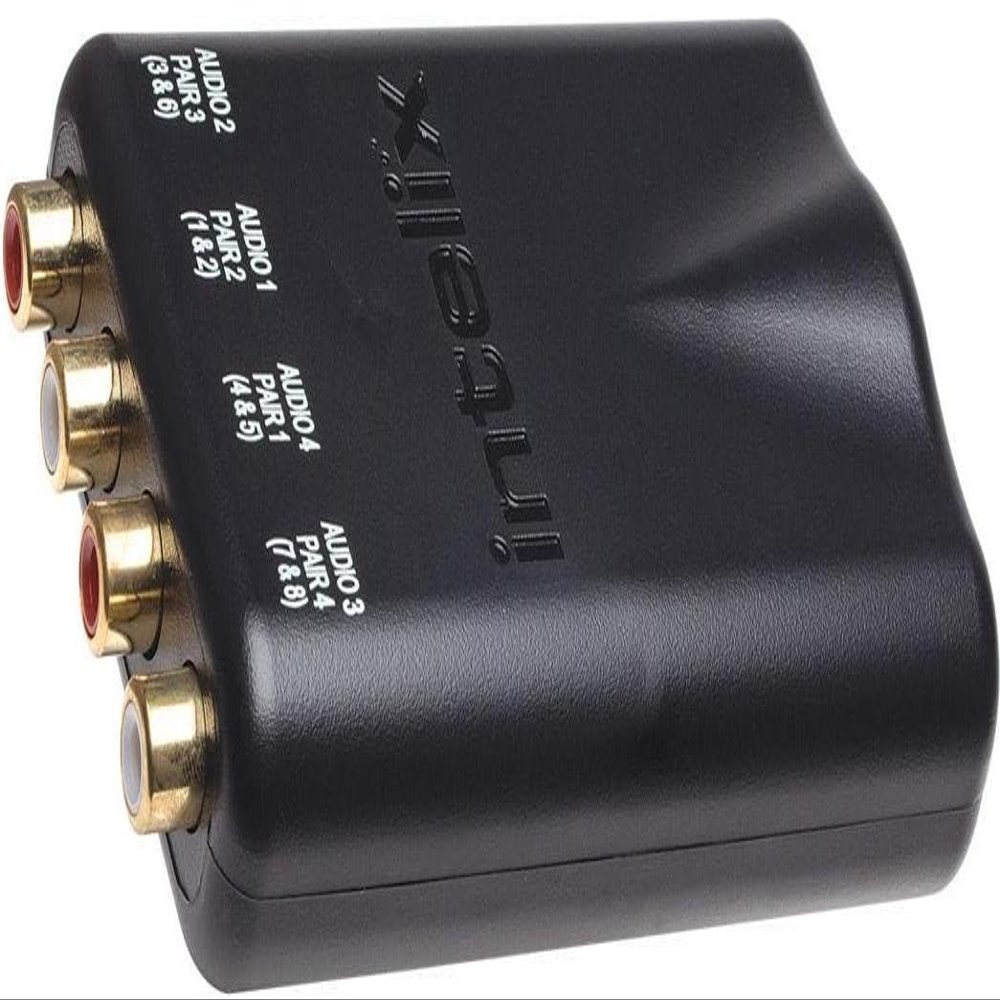

Liberty AVO-A4-F Intelix Four Channel Analog Audio Twisted Pair Extender, Black, 4 RCA Female to RJ45 Connectivity, Up to 2500 Feet Cable Lengths, High Fidelity Audio 20Hz to 20kHz

Description

• Ideal for corporate facilities, churches, schools, auditoriums and almost any other situation involving audio signal distribution
• 4 RCA female to RJ45 connectivity
• Up to 2,500 feet cable lengths on U/UTP category 5/5e/6
• High fidelity audio 20 Hz to 20 kHz
• Transmit two stereo, four mono, or one stereo and two mono audio signals in the same or opposite directions

Liberty AVO-A4-F Intelix Four Channel Analog Audio Twisted Pair Extender, Black, 4 RCA Female to RJ45 Connectivity, Up to 2500 Feet Cable Lengths, High Fidelity Audio 20Hz to 20kHz

The Intelix AVO-A4-F balun transmits four mono or two stereo analog audio signals via standard structured cabling, such as Cat 5e. Used in pairs, the AVO-A4-F transmits analog audio in either direction up to 2,500 feet.

KEY FEATURES
- Ideal for corporate facilities, churches, schools, auditoriums and almost any other situation involving audio signal distribution
- 4 RCA female to RJ45 connectivity
- Up to 2,500 feet cable lengths on U/UTP category 5/5e/6
- High fidelity audio 20 Hz to 20 kHz
- Transmit two stereo, four mono, or one stereo and two mono audio signals in the same or opposite directions

SPECIFICATIONS
- Audio: One (1) RCA per channel
- Twisted Pair: One (1) 8P8C port (RJ45)
- Audio Frequency Response: 20Hz to 20kHz
- Impedance: 600 ohms, unbalanced
- Audio Transformer Isolation: 500V
- Nominal Level: 1.0 volts
- Insertion Loss: 1dB
- Common Mode Rejection: Greater than 40dB
- Operating Temperature: 0 to +40C (+32 to +104F)
- Operating Humidity: 20% to 90%, Non-condensing
- Storage Temperature: -10 to +60C (+14 to +140F)
- Enclosure: Black ABS plastic
- Dimensions: 106 x 64 x 23 mm (4.2" x 2.5" x 0.9")
- Shipping Weight: 0.24 kg (0.54 lbs)
