Lysee 3D Printer Parts & Accessories - 0.96 inch OLED IIC Serial White Blue Display Module 128X64 I2C SSD1306 12864 0.91'' LCD Screen Board GND VDD SCK SDA for - (Color: Blue 0.91 inch)

Description

• Color: Blue 0.91 inch
• Item type: Display Screen
• Model number: 04012W
• Resolution: 128*64
• Display size: 0.96 inch

0.96 inch OLED IIC Serial White Blue Display Module 128X64 I2C SSD1306 12864 0.91'' LCD Screen Board GND VDD SCK SDA for
0.96'' OLED Display
Resolution: 128X64
Color: Blue
Viewing angle: greater than 160 degrees
Supported platforms: for , 51 series, MSP430 series, STIM32 / 2, SCR chips
Low power consumption: 0.04W during normal operation
Support wide voltage: 3.3V-5V DC
Working temperature: -30-80 degrees
Volume: 27MM * 27MM * 4.1MM
Driver IC: SSD1306
Communication: IIC, only two I / O ports
No font: The software takes word modulo
Backlight: OLED self light, no backlight
Interface:
VCC: 3.3-5V
GND: Ground
SCL: Serial Clock
SDA: Serial Data
Component List
- 1 * OLED-SSD1306 Module
- 1 * 4-pin anti-reverse cable

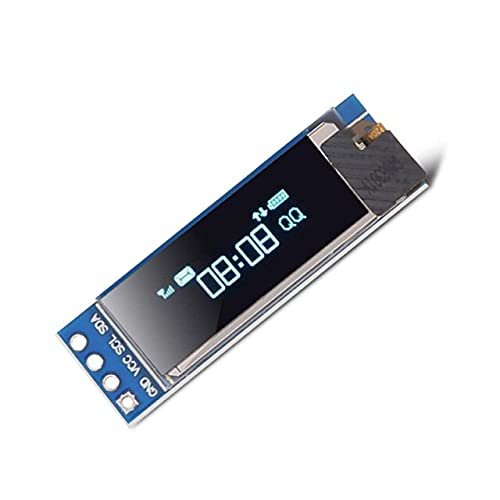

0.91''OLED Display
The 0.91 oled I2c display,Blue display color,the display performance is better than the traditional LCD display, also lower consumption
0.91 inch OLED Resolution: 128 x 32 Size: 1.49 * 0.47 inch . Operating temperature: -40 - 85
Driver IC : SSD1306,IIC (I2C communications) simplifies connections
Compatible with , ESP8266, ESP32, STM32, etc
These 0.91inch I2C Oled LCD Display Modules come with pin headers, no need backlight, self-illumination
Item specifics:
Item type: Display Screen
Model number: 04012W
Resolution: 128*64
Display size: 0.96 inch
Working voltage: 3.3V - 5V
Communication: IIC, only two I / O ports
Feature 1: 4-Pin anti-reverse cable
Feature 2: for Raspberry Pi SMT32
Feature 3: 0.91'' LCD Display
Feature 4: DIY Module OLED
