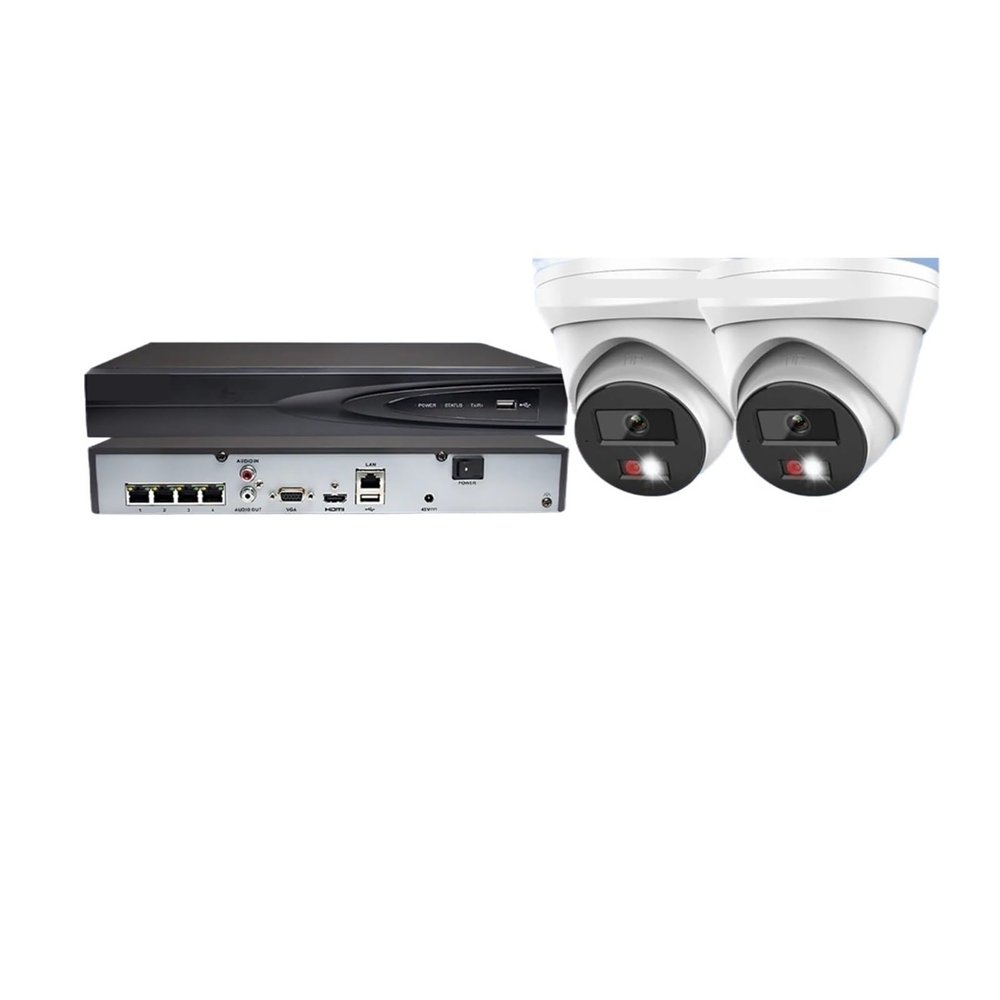

OEM CCTV KIT Video Surveillance System 5/8MP Hybird Light IP Camera 4K NVR 4POE HDD H.265+ Home Security Set(4T,8MP CCTV KIT)

Description

• The 5/8MP dual-mode intelligent switching supports flexible adjustment of picture quality according to scene requirements. It is ultra-clear during the day and energy-saving at night, balancing clarity and storage efficiency. "Use the 8MP ultra-clear mode during the day and switch to the 5MP energy-saving mode at night. It's so smart!" "
• The hybrid optical displacement technology adopts dual displacement detection of optics and intelligent algorithms to accurately identify the movement of people and vehicles and effectively filter out false triggers. "Now you'll only receive real human-shaped alerts and won't be disturbed by fallen leaves anymore!"
• 4K ultra-clear H.265+ compression saves 70% of storage space while ensuring picture quality and extends the recording time to 90 days. "Even the license plate texture is clearly visible when replaying the video, and it can store the video for three months!" "
• The 4-channel PoE power supply system can simultaneously complete power transmission through a single network cable, supports automatic device recognition, and is simple and efficient to install. "Self-wiring is neat and beautiful, and the power supply for the four cameras is stable without interruption!" "
• OEM customized design supports brand identity and function customization, perfectly meeting the personalized security needs of enterprises. "The body is printed with the company logo, and its functions can be customized as needed, exuding a strong sense of professionalism!" "

Video Parameters
Image Sensor: 1/2.4" Progressive Scan CMOS.
Resolution: Maximum 38402160.
Shutter Time: 1/3 s to 1/100,000 s.
Minimum Illumination: 0.005 Lux @ (F1.6, AGC ON) in color mode, 0 Lux with IR in B/W mode.
Day/Night Switch: IR cut filter.
Lens Parameters: Fixed - focal - length 2.8mm lens, horizontal FOV 105, vertical FOV 55, diagonal FOV 127, aperture F1.6.
Video Compression: Main stream: H.265+/H.265/H.264+/H. 264, Sub - stream: H.265/H.264/MJPEG.
Frame Rate: At 50Hz, the main stream has 12.5fps (38402160), 20fps (32001800, etc.); at 60Hz, the main stream has 15fps (38402160), 20fps (32001800, etc.); the sub - stream has 20fps (1280720, etc.) at both 50Hz and 60Hz.
Audio Parameters
Audio Type: Mono sound.
Sampling Rate: 8kHz/16kHz.
Environment Noise Filtering: Supported.
Compression Formats: G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC.
Network Parameters
Network Protocols: Supports multiple protocols such as TCP/IP and ICMP.
Simultaneous Live View: Supports up to 6 channels.
API Interfaces: Open Network Video Interface, etc.
Other Parameters
Protection Rating: IP67.
Power Supply: 12 VDC 25%, 0.66A, max. 8W; PoE (IEEE 802.3af, Class 3, max. 9.5W).
Operating Environment: -30 C to 60 C, humidity 95% or less (non - condensing).
Dimensions and Weight: The camera is 110mm102.7mm and weighs approximately 340g; the package is 150mm150mm141mm and weighs approximately 560g with the package.
IV. Application Scenarios
Suitable for indoor and outdoor monitoring in places such as homes, shops, offices, factories, warehouses, and parking lots. It can be used for security prevention, behavior analysis, event recording, etc.
V. Accessories and Installation
A variety of installation accessories are provided, such as wall - mounting, pole - mounting, ceiling - mounting, corner - mounting accessories, and junction boxes, facilitating users to install according to actual needs.
