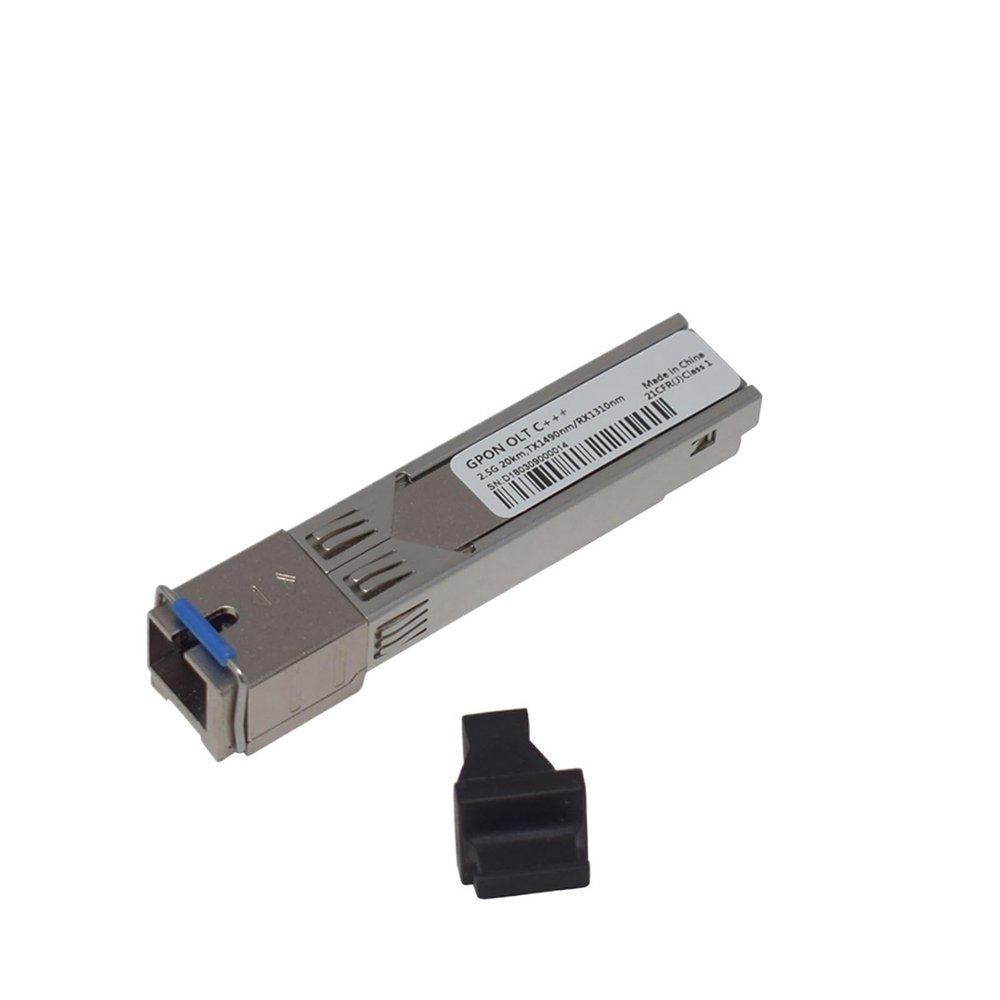

QBDJHWBT 2.5G SC Tx1490nm/Rx1310nm 20km GPON SFP OLT C+ C++ C+++(C Plus 3)

Description

• Fiber Optic Receivers
• 2.5G SC Tx1490nm/Rx1310nm 20km GPON SFP OLT C+ C++ C+++

Fiber Optic Receivers
2.5G/1.25G Tx1490nm/Rx1310nm GPON OLT SFP C+/C+/C+++
It primarily enables bandwidth 2.5G optical links over single-mode fiber terminated with SC/UPC simplex connectors and can be used in commercial temperature environment for interoperability with 1000BASE-BX interfaces.
Features:
Support ITU-T G.984.2 GPON OLT C+ application
Single fiber bi-directional data links with symmetric 2.488Gbps Tx and 1.244Gbps Rx
1490nm continuous-mode transmitter with DFB LD
1310nm burst-mode receiver with APD-TIA
2-wire interface for integrated digital diagnostic Monitoring
Receiver RESET, Signal Detect, RSSI function indication (RESET, RX_SD, RSSI)
SFP package with SC/UPC receptacle optical interface
Single +3.3V power supply
Operation case temperature 0~70C for commercialRoHS6 compliance
