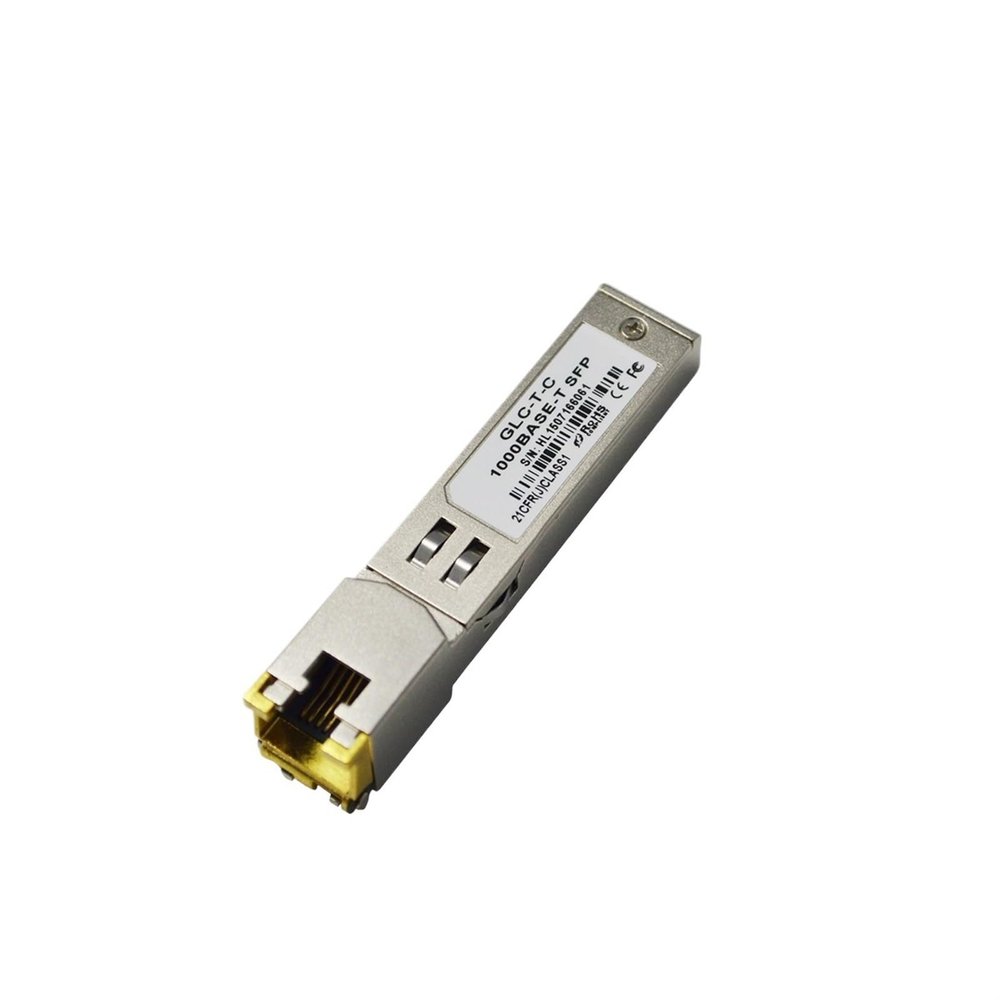

QBDJHWBT GLC-T 1000BASE-T Pure Gigabit SFP RJ45 100M Electrical Port Copper Transceiver (Size : 10 pcs)

Description

• Fiber Optic Products / Fiber Optic Receivers
• GLC-T 1000BASE-T Pure Gigabit SFP RJ45 100M Electrical Port Copper Transceiver

Fiber Optic Products / Fiber Optic ReceiversGLC-T 1000BASE-T Pure Gigabit SFP RJ45 100M Electrical Port Copper 1000Mbase-T 100M RJ45 CopperGeneralCopper Small Form Pluggable (SFP) transceivers is high performance, cost effective module compliant with the Gigabit Ethernet and 1000- BASE-T standards as specified in IEEE 802. 3-2002 and IEEE 802.3ab, which supporting 1000Mbps data- rate up to 100 meters over unshielded twisted-pair 5 cable. The module supports1000 Mbps (or 10/100/1000Mbps) full duplex data-links with 5-level Pulse Amplitude Modulation (PAM) signals. All four pairs in the cable are used with symbol rate at 250Mbps on each pair. The module provides standard serial ID information compliant with SFP MSA, which can be accessed with address of A0h via the 2wire serial CMOS EEPROM protocol. The physical IC can also be accessed via 2wire serial bus at address ACh.Product FeatureUp to 1.25Gb/s bi-directional data links -pluggable SFP footprintExtended case temperature range (0C to +85C ) Fully metallic enclosure for low EMILow power dissipation (1.05 W typical) Compact RJ-45 connector assemblyAccess to physical layer IC via 2-wire serial bus1000 BASE-T operation in host systems with SERDES interface 10/100/1000Mbps compliant in host systems with SGMII interfaceApplication:1.25 Gigabit Ethernet over 5 cableProduct Picture Show10G-SFP-TMechanical Specifications
