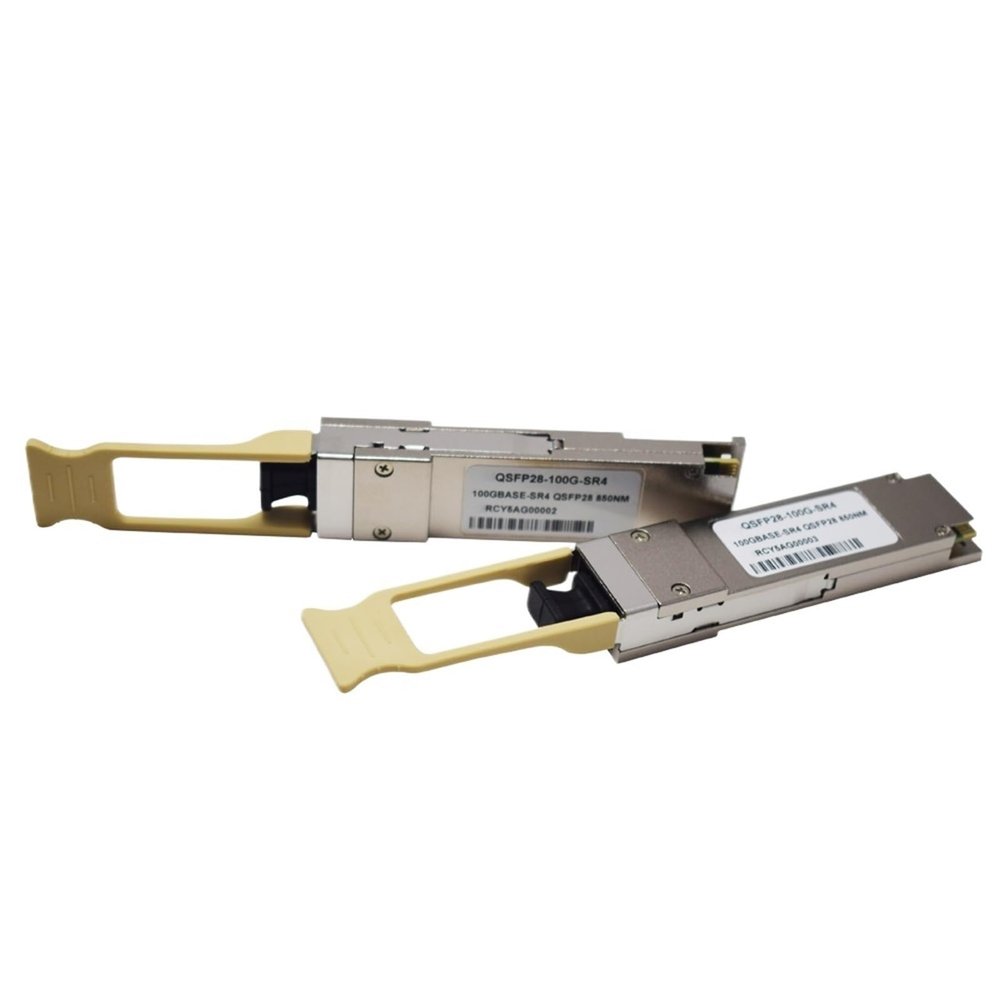

QSFP28 100G SR4 LR4 ER4 ZR4 80km LC Connector Data Center Transceiver(100G ER 40km LC)

Description

• Fiber Optic Receivers
• QSFP28 100G SR4 LR4 ER4 ZR4 80km LC Connector Data Center Transceiver

Fiber Optic Receivers
QSFP28 100G SR4 LR4 ER4 ZR4 80km LC Connector Data Center Transceiver
100G QSFP28 SR4
The 100G QSFP28 SR4 optical transceiver integrates the transmit and receive path onto one . It converts parallel electrical input signals into parallel optical signals, by a driven Vertical Cavity Surface Emitting Laser (VCSEL) array. The transmitter accepts electrical input signals compatible with Common Mode Logic (CML) levels. All input data signals are differential and internally terminated. The receiver converts parallel optical input signals via a photo detector array into parallel electrical output signals. The reCML) levels. All data signals are differential and support a data rates up to 27.9525Gb/s per channel.ceiver outputs electrical signals are also voltage compatible with Common Mode LogicOn
This features a -pluggable electrical interface, low power consumption, and 2-wire serial interface.
Features:
MTP/MP0 optical connectorSingle +3.3V power supplyHot-pluggable QSFP28 form factorUp to 100m OM4 MMF Distance4x28G Electrical Serial Interface (CEI-28G-VSR)AC coupling of CML signalsLow power dissipation(Max:3.5W)Built in digital diagnostic functionOperating case temperature range:0 to 70Compliant with 100GBASE-SR4I2C Communication InterfaceApplications:100GBASE-SR4Infiniband QDR/DDR/SDR100G Datacom connections
Parameter
Package(FormFactor)
QSFP28SR4
TXOutputPower(dBm)
-8.4~+2.4
DataRate(typical)
25.78Gbps/CH
RXSensitivity(dBm)
-9.2
CentreWavelength
850nm
Low/HighCaseTemperature
0C~70C
Distance
100monOM4MMF
VoltageSupply(typical)
3.3v
Diagnostics
DigitalMonitor
Connector
MTP/MPOMMFWithoutPIN
Transmitter
4CHVCSELArrayLaser
Receiver
4CHPINphotodetectorArray
