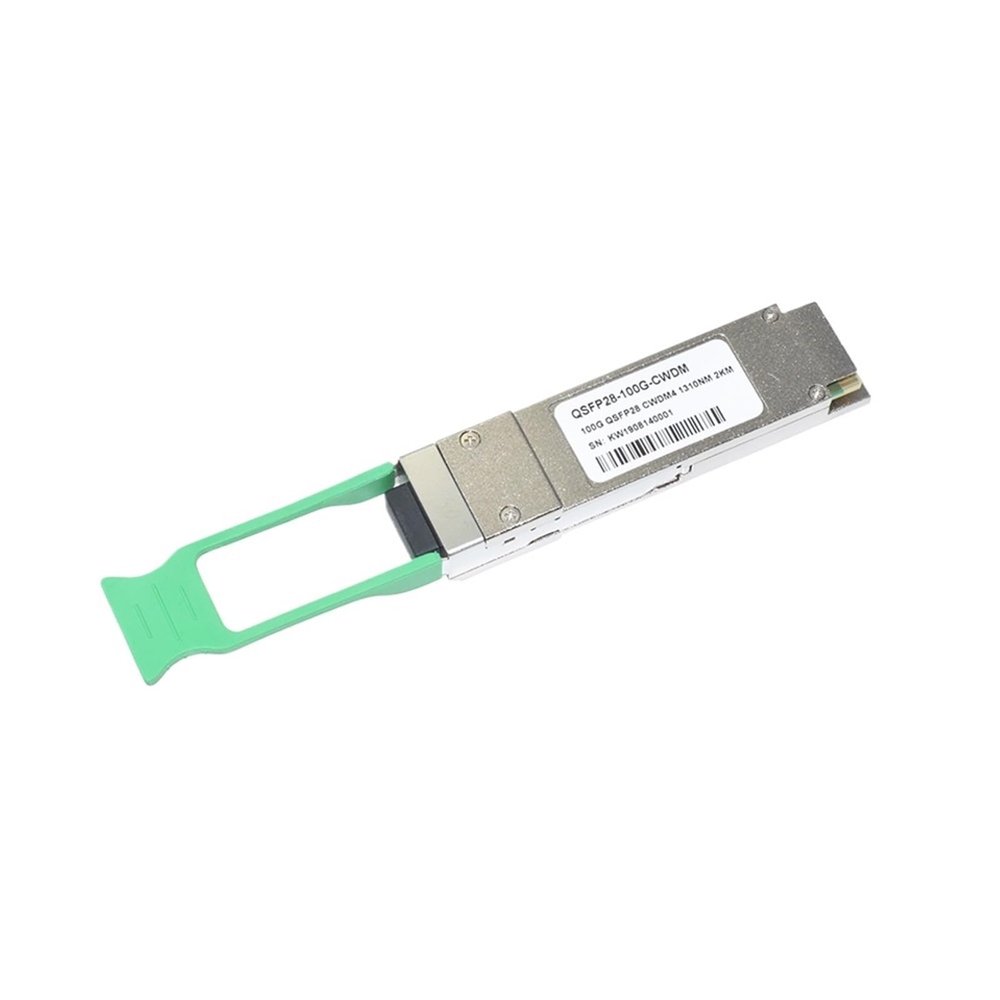

QSFP28-100G-2KM QSFP GBIC Duplex LC 100GBASE-LRS 100G 1310nm CWDM4 2km QSFP28(2pcs)

Description

• Fiber Optic Products / Fiber Optic Receivers
• QSFP28-100G-2KM QSFP GBIC Duplex LC 100GBASE-LRS 100G 1310nm CWDM4 2km QSFP28

Fiber Optic Products / Fiber Optic Receivers
Duplex LC 100GBASE-LRS 100G 1310nm CWDM4 2km QSFP28 LR4
The 100G QSFP28 LRS optical transceiver integrates the transmit and receive path onto one . On the transmit side, four lanes of serial data streams are recovered, retimed,and passed on to four laser drivers, which control four electric-absorption modulated lasers (EMLs) with 1271, 1291, 1311, and 1331 nm center wavelengths. The optical signals are then multiplexed into a single-mode fiber through an industry-standard LC connector.On the receive side, four lanes of optical data streams are optically demultiplexed by an integrated optical demultiplexer. Each data steam is recovered by a PIN photodetector and transimpedance amplifier, retimed, and passed on to an output driver. This features a
-pluggable electrical interface, low power consumption, and 2-wire serial interface.
Features:
Four-channel full-duplex transceiver modules
Transmission data rate up to 26Gbit/s per channel
Up to 2km transmission of single mode fiber
<;3.5W
Operating case temperature 0 to +70
3.3V power supply voltage
6 compliant
Pluggable QSFP form factor
LC connector receptacle
Built-in digital diagnostic function
Applications:100GBASE-LR4
QDR and DDR interconnects
100G Datacom connections
100G CWDM4 application with FEC
StandardsCompliant with IEEE 802.3ba
Compliant with QSFP28 hardware specifications
Compliant with
100G QSFP28 SR4
100GBASE-SR4 QSFP28
QSFP28 CWDM4 2KM
QSFP28 CWDM4 2KM 1271~1331 LC
QSFP28 CWDM4 10KM
QSFP28 CWDM4 10KM 1271~1331 LC
QSFP28 PSM4 2KM
100G QSFP28 PSM4 2KM MPO
QSFP28 100G 1310 10KM
10km LR4 QSFP28-LR4 LC LWDM4
QSFP28 100G 1310 25KM
25km LR4 LWDM QSFP28-LR4 LC
QSFP28 100G 1310 30KM
30KM LR4 LWDM QSFP28-LR4 LC
QSFP28 100G 1310 ER4
40km ER4 1295~1309NM QSFP28
