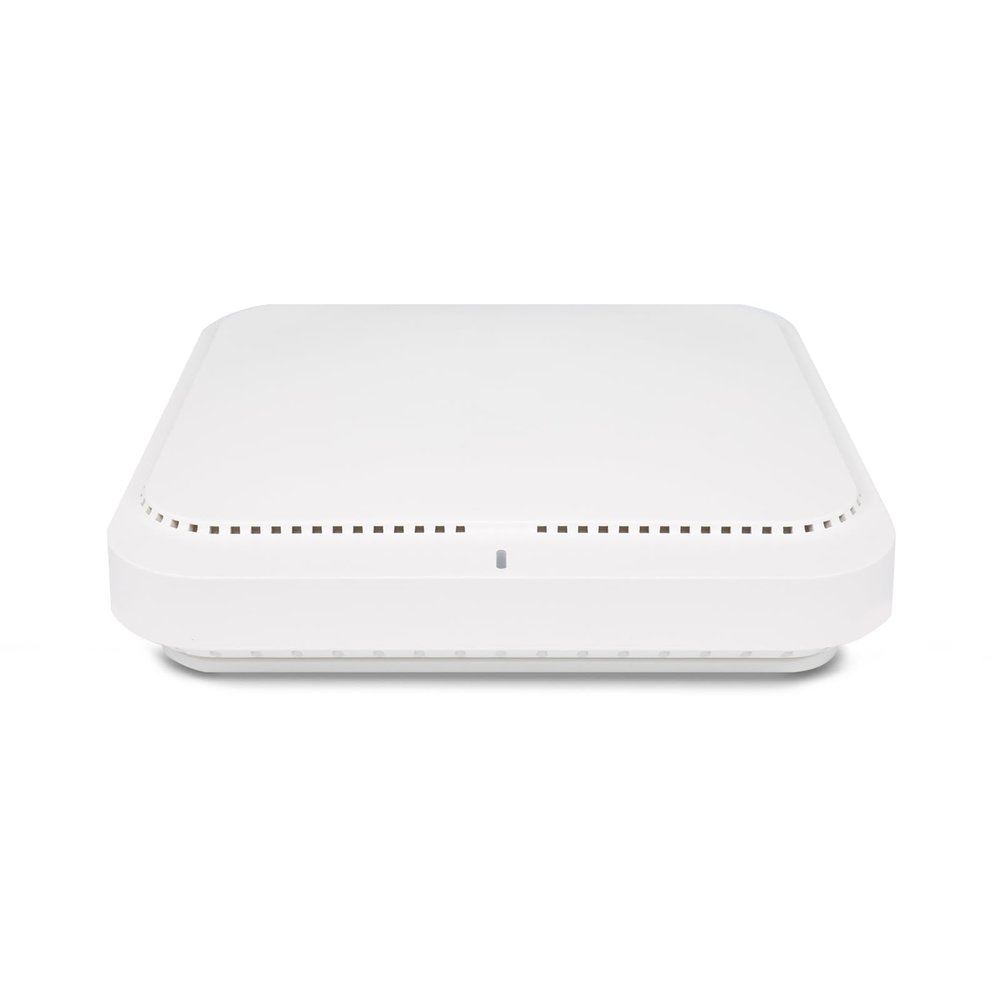

QSFPTEK Ceiling-Mounted Intelligent WiFi6 AP, 1 GE Port and 1 Console Port, Built-in MIMO Antennas, 2976Mbps Wireless, Supports PoE and Adaptor Power Supply,excluding Power Adaptor

Description

• Comprehensive Security Features: Supports WEP/WPA/WAP2 access modes, wireless IPS/IDS, the layer-2 user isolation, and centralized ACL control. Supports docking with QAC-B16 wireless AC, provides rich and practical diversied authentication functions for computers, mobile phones, tablets and other terminals, to facilitate user access authentication.
• Automatic Network Optimization: Supports wired and wireless QoS, automatic terminal identification, automatic channel selection, automatic power adjustment, dynamic receiving sensitivity and other carrier-level network optimization features while accessing a large number of users, which serves enterprises with easy-to-use and practical WLAN.
• Equipped with LED Controllable Design: The LED lights can be turned off during the night break to avoid irritating the eyes; all the LED lights can be turned on to improve the operation efficiency during the network inspection. All the LEDs can be controlled in batches through the AC, and can also be switched individually with each AP button, which is very exible and convenient.
• Integrated Design of Fat and Thin APs: Can be individually congured, and can also be connected to QAC-B16 series wireless ACs to realize CLI, Web, SNMP management. Can also be managed to achieve unied management of AC, switches, routers, security and other products,greatly improving the eciency of operation and maintenance.
• Install Design: QAP-630E and mounting bracket adopt ultra-thin shape, and the network port is also designed to be retracted and hidden. The well-installed AP can be better integrated with the surroundings to ensure beauty and cleanliness.

Item: QAP-630E
Weight: 420(g)
Mounting method: Ceiling
Dimensions (excluding accessories)(mm): 18618636(mm)
Ethernet port 12.5G WAN Port
1 GE WAN port (POE supported)
Local power supply: POE input or 12V DC
PoE power supply: 802.3at
Antenna type: Built-in omnidirectional
Antenna gain: 2.4G: 3dBi 5G: 3dBi
Operatingfrequencybands:
802.11a/n/ac: 5.725GHz-5.850GHz ; 5.15-5.35GHz
802.11 b/g/n/ac: 2.4GHz-2.483GHz
Wi-Fidatarate:
2.4G: 2*2 11ax 576Mbps
5G: 2*2 11ax 2400Mbps
Maximum total transmitting power (The actual transmission
power is subject to relevant regulations.):
2.4 GHz: 27 dBm (combined power)
5 GHz: 23 dBm (combined power)
Modulation technology:
OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps,
16-QAM@24Mbps, 64-QAM@48/54Mbps
DSSS:DBPSK@1Mbps, DQPSK@2Mbps,
CCK@5.5/11Mbps
MIMO-OFDM(11n):MCS 0-15
MIMO-OFDM(11ac):MCS 0-9
MIMO-OFDM(11ax):MCS 0-11
Modulation mode:
11b: DSS:CCK@5.5/11Mbps, DQPSK@2Mbps,
DBPSK@1Mbps
11a/g: OFDM:64QAM@48/54Mbps, 16QAM@24Mbps,
QPSK@12/18Mbps, BPSK@6/9Mbps
11n: MIMO-OFDM:BPSK, QPSK, 16QAM, 64QAM
11ac: MIMO-OFDM:BPSK, QPSK, 16QAM, 64QAM, 256QAM
11ax: MIMO-OFDM:BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM
Power adjustment: Automatic
Reset: Supported
Status LED: on / Blinking/ error
Operating temperature/
Storage temperature: -10C~40C/-40C~70C
Operating humidity /
Storage humidity: 10%~95% (non-condensing)
Protection class: IP41
Power consumption: 250000H
