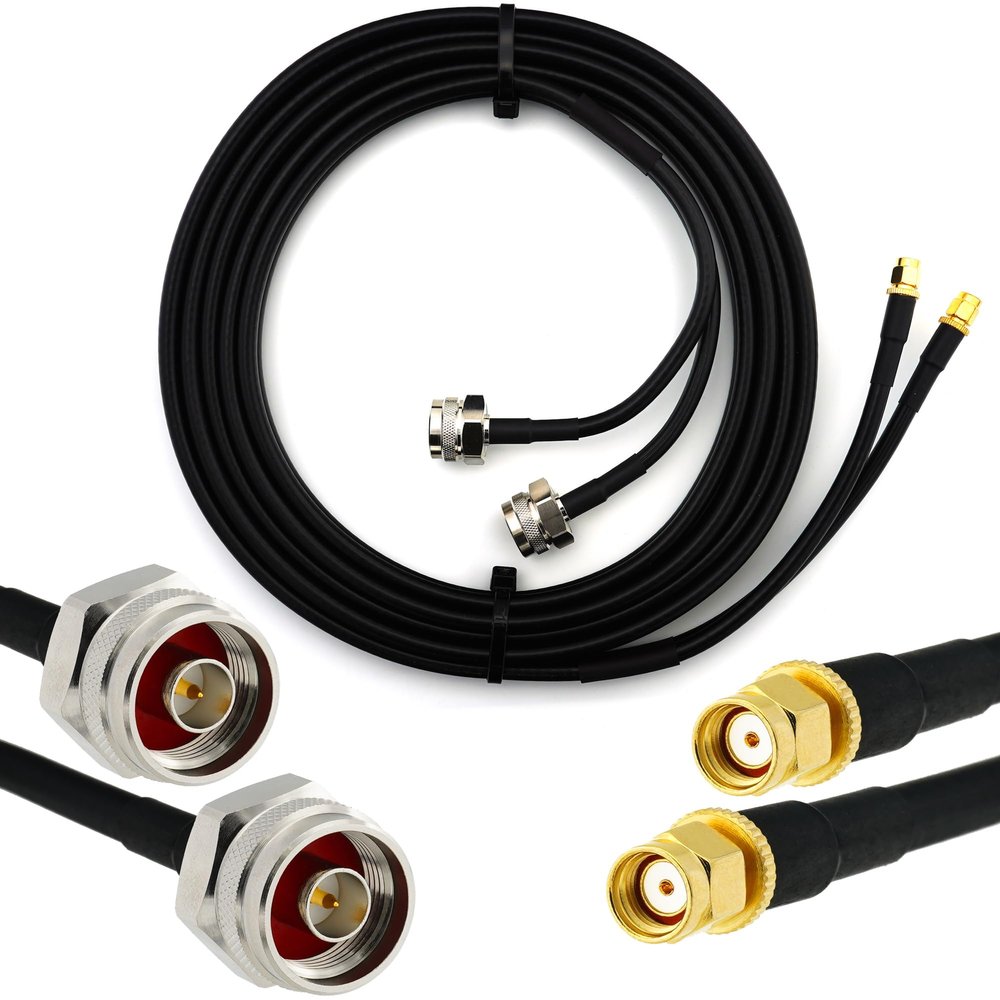

RANGEFUL 1m RP-SMA Male to N (Hex/Knurl Head) Twin Coaxial Cable HF-240 (LMR 240 Equivalent) Dual Shotgun RPSMA Extension Lead RP SMA Double Coax

Description

• Indoor/Outdoor use RPSMA Male to N Male (Hex / Knurl Head) black TWIN extension cable 1m UV-resistant, Waterproof and Frostproof with PVC jacket.
• Solid Copper Conductor Copper conductor and tinned copper braid shield provide best-in-class data transmission with minimal attenuation.
• Double-wall shrink tubing Additional adhesive layer better protection of connectors from external environment.
• Made in the EU The connectors are soldered with silver-added solder for best contact and long life. Each cable is tested before shipment.

RP-SMA Male to Waterproof IP67 N Male Low Loss Indoor/Outdoor HF240 Flexible DUAL Coaxial Cable
Double Shielded with Black PVC Jacket
Length: 1 meter (3.3 ft) Application
Widely used with Antennas, WiFi routers, WLAN modems, various RF wireless LAN devices, WiFi signal boosters and Range extenders etc. Features
Indoor/Outdoor use. UV-protected weatherproof PVC jacket.
Solid Copper Conductor and Tinned Copper Braided Shield best-in-class data transmission with minimal attenuation.
Double-wall shrink tubing with adhesive layer for better protection of connectors from external environment.
Assembled in EU, fully tested and packed. Full compliance with European standards CE, RoHS, REACH, UL 94.
Package includes
1 piece of 1m (3.3ft) RP-SMA Male to Waterproof IP67 N Male TWIN Extension Cable
Connectors on the side 1: RP-SMA Male
Connectors on the side 2: N Male IP67
Specifications
Cable Type: HF240-TWIN Bare Copper with PVC Jacket
Center Conductor Type: Solid Copper
Impedance: 50 Ohm
Frequency Range: DC - 6GHz
Cutoff Frequency: 31 Ghz
V.S.W.R: 2
Operating voltage: 1500Vrms
Input Power (Peak): 2.5 KW
Shielding Effectiveness: >90dB
Capacitance: 83 pF/m
Dielectric Type: PE
Jacket Material: PVC
No. of Shields: 2 (Aluminium foil + Tinned Copper Braid)
Operating Temperature: -35 to +80 deg C
Mechanical Specifications
Diameter: 6.10mm
Inner Conductor: 1.42mm
Dielectric: 2.90mm
Second Shield: 3.95mm
Bending Radius: 20mm
Attenuation dB/100m:
900Mhz: 24.8
1800Mhz: 35.6
2500Mhz: 42.4
5800Mhz: 66.8
