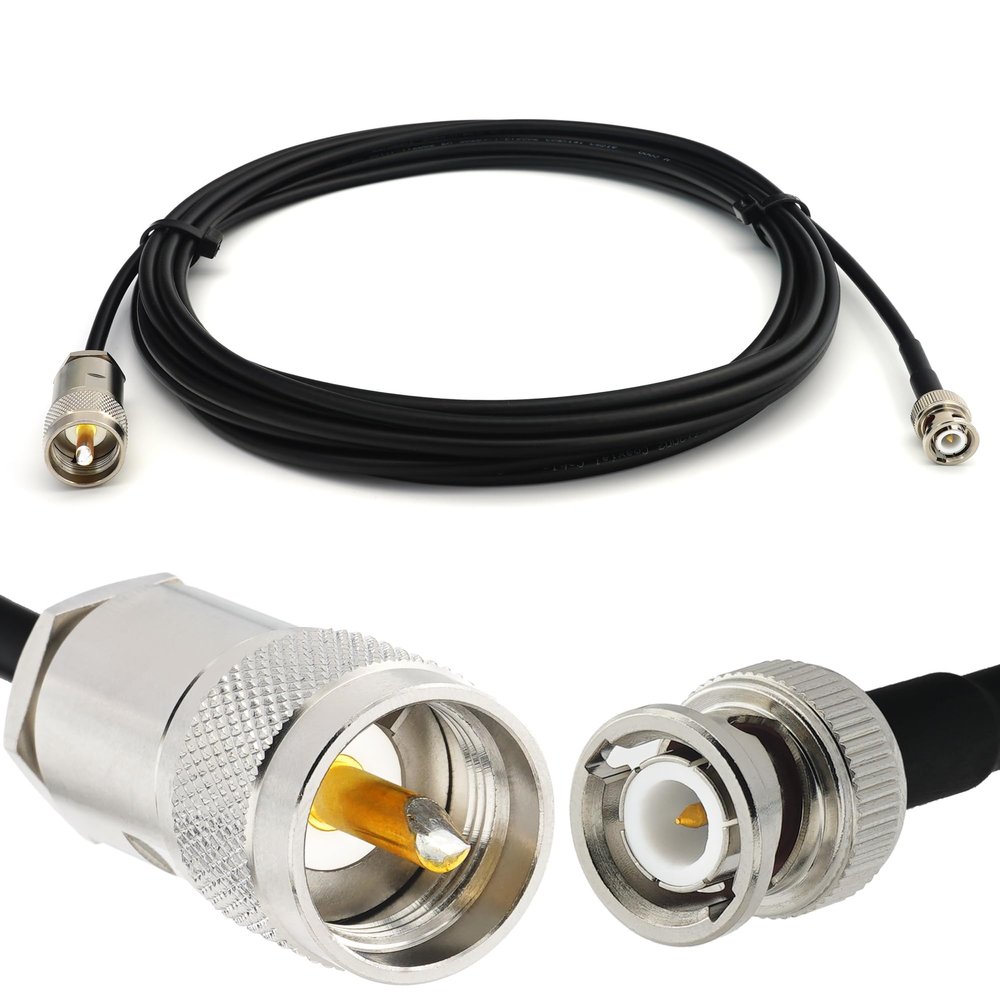

RANGEFUL 2m BNC Male to PL259 RG58 Coaxial Cable BNC PL Extension Cable 6.6ft 50 Ohm

Description

• Indoor/Outdoor use Flexible BNC black extension cable 2m UV-resistant, Waterproof and Frostproof with PVC jacket.
• Solid Copper Conductor Copper conductor 1,02mm and tinned copper braid shield provide best-in-class data transmission with minimal attenuation.
• Double-wall shrink tubing Additional adhesive layer for better protection of connectors from external environment.
• Assembled in EU The connectors are soldered with silver-added solder for best contact and long life. Each cable is tested before shipment.

BNC Male to PL259 UHF Low Loss Flexible RG58/U Coaxial Cable
Double Shielded with Black PVC Jacket
Length: 2 meters (6.56 ft) Features
Indoor/Outdoor use. Flexible UV-protected black PVC jacket.
Solid Copper Conductor and Tinned Copper Braided Shield for best-in-class data transmission with minimal attenuation.
Double-wall shrink tubing with adhesive layer for better protection of connectors from external environment.
Assembled in EU, fully tested and packed.
Package includes
1 piece of 2m (6.56ft) BNC Male to PL-259 Extension Cable
Connector 1: BNC Male
Connector 2: PL-259
Specifications
Cable Type: RG58/U
Center Conductor Type: Solid Copper (1 Strand)
Impedance: 50 Ohm
Frequency Range: DC-6GHz
V.S.W.R: 2
Operating voltage: 1000Vrms
Input Power (Peak): 2.5 KW
Velocity of propagation: 82%
Shielding Effectiveness: >90dB
Capacitance: 83 pF/m
Dielectric Type: PE
Jacket Material: UV PVC
No. of Shields: 2 (Aluminium foil + Tinned Copper Braid)
Operating Temperature: -40 to +80 deg C
Mechanical Specifications
Diameter: 4.95mm
Inner Conductor: 1.02mm
Dielectric: 2.90mm
Second Shield: 3.40mm
Bending Radius: 50mm
Attenuation dB/100m:
150Mhz: 13
450Mhz: 22
800Mhz: 29
900Mhz: 32
1200Mhz: 39
1800Mhz: 48
2450Mhz: 55
3500Mhz: 66
