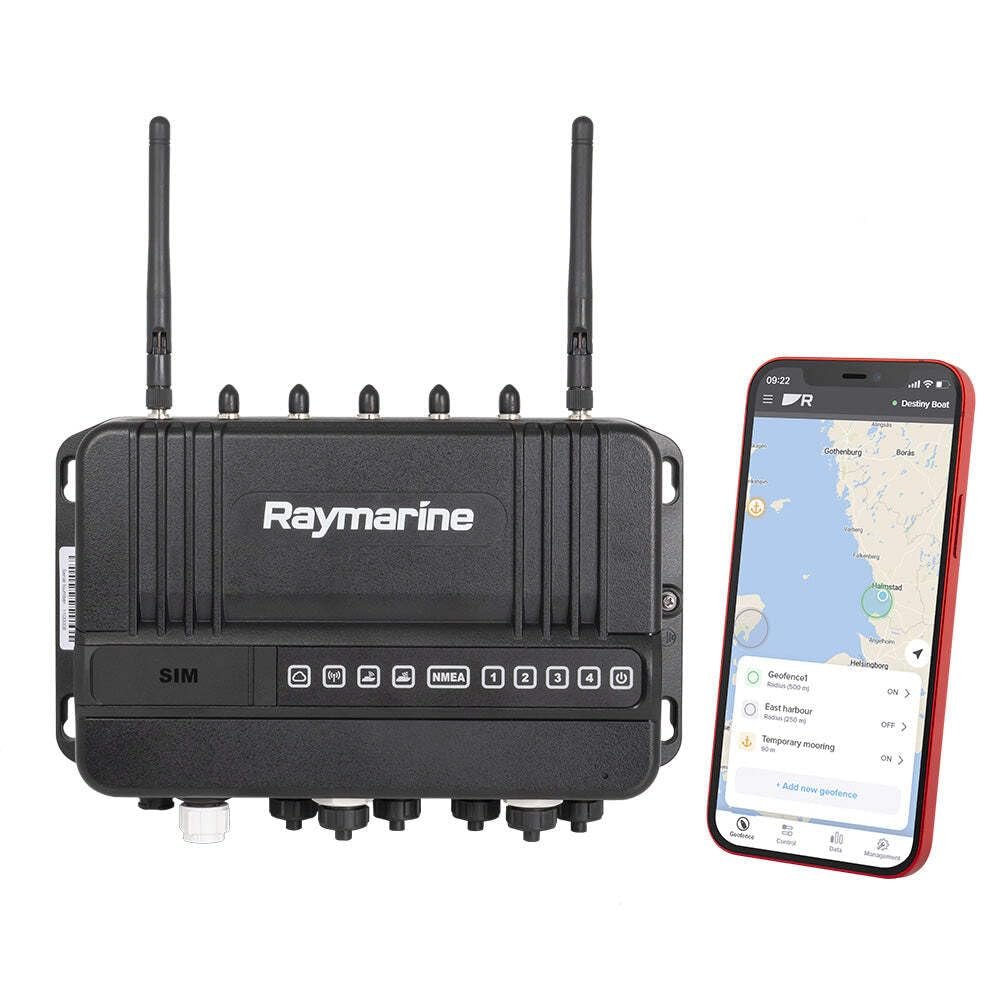

Raymarine E70640 Marine Cloud Router

Description

• Raymarine YachtSense Link Marine Mobile Router [E70640]

Raymarine Yachtsense Link Marine Mobile RouterCp>Model: E70640

REMOTE MONITORING
ALWAYS CONNECTED
STAY INFORMED
YachtSense Link is a multi-purpose marine mobile router equipped with Raynet Ethernet ports, mobile broadband connectivity, and onboard Wi-Fi. YachtSense Link allows crew and family to connect Axiom&174; displays, phones, tablets, and PCs to a unified onboard network. YachtSense Link automatically switches between marina Wi-Fi and mobile networks to ensure you are always connected. Combine YachtSense Link with the Raymarine mobile app for remote access to your Raymarine network and enjoy the added security of remote GeoFence vessel monitoring. YachtSense Link also features low-voltage digital switching / monitoring channels for controlling and monitoring onboard electrical devices like pumps, batteries, lighting, and more.p>SpecificationsC
Power SpecificationsC Nominal supply voltage: 12 Vdc / 24 Vdc Operating voltage range: 8 Vdc to 32 Vdc Environmental SpecificationC Operating temperature range: -25&176;C (-13&176;F) to + 55&176;C (131&176;F) Storage temperature range: -30&176;C (&8212;22&176;F) to + 70&176;C (158&176;F) Humidity: up to 93% @ 40&176;C (104&176;F) Water ingress protection: IPx6 Physical SpecificationC Dimensions (w x h x d): 242.00 mm (9.53 in) x 162.20 mm (6.39 in) x 63.00 mm (2.48 in) Weight 1.03 Kg (2.26 lb) Wireless Network SpecificationC Boat Wi-Fi: Wi-Fi access point mode frequencies:
2.4 GHz (2412 MHz to 2472 MHz
2422 MHz to 2462 MHz): 13.28 dBm
Dock WLAN: Wi-Fi station mode frequencie
2.4 GHz:(2412 MHz to 2472 MHz / 2422 MHz to 2462 MHz): 14.79 dBm
5 GHz (5150 MHz to 5350 MHz / 5470 MHz to 5725 MHz): 14.94 dBm
5.8 GHz (5725 MHz to 5875 MHz): 13.74 dBm Cellular / Diversity: 2G / 3G / 4G frequencie
LTE-FDD: B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 / B13 / B18 / B19 / B20 / B25 / B26 / B28
LTE-TDD: B38 / B39 / B40 / B41
WCDMA: B1 / B2...
