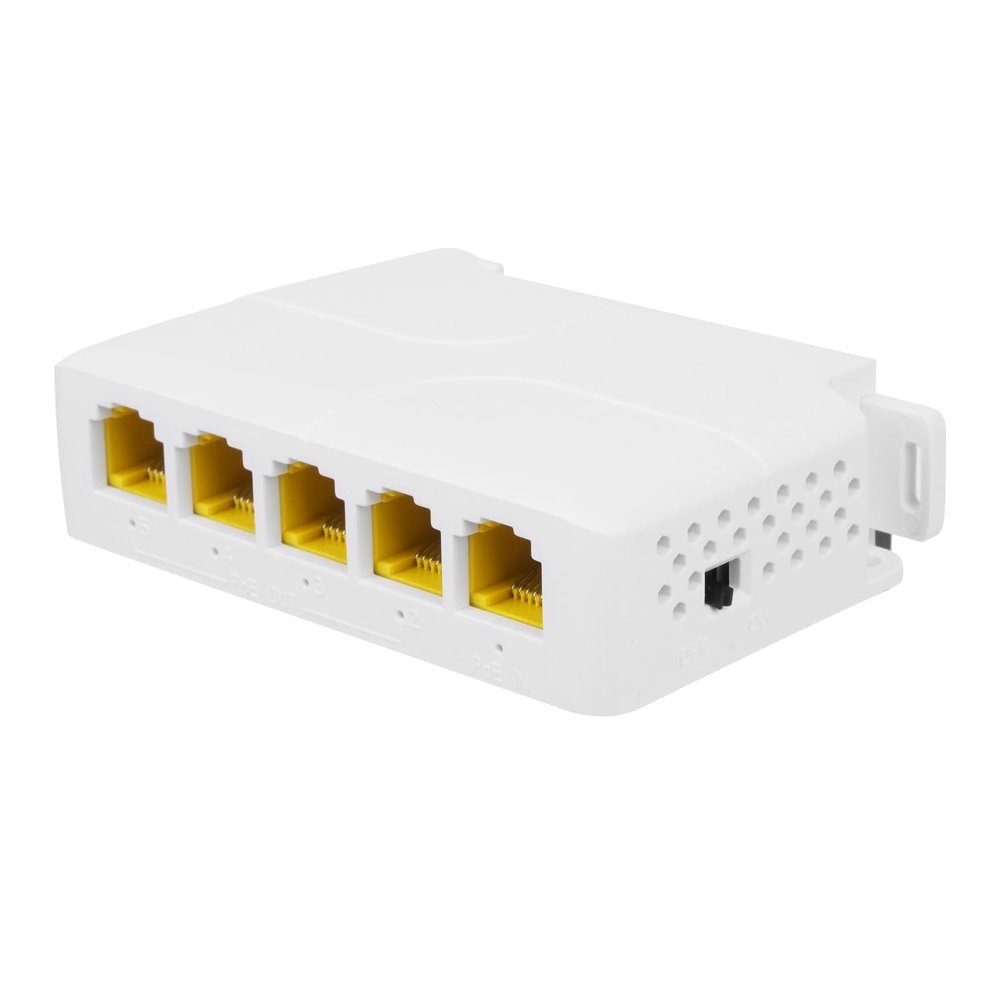

REVODATA 4 Port Gigabit 90W PoE Extender, 10/100/1000 Mbps IEEE802.3af/at/bt PoE Repeater 100/250 Meter Extend, 4 PoE Output, Plug and Play, Wall/DIN Rail Mounting PoE Amplifier (POE5006G)

Description

• 1 Input 4 Output1 PoE input and 4 PoE output. The max input power of the device is 90W, output power is 60W (max) (only using 1 specific port), other ports output power is 30W (max), Suitable for IP camera, Wireless AP.
• 100m/250m ExtensionSupport 100m and 250m PoE extension, (switch OFF:100M; switch ON:250M).
• Comply IEEE 802.3af/at/btSupport IEEE 802.3af/at/bt PoE Standard. 10/100/1000 Mbps rate, Power Supply Type: 1/2+,3/6-,Mode A,End-Span.
• Plug and PlayJust need to connect it to the terminal device, then it will auto detect and start working, no manual configuration required.

Note:
1. This Extender is not a PoE Switch, it can not work without powered from PoE Switch/PoE injector/PoE NVR.
2. Please don't place any heavy thing on the PoE extender;
3. To prevent the water seeping into the extender, please keep PoE extender away wet environment;
4. We recommend that you use an IEEE802.3bt PoE Switch. Only IEEE802.3bt PoE Switch can output 90W.

Overview:
90W PoE Extender is a cost effective way to extend the Ethernet network range beyond 250m(max), delivering both data and power to network devices such as WLAN Access Points and Network Cameras up to a distance of 250m while complying with IEEE802.3af/at/BT PoE and Data standards. The 90W PoE Extender support 10/100/1000Mbps data rates and delivers 802.3af/at/bt power levels, up to 60W and 30W, The PoE Extender does not require local power and is powered via the PoE input.Extended PoE installation range by additional 250m.

Specification:
PoE input: 1 RJ45 port
PoE output: 4 RJ45 port
Input power: 90 Watts Max
Output power: 30W and 60W(max)
Ethernet Rate: 10/100/1000Mbps
Network Medium: Cat5 or better UTP cable (less than 100m)
Repeater Mode: Store and forward
MAC Address Table: 4K
Packet Buffer Memory: 128 Byte
Switching Capacity: 8000 Mbps
PoE Standard: IEEE 802.3af/at/BT
PoE Cable Core: 1/2+,3/6-,Mode A,End-Span
Power Supply Type: Mode A,End-Span
Network Protocol: IEEE 802.3i-10BASE-T, IEEE 802.3u: 100BASE-TX, IEEE802.3x-Flow Control, IEEE 802.3at/BT-Power over Ethernet
Regulation Compliance: IEEE802.3af/at/BT, RoHS Compliant, CE, FCC
EMC:FCC Part15, Class B
Storage Humidity: 5%~90%, No Condensation
Working humidity: MAX to 90%, non-condensation
MTBF: 100,000h at 25
Operating temperature: -1045
Working temperature: -35~ 75
Dimension: 81 x 51 x 23mm (L*W*H)
Weight: 60g

Package Contents:
1 x 4 Port POE Extender (POE5006G)
