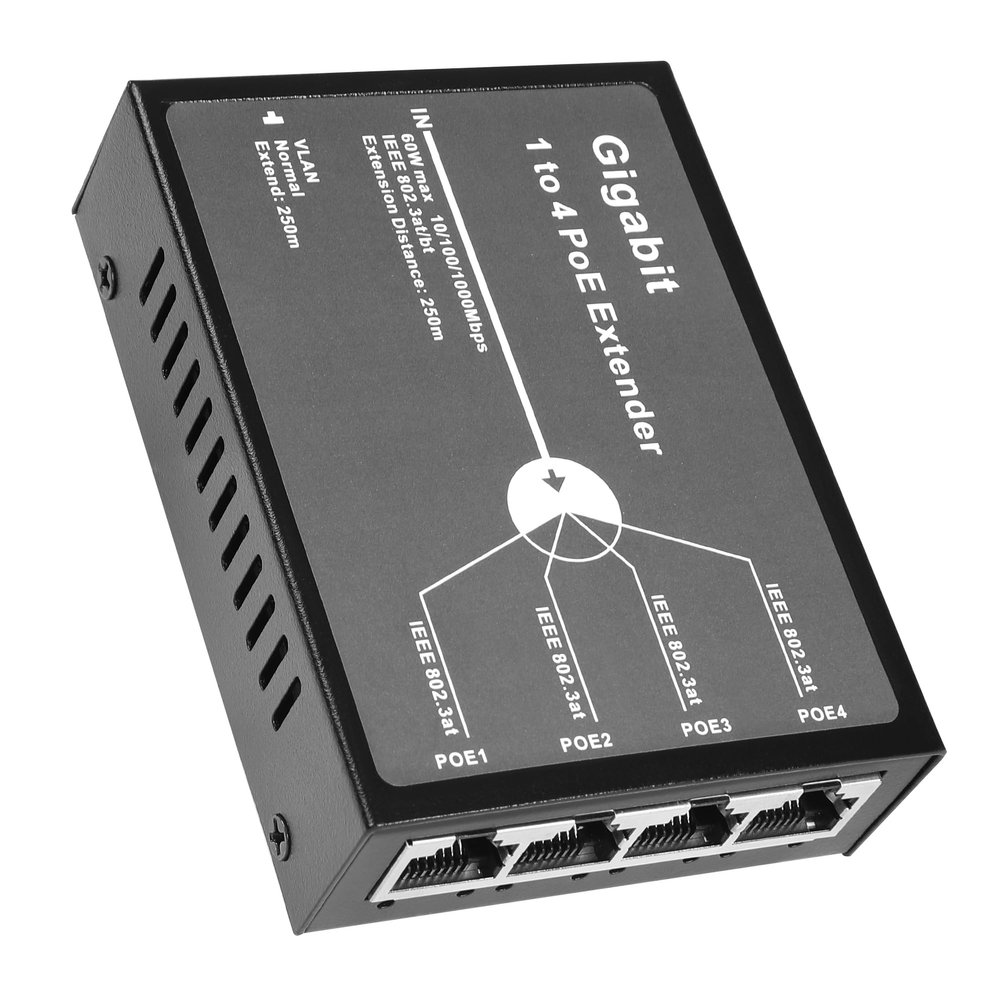

REVODATA Gigabit 4 Port 60W PoE Extender, 10/100/1000Mbps 1 in 4 Out PoE+ Repeater with 3 Mode Available, 60W 802.3BT Input, 802.3at Output 30W, 100m/250m PoE Extension for PoE Device (POE5004G-V2)

Description

• 1 In 4 Out Features 1 PoE input and 4 PoE output with total 60W power budget. Each PoE port can deliver Max 30W power and Ethernet for PoE terminal device by using network cable (Cat5,Cat5e,Cat6 or better)
• 100m/250m Extension Extend the range of PoE or Network by additional 100m or 250m(Max) by different mode. Extenders can be cascaded to reach up to 1000m
• 3 Mode Available Feature 3 mode for difference scenarios. Normal Mode: 1000Mbps, up to 100m PoE extend; VLAN Mode: 1000Mbps, up to 100M PoE extend; Extend Mode: 10Mbps, up to 250M PoE extend.
• Gigabit 802.3BT 10/100/1000 Mbps gigabit transfer rate, output comply 802.3at/at/BT standard, detect terminal device and deliver proper power, Max 60W budget need to power by 802.3BT source
• PoE Advantage Easy and cost effective to expend PoE and network layout, don't require local DC power; Plug and play after connecting; Auto detects protection, protect PoE device from being damaged by incorrect installation.

Note:
1. This Extender is not a PoE Switch, it can not work without powered by PoE Switch/PoE injector/PoE NVR.
2. 60W total power budget need to powered by 802.3BT source;
3. To prevent the water seeping into the extender, please keep PoE extender away wet environment;
4.Please don't place any heavy thing on the PoE extender;

Overview:
POE5004G-V2 PoE Extender is a cost effective way to extend the PoE or Ethernet network range beyond 100m/250m(Max). Deliver Ethernet (10/100/1000Mbps) and power (30W Max) for PoE terminal device like WLAN AP, PTZ, IP Camera, etc with no require of local power. Comply IEEE802.3af/at/BT PoE standard.

Specification:
PoE Input: 1 RJ45 PoE port
PoE Output: 4 RJ45 PoE port
Input Power: 60W Max (802.3BT, PoE++, Hi-PoE)
Output Power: 30W Max (802.3af)
Output Voltage: 48V
Transfer rate: 10/100/1000Mbps
Normal Mode: Max 100M PoE Extend Distance
VLAN Mode: Max 100M PoE Extend Distance
Extend Mode: Max 250M PoE Extend Distance
Network Cable: Cat5, Cat5e ,Cat6 or better
Repeater Mode: Store and forward
MAC Address Table: 8K
Packet Buffer Memory: 126 Byte
Switching Capacity: 8000Mbps
PoE Standard: IEEE 802.3af/at/BT
Power Supply Type: 1/2+,3/6-,ModeA,End-Span
Network Protocol: IEEE 802.3i-10BASE-T, IEEE 802.3u: 100BASE-TX, IEEE 802.3x-Flow Control, IEEE 802.3af/at/BT
Regulatory Compliance: IEEE802.3af/at/BT, RoHS Compliant, CE, FCC
Storage Humidity: 5%~90%, No Condensation
Operating temperature: -3575
Dimension: 95 * 70 * 21mm(L*W*H)
Weight: 173g

Package Include:
1 * 4 Port POE Extender (POE5004G-V2)
