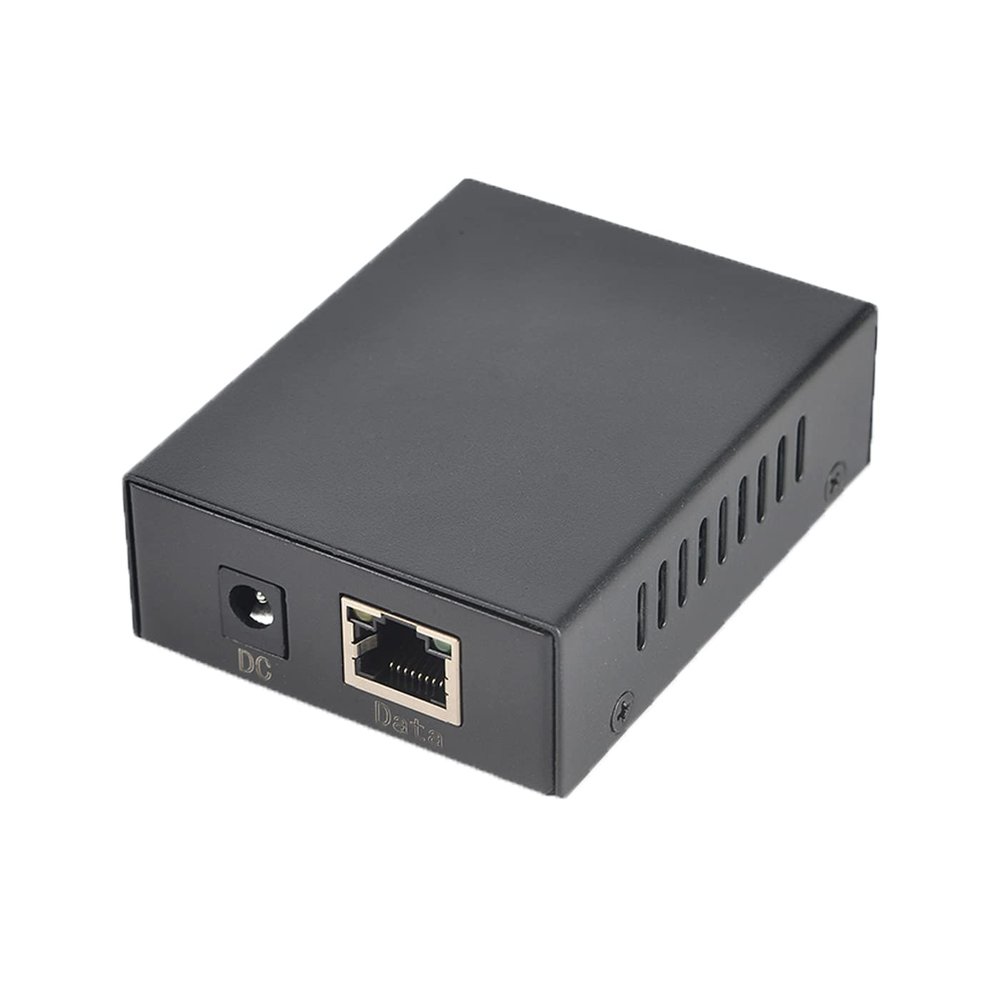

REVODATA Gigabit POE Splitter 5V 4A POE to 5.5x2.1mm DC and RJ45 Adapter Splitter IEEE 802.3af/at Standard Compliant 10,100,1000Mbps Power Over Ethernet Splitter Adapter for PTZ IP Cameras

Description

• Support international standard IEEE802.3 af & IEEE802.3at; POE port Support 10/100/1000Mbps data transmission.
• PD support 44V-57V voltage transmission, Automatically detects power supply from PSE power supply module
• 5V 4A power output, easy to access Poe network for non-PoE terminal
• Support the isolation circuit protection, can effectively protect electrical equipment; Support the short circuit, overvoltage protection
• 1500V high voltage isolation

OverView:
PS0504G High Power active splitters enable data terminals that were not originally designed to accept power from the Ethernet, to be powered by Power over Ethernet midspans. This High Power splitter can power devices such as WiMAX CPEs, small WiMAX base stations, 802.11n Access Points, Thin Clients, PTZ (Pan/Tilt/Zoom) IP Cameras, Video Phones and more.

Specifications
Connectors: 2 x RJ-45, shielded, EIA 568A and 568B
DC Jack: 5.5 x 2.1mm
Data Rate: 10/100/1000Mbps(Gigabit)
Electrical Pin Assignment & Polarity: 3/6 (+),1/2 (-) and 4/5 (+),7/8 (-)
Input voltage: 44 - 57 V DC
Input power: 30W max
Output power: 20W
Output Current: 4A
Dimensions: 81 x 61 x 26mm(L*W*H
Weight: 0.2Kg

Indicators :Output Power Indicators: Green LED
Environmental Operating Temp: -20 to 40C
Storage Temp: -30 to 70C
Operating Humidity: 10% to 90%, non-condensing
Storage Humidity: 5% to 95%, non-condensing

Package Content:
1* POE Splitter
1* Power cable
1* Ethernet cable
