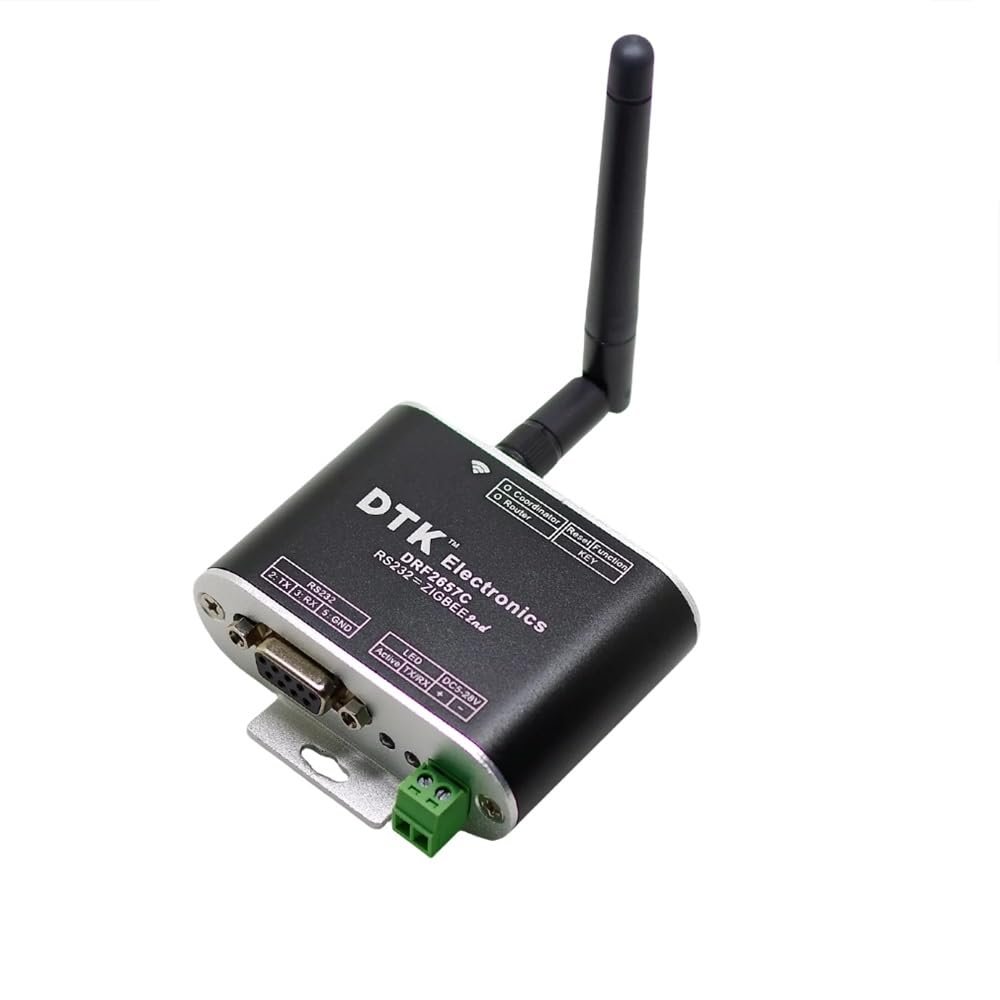

RS232 to ZigBee Wireless Module (1.6km Transmission |CC2630 Chip | Super CC2530) DRF2657C with Guide Rail Buckle (Glue Stick Antenna)

Description

• Aluminium alloy housing ,RS232-DB9 port
• Applicable temperature range :-40C-+85C
• Input voltage :DC5-28V wide voltage supply
• RESETKEY key
• SMA antenna interface
• Product Size :70mmx50.5mmx24mm(without fixing holes)
• Package Include : 1PCS

Wireless frequency :2.4GHZ(2460MHz), the user can change the channel through the serial port command (2405MHz-2480MHz, step size :5MHz)

Serial port rate: 38400 bps (the default), can be set up 1200 bps, 2400 bps, 4800 bps,9600bps, 19200 bps, 38400 bps, 57600 bps, 115200 bps

Serial format: 8 - N - 1 (the default), can be set up 8 - E - 1, 8-0-1

Transmission distance: visible open environment, maximum transmission distance 1600 meters (using external antenna)

Working current: average 25mA(@5V), recommended power supply >350mA(@5V) Standby 20mA(@5V), Receive 23mA(@5V), transmit 200mA(@5V) Other voltage reference calculation: DC-DC power supply inside the module, the efficiency is about 80%.

Receiving sensitivity :-98dBm

Configurable node: A Coordinator or Router can be configured.
