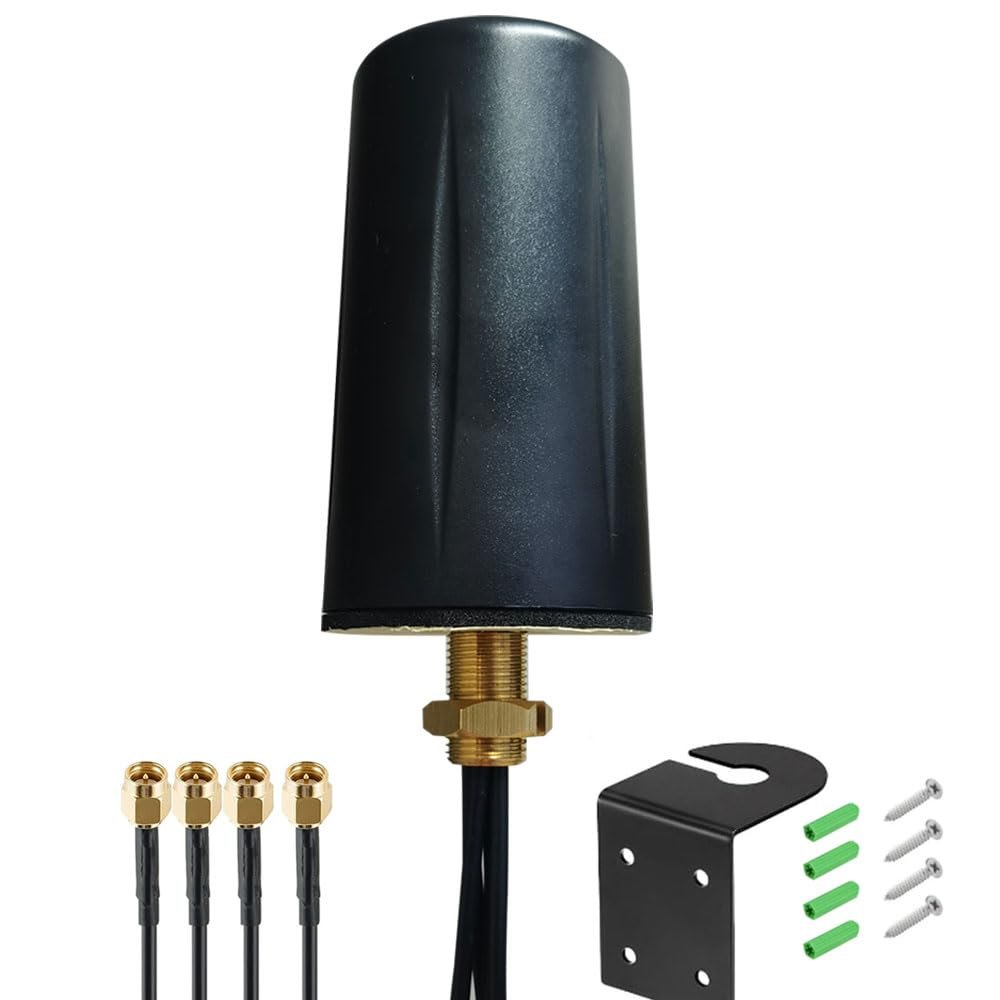

SignalPlus Omni Directional Low-Profile 5g 4G LTE 4x4 mimo Antenna for 4x4 MIMO Modem, for Cabinet, Vending Machines, 10 ft Coax with SMA Male, 600-6000MHz, Screw Mount, L Bracket Mount

Description

• Full-band, Low Profile600-6000 MHz, coverage 5G, 4G, LTE, 3G, 2G and WiFi 6 frequency bands. with 4 dBi Peak Gain.
• 4 Coax cable with 10 ft 4 SMA male connector.
• Compatible with any 4x4 MIMO 5G Modem or Router with External Antenna Ports.
• Installation locationwaterproof design for Indoor/ outdoor. Application Examples: Vending Machines, ATMs & Kiosks, Machine Control Panels, Emergency Vehicles, tool sheds.
• Two Install Methoddirect screw mount and L plate install. direct screw mount is suitable for cabinet. L plate install is suitable for wall, roof,trees.

Specifications

Frequency Range: 600-6000 MHz - support 4G & 5G Sub-6 Bands
Peak Gain: 4 dBi
Impedance: 50 Ohm
VSWR: <3.0:1
Polarization: Vertical
Connector: 4x SMA Male
Coax Length: 4x 10 ft (3m) cable
Size: Height 3.15 inch, Diameter 1.57inch. Weight: 250 g. Mounting: direct screw mount with 1.3cm hole or L plate install.

Work for any Modem Internet device with 4x4 MIMO External Antenna Ports:
CG522-E
CG418-E
E300 Series Modem
E3000 Series Modem
AER2200 Series Modem
R1900 Series 5G Modem
IBR1700 Series Modem
W1850 Series Modem
EX50
CORE plug-in LTE modem (Dual SIM 4G)
TX64 5G / LTE-Advanced Pro Cellular Modem
MoFi 5500
MAX BR1 Pro 5G
MAX BR2 Pro
B310 Series
MBX Series (requires QMA adapters)
R5020 & EG5120
AirLink XR80 & XR90 (requires FAKRA adapters)
