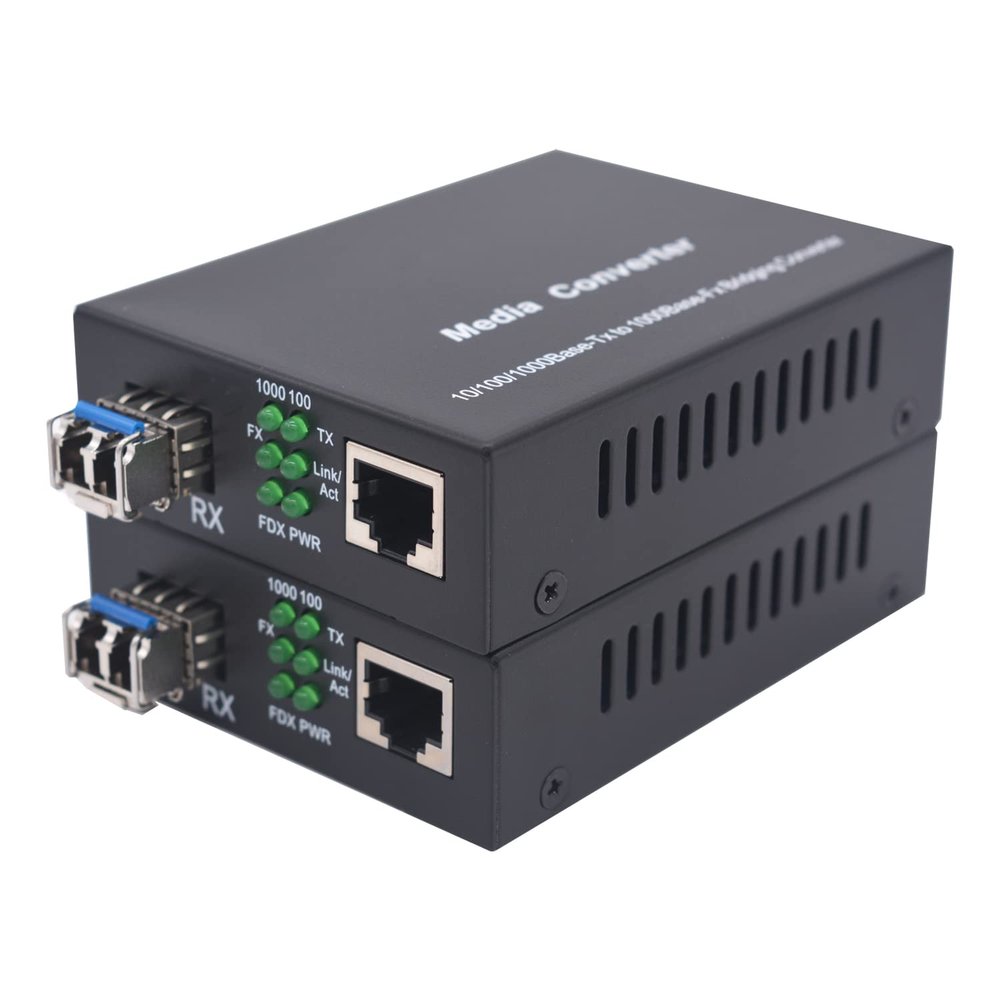

Single Mode LC Gigabit Fiber Media Converter - Include 2 SFP Transceiver 20Km (12.4 Miles), Wavelength 1310nm, LC to UTP Cat5e 10/100/1000 RJ-45 Gigabit Ethernet Speed, A Set

Description

• Fiber Port: 20KM SFP transceiver included (1.25G, Single-mode, Wavelength 1310nm).
• Fiber Type: SFP SMF, Dual LC fiber.
• AUTOMATICALLY adapts to 10/100/1000M(Gigabit)bit/s Speed And Extends it over Single Mode Fiber to up to 20 km12.4miles. Use it with Single Mode Fiber Only.
• Status LED's for TX, FX LINK/ACT, POWER, FDX to easily monitor network status.
• PLUG & PLAY Fiber Media Converters - Simply plug in SFP LC port and UTP RJ-45 port, it will work immediately.

Specification:
1.Dimensions:95x72x27mm (LxWxH)
2.Power Adapter working voltage AC100V~240V DC5V1A, UL Certified.
3.Power Dissipation 3 watts.
4. High-quality Conversion Chip & Easy Installation, Operating temperature: 0C to 60C.
5. Storage temperature: -20C to 70C.Humidity:5% to 90% RH.

Product content:
2x Gigabit Ethernet Fiber Media Converter.
2x SFP LC Single-Mode module (1310nm, up to 20KM).
2x External Power Adapter (US standard), Output voltage:5V DC/1A, UL Certified.
1x Product Manual.

LED Indicators
1.FP:Light on when fiber speed is 1000Mbps,else light off
2.TP:Light on when TP speed is 1000Mbps, else light off
3.Link/ACT: Left side is indicate for fiber port link/act and right side for TP, light flashing when data transmitting and receiving
4.FDX: Light on when TP full-duplex mode is active, light off when TP half-duplex mode is active
5. PWR: Light on when DC power on, else light off.
