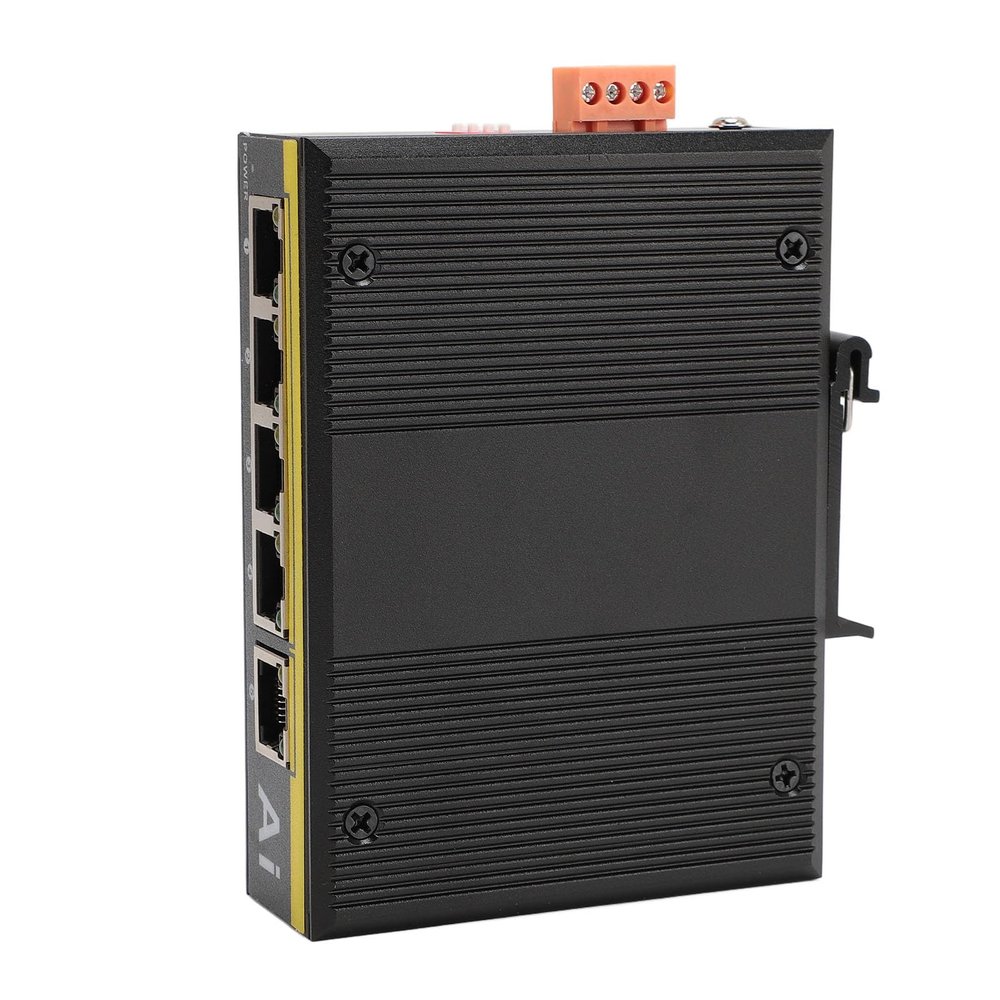

Sonew 5 Port Industrial PoE Switch, 4 PoE Ports and 1 Uplink Port, Wide Temp Range -40C to 80C, VLAN Port Isolation with LPP and for Smart Grid, Transportation

Description

• [Versatile Applications] Standard 35mm din rail poe switches widely used in smart grid, rail transportation, intelligent transportation, smart city, mining metallurgy, new energy, smart factory, ship, and building security, among others.
• [Advanced Features] Din rail poe switches feature four levels of dip switches for lpp , vlan port isolation, and ai watchdog, ensuring network security.
• [Highly Poe Switch] Industrial 5 port poe switches with 4 poe ports and 1 uplink port, support wide range dual power input dc1255v/dc4455v for enhanced network reliability.
• [Port Isolation Function] Din rail ethernet switch implements port isolation function using a dip switch, preventing devices on each port from affecting each other for optimized performance.
• [Weatherproof] Din rail poe switch is made of industrial-grade components, with high-strength, ip40 protected metal enclosure, operating over a wide temperature range of 40c to 80c, suitable for outdoor use in harsh environments.

1. 10/100Mbps Ethernet: Industrial 5 port PoE switches have 4 PoE ports and 1 uplink port. Support a wide range of dual power input DC1255V/DC4455V to enhance the reliability of the network.
2. DIP Switch Function: The DIN rail PoE switches feature four levels of DIP switches for LPP , VLAN port isolation, and AI watchdog.
3. Port Isolation Support: DIN rail ethernet switch can implement the port isolation function by using a dip switch. Therefore, devices on each port will not affect each other.
4. Industrial Quality: DIN rail PoE switch is made of industrial grade components and high strength, IP40 protected metal enclosure that operates over a wide temperature range of 40C to 80C. It can be used outdoors in harsh environments.
5. Wide Application: Standard 35mm DIN rail PoE switches are widely used in various fields such as smart grid, rail transportation, comprehensive pipeline corridor, intelligent transportation, smart city, mining metallurgy, new energy, smart factory, ship, defence industry and building security, etc.

Spec:
Item Type: 5 Port Industrial Ethernet Switch
Material: Metal
Input: DC12-55V/DC44-55V (Wide Range Dual Power Input)
Specification: 5 Ports (4 x 100Mbps POE Ports + 1 x 100Mbps Uplink Port)
POE RJ45 Ports: 4 x 10/100Mbps
Uplink Port: 1 x 10/100Mbps
Protocol: IEEE802.3AT/AF
Power Supply: 12+ 36-
Switch Function:
DIP Switch 1, LPP & Network and Broadcast S torm
DIP Switch 2, EXTEND Port 1 Extends to 250m
DIP Switch 3, VLAN Port Isolation for Ports 1-4
DIP Switch 4, AI Port Intelligent Detection

How to Use:
After connecting to the power supply, you can use it directly.

packing list:
1 x 5 Port Industrial Ethernet Switch
