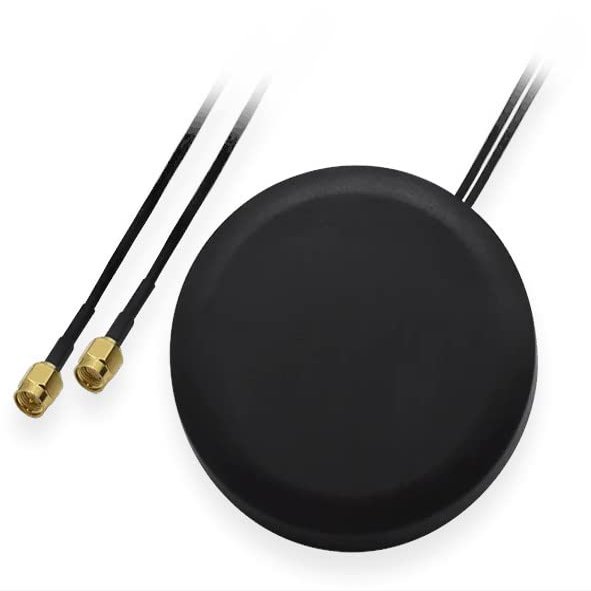

Teltonika PR1KCS28 SISO Mobile/GNSS/Wi-Fi Roof SMA Antenna Combo; Compatible with TRB245 and TRB255 Gateways

Description

• Compatible with TRB245 and TRB255 Teltonika gateways
• GNSS antenna frequency range: 1575.42-1610 MHz
• LTE antenna frequency range: 850/900/1800/1900/2170 MHz
• WiFi antenna frequency range: 2350-2500 MHz

Teltonika PR1KCS28 SISO Mobile/GNSS/Wi-Fi Roof SMA Antenna Combo; Compatible with TRB245 and TRB255 Gateways

Key Features:
- Compatible with TRB245 and TRB255 Teltonika gateways
- GNSS antenna frequency range: 1575.42-1610 MHz
- LTE antenna frequency range: 850/900/1800/1900/2170 MHz
- WiFi antenna frequency range: 2350-2500 MHz

Specifications:

GNSS Antenna:
- Frequency Range: 1575.42-1610 MHz
- Polarization: RHCP
- Impedance: 50 Ohm
- LNA Gain: 28 dB
- LNA Noise Figure: <1.5 dB
- Supply Voltage: 2.7-5 0.5 VDC
- Current Consumption: <15 mA
- LNA V.S.W.R: <1.65
- Connector: SMA Male

LTE Antenna:
- Frequency Range: 850/900/1800/1900/2170 MHz
- Bandwidth: 90/280 MHz
- Polarization: Vertical
- Gain: 3.5 dBi
- V.S.W.R: <1.5:1
- Impedance: 50 Ohm
- Connector: SMA Male

WiFi Antenna:
- Frequency Range: 2350-2500 MHz
- Bandwidth: 100 MHz
- Polarization: Vertical
- Gain: 2.5 dBi
- V.S.W.R: <1.5:1
- Impedance: 50 Ohm
- Connector: RP SMA Male

Mechanical/Environmental Specifications:
- Mounting Method: Screw
- Radome Ingress Protection rating: IP67
- Radome Material: ABS
- Weight: 0.5 pounds
- Housing Dimensions (Diameter): 3.14 x .59 inches
- Cable: 3x RG174 (9.8 feet)
- RoHS Compliant: Yes
