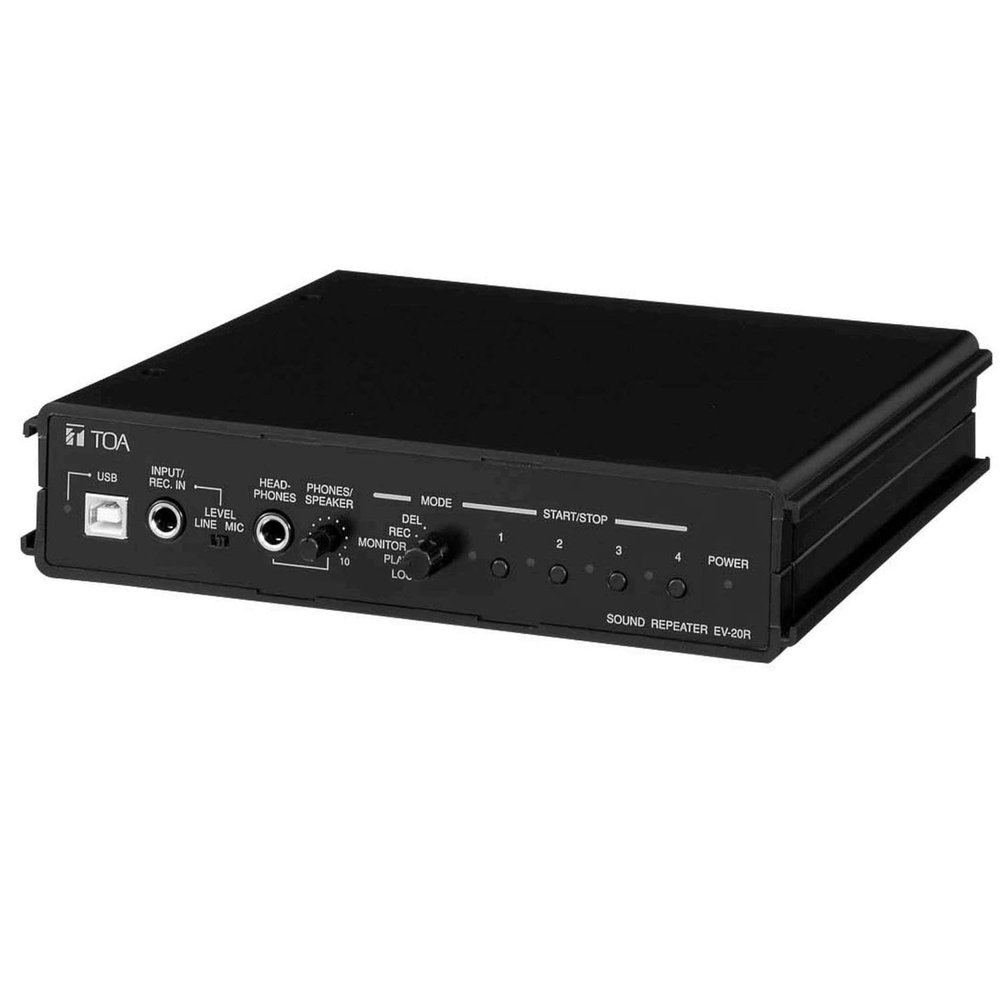

TOA EV-20R Sound Repeater (Recording and Playback Function)
AED 6,669.06
AED 11,115.10
-
Order within 19 hours and 11 minutes to get between June 20 - June 26 -
Tracked Shipping on All Orders
-
14-Day Returns
- Secure Payments
-
24/7 Customer Support
Description
- External Dimensions: Width 8.3 x Height 1.7 x Depth 7.1 inches (210 x 44.2 x 181 mm); Weight: 24.8 oz (730 g); Power Supply: External Power Supply: DC 24 V, 400 mA or AC Adapter AD-246 (sold separately); Power Consumption: 10 W (with rated output); Frequency Response: 2444 kHz sampling Hz - 20k Hz 3dB (1 kHz standard), 50 Hz - 14 kHz 3 dB (when IT-450 is implemented, 1 kHz standard); Distortion rate: less than 1 percent (when 1 kHz rated output); Recording method: USB data transfer or analog recording
- Control input: Starting 1 - 4, Stop/No-voltage makeup contact input: 200 ms pulse makeup system, Open voltage: DC 30 V, Short circuit current: 10 mA, Detachable terminal block (22 P); Control output: busy: Contact capacity: DC 30 V/0.5 A detachable terminal block (22 P); Input: Microphone - 60 dB (0 dB= dB= V) 2.2 k/line-20dB (0dB=1V) 10k (mic / line switchable) Unbalanced Horn Jack; Line Input:0dB (0dB=1V) 10k Unbalanced Detachable Terminal Block (22P)
- Output: Line Output: 0dB (0dB=1V) 600 Unbalanced Detachable Terminal Block (22P), Headphone Output: 0dB (0dB=1V) 100 Unbalanced Horn Jack, Speaker Output: 3W8 Detachable Terminal Block (22P); Display LED: Power, USB, START/STOP1-4; Max. 4. Recording source : Message 1, Westminster (*1), Message 2, 4-sound chime (*1), Message 3, Downward 4-note chime (*1), Message 4, Unregistered (*1) (*1) CD sample message. The recorded audio source can be rewritten using the included software
- Maximum recording time: 6 hours; Message delay time: 0.2 seconds, 4 seconds; Playback intervals: , 0.5 seconds, 10 seconds, 30 seconds, 1 minute, 5 minutes, 10 minutes, 30 minutes, 1 hour intervals; Operating temperature range: 0 degrees - +40 degrees Celsius humidity range: 90 % RH (but not condensation); Finish: Case: ABS plastic black (Mancel N cell. 1.0 approx. Color: Accessories: CD-ROM (USB data transfer software, sample message) x 1, unbalanced horn plug x 1, USB cable (3.3 ft (1 m) x 1, removable terminal plug (22 P) x 1, rubber feet x 4
- It is convenient for repetitive broadcasting of the same content. Record and play up to 4 types of music and audio (6 minutes total) Easily record by transferring audio source via USB. Since it has a built-in small amplifier, small broadcast can be broadened by simply connecting the speaker
