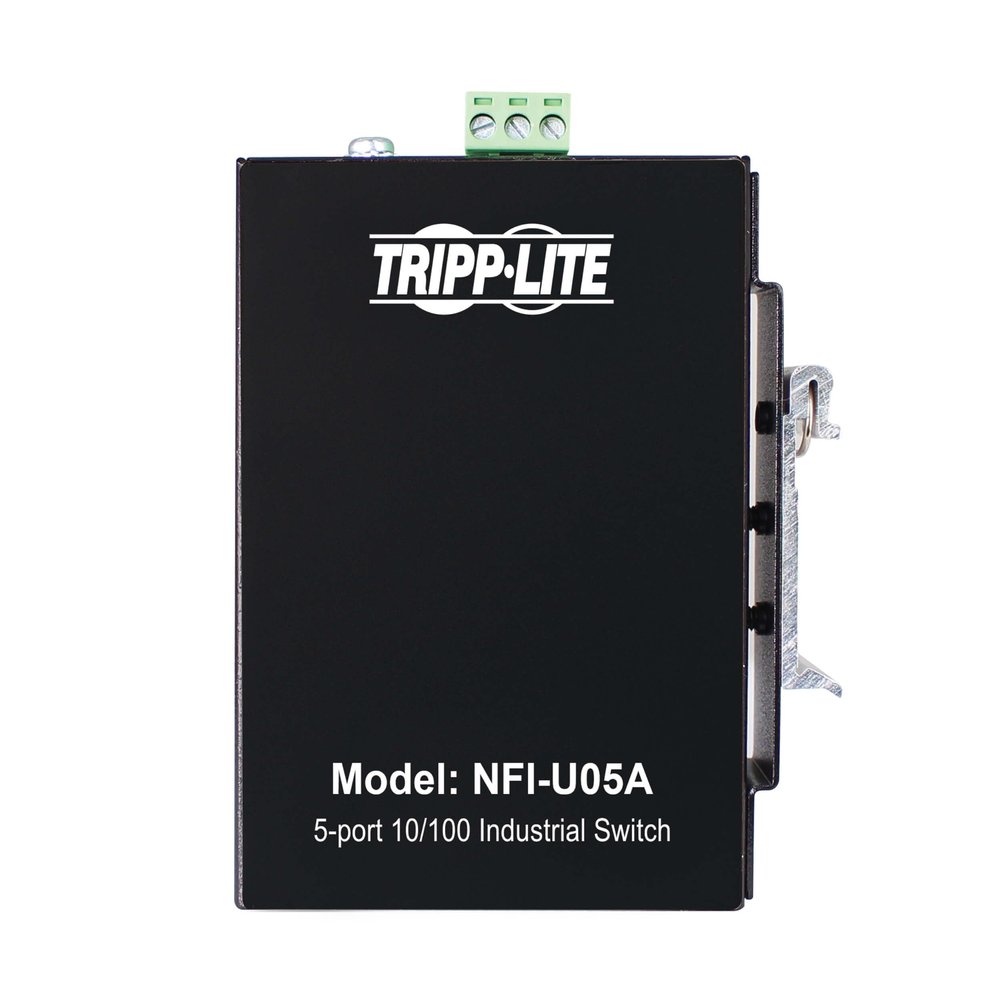

Tripp Lite 5-Port Industrial Ethernet Switch with Ethernet/IP Quality of Service (EIP QoS), 100 Mbps, Unmanaged, DIN Rail & Wall Mounting, -40 to 75C Temperature Range, 3-Year Warranty (NFI-U05A)

Description

• 5-PORT UNMANAGED ETHERNET SWITCH: Five auto-negotiating 10/100 Mbps ports send data only to devices designated to receive it. Supports browser-based operation and works independently from the connected computer's operating system. Preferred browsers include Google Chrome and Microsoft Edge.
• ETHERNET/IP QUALITY OF SERVICE: Based on the application requirements, EIP QoS helps provide different priorities for different users or data streams. This helps ensure that the performance of data streams deliver at a certain level.
• INDUSTRIAL METAL HOUSING: Industrial-grade aluminum case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -40 to 75 Celsius (-40 to 167 F). Includes pre-installed DIN mounted rail clip & pre-installed wall-mounting bracket.
• TAA-COMPLIANT FOR GOVERNMENT PURCHASES: Compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
• RELIABLE PRODUCT FULLY BACKED AND SUPPORTED: This product is covered by a 3-Year Limited Manufacturer's Warranty and is supported by Eaton's expert technical support team over phone, web and email.

5-Port Unmanaged Ethernet Switch Connects Your Devices to a LAN
This space-saving switch with EIP QoS transmits data over an Ethernet network. Five auto-negotiating 10/100 Mbps ports send data only to the devices designated to receive it, which improves the efficiency and potential throughput of the network.

Ethernet/IP Quality of Service (EIP QoS)
The EIP QoS control mechanism is widely used for Ethernet/IP data streams. Based on the application requirements, this feature helps provide different priorities for different users or data streams. This helps ensure that the performance of data streams deliver at a certain level. Note: While NFI-U05A does support QoS, the feature is handled automatically by our product. If you want to control network traffic flow or prioritize specific ports to your personal preference, you must use a router in your network with a QoS tool to achieve this level of control.

Ruggedized Metal Housing Built to Last in Harsh Environments
The compact NFI-U05A adds 10/100 Mbps Ethernet capacity to your industrial and commercial applications, such as factory floors, warehouse operations and other environments with space constraints and wide temperature ranges. The industrial-grade high-strength case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -40 to 75 degrees Celsius (-40 to 167 degrees Fahrenheit).

Unmanaged Switch Requires Little to No Configuration
Quickly connect your network devices with little to no configuration. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity. The NFI-U05A supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. IEEE 802.3x flow control allows smooth transmission of large files.

Works with the Most Popular Web Browsers
The NFI-U05A is browser-based and works independently from the connected computer's operating system. Because switch compatibility is based on common hardware standards, rather than system software dependencies, the NFI-U05A accommodates most platforms. Preferred web browsers include Google Chrome (on both Windows and macOS) and Microsoft Edge (Windows only).

Flexible Mounting Options
The open-type device may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. It may also be wall mounted using the rear mounting holes. A 3-pin 1248VDC terminal block supplies power input. Device power must be supplied by SELV circuit.

TAA-Compliant for GSA Schedule Purchases
The NFI-U05A is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
