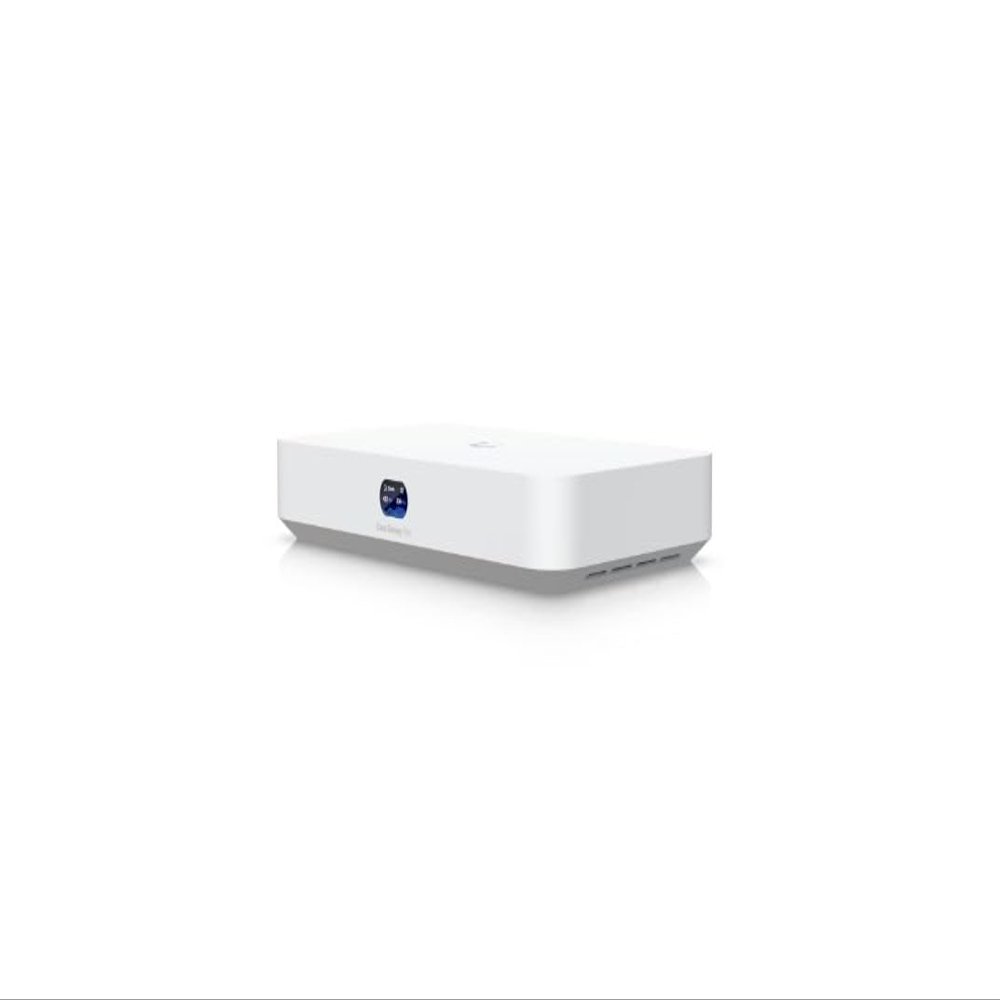

Ubiquity UCG-Fiber (30W) Compact Desktop 10G Cloud Gateway with Integrated 4-Port 2.5 GbE Switch, Selectable NVMe NVR Storage up to 2TB, Advanced Layer 7 Firewall, VPN & SD-WAN

Description

• High-Performance Cloud Gateway: Compact desktop design measuring 212.8 x 127.6 x 30 mm, powered by a quad-core ARM Cortex-A73 2.2 GHz processor with 3 GB RAM for fast, efficient processing of high-volume traffic.
• Integrated Multi-Gigabit Switching: Features a built-in 4-port 2.5 GbE RJ45 switch (2.5G/1G/100M/10M), a 10 GbE RJ45 port, and dual 10G SFP+ interfaces for versatile LAN and WAN configurations.
• Advanced Security Features: Includes stateful firewall, application-aware Layer 7 filtering, deep packet inspection, content filtering, ad blocking, and over 55,000 intrusion detection/prevention signatures with CyberSecure integration.
• Powerful VPN & SD-WAN Capabilities: Supports license-free SD-WAN, Site Magic, IPsec, OpenVPN, WireGuard, Teleport Zero-Configuration VPN, L2TP, and integrated VPN client/server options for secure remote connectivity.
• Selectable NVMe NVR Storage: Supports user-selectable NVMe SSD storage up to 2 TB for integrated UniFi Protect video recording, with capacity for (15) HD, (8) 2K, or (5) 4K cameras.
• Full UniFi Application Suite Support: Runs UniFi Network, Protect, Access, Talk, and Connect, managing 50+ devices and over 500 simultaneous client connections.
• Multi-WAN and Dynamic Routing: Offers load balancing, failover, advanced NAT, integrated RADIUS server, and dynamic routing via OSPF for optimized traffic flow.
• PoE Output Capability: Provides a 30W PoE budget (5057V) for powering connected devices, with 54V DC/1.1A power adapter included.
• Robust Environmental Tolerance: Operates in 0 to 40C temperatures and 595% non-condensing humidity, with ESD/EMP protection of 8kV air and 4kV contact.

The UCG-Fiber (30W) is a high-performance compact desktop cloud gateway engineered for demanding enterprise and prosumer networking environments, delivering multi-gigabit connectivity, advanced security, and integrated application support in a sleek form factor. Measuring 212.8 x 127.6 x 30 mm and built from durable polycarbonate, it combines a powerful quad-core ARM Cortex-A73 2.2 GHz processor with 3 GB of system memory for responsive, low-latency performance. Equipped with a 4-port 2.5 GbE RJ45 switch, a 10 GbE RJ45 port, and dual 10G SFP+ interfaces, it supports flexible multi-WAN configurations, load balancing, and failover. The device integrates a selectable NVMe SSD slot supporting up to 2TB for NVR storage, enabling seamless operation of UniFi Protect, alongside full support for UniFi Network, Access, Talk, and Connect applications. Its advanced security suite includes a stateful firewall, application-aware Layer 7 filtering, deep packet inspection, content filtering, and intrusion prevention with over 55,000 signatures via CyberSecure. With license-free SD-WAN, multiple VPN protocols, and advanced routing (OSPF), it ensures secure, optimized connectivity between sites. Supporting up to 500+ simultaneous users, managing 50+ UniFi devices, and accommodating high-resolution cameras, the UCG-Fiber is ideal for high-throughput, security-conscious deployments.
