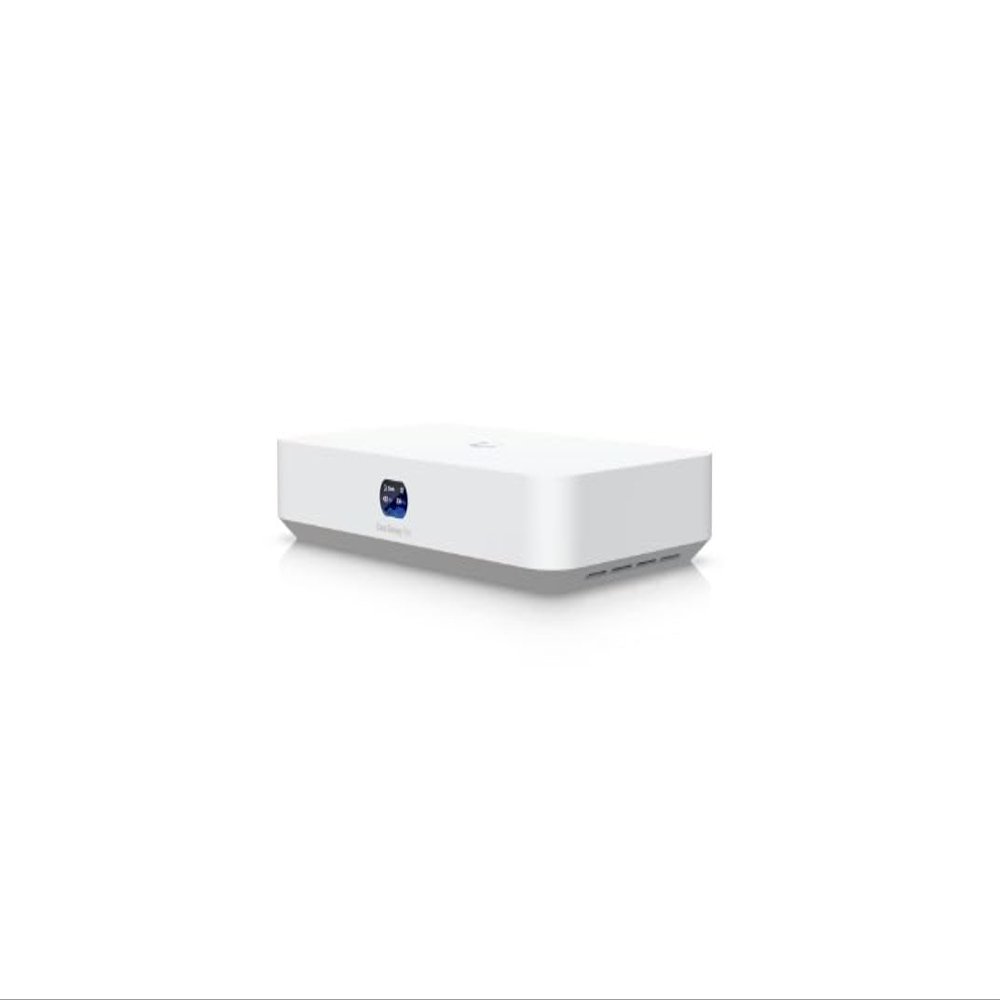

Ubiquity UCG-Fiber-1TB (30W) Compact Desktop 10G Cloud Gateway with Integrated 4-Port 2.5 GbE Switch, Selectable NVMe NVR Storage, Advanced Security Suite, Multi-WAN Support

Description

• High-Performance Cloud Gateway: Compact desktop design measuring 212.8 x 127.6 x 30 mm, powered by a quad-core ARM Cortex-A73 2.2 GHz processor with 3 GB RAM for fast, efficient processing of high-volume traffic.
• Integrated Multi-Gigabit Switching: Features a built-in 4-port 2.5 GbE RJ45 switch (2.5G/1G/100M/10M), a 10 GbE RJ45 port, and dual 10G SFP+ interfaces for versatile LAN and WAN configurations.
• Advanced Security Features: Includes stateful firewall, application-aware Layer 7 filtering, deep packet inspection, content filtering, ad blocking, and over 55,000 intrusion detection/prevention signatures with CyberSecure integration.
• Powerful VPN & SD-WAN Capabilities: Supports license-free SD-WAN, Site Magic, IPsec, OpenVPN, WireGuard, Teleport Zero-Configuration VPN, L2TP, and integrated VPN client/server options for secure remote connectivity.
• Selectable NVMe NVR Storage: Supports user-selectable NVMe SSD storage up to 2 TB for integrated UniFi Protect video recording, with capacity for (15) HD, (8) 2K, or (5) 4K cameras.
• Full UniFi Application Suite Support: Runs UniFi Network, Protect, Access, Talk, and Connect, managing 50+ devices and over 500 simultaneous client connections.
• Multi-WAN and Dynamic Routing: Offers load balancing, failover, advanced NAT, integrated RADIUS server, and dynamic routing via OSPF for optimized traffic flow.
• PoE Output Capability: Provides a 30W PoE budget (5057V) for powering connected devices, with 54V DC/1.1A power adapter included.
• Robust Environmental Tolerance: Operates in 0 to 40C temperatures and 595% non-condensing humidity, with ESD/EMP protection of 8kV air and 4kV contact.

The UCG-Fiber-1TB (30W) is a high-performance, compact desktop 10G Cloud Gateway designed for advanced network management, integrated security, and full application support in demanding environments. Measuring 212.8 x 127.6 x 30 mm, this gateway combines a powerful quad-core ARM Cortex-A73 2.2 GHz processor, 3 GB of system memory, and integrated NVR storage supporting selectable NVMe SSDs up to 2 TB for flexible video and data retention. Its networking capabilities include a 4-port 2.5 GbE RJ45 switch, a 10 GbE RJ45 port, and dual 10G SFP+ ports for high-bandwidth uplinks, delivering IDS/IPS throughput up to 5 Gbps. The unit supports 50+ managed devices, 500+ simultaneous client connections, and up to six WAN ports with dynamic routing, multi-WAN load balancing, and SD-WAN functionality. Advanced Layer 7 application-aware firewall, VLAN/subnet traffic segmentation, and over 55,000 intrusion detection signatures ensure robust network security, complemented by VPN options including WireGuard, OpenVPN, L2TP, IPsec, and Teleport zero-configuration VPN. Integrated PoE output with a 30W budget, full UniFi Application Suite compatibility (Network, Protect, Access, Talk, and Connect), and a durable polycarbonate enclosure make it ideal for enterprise, SMB, and advanced home network deployments.
