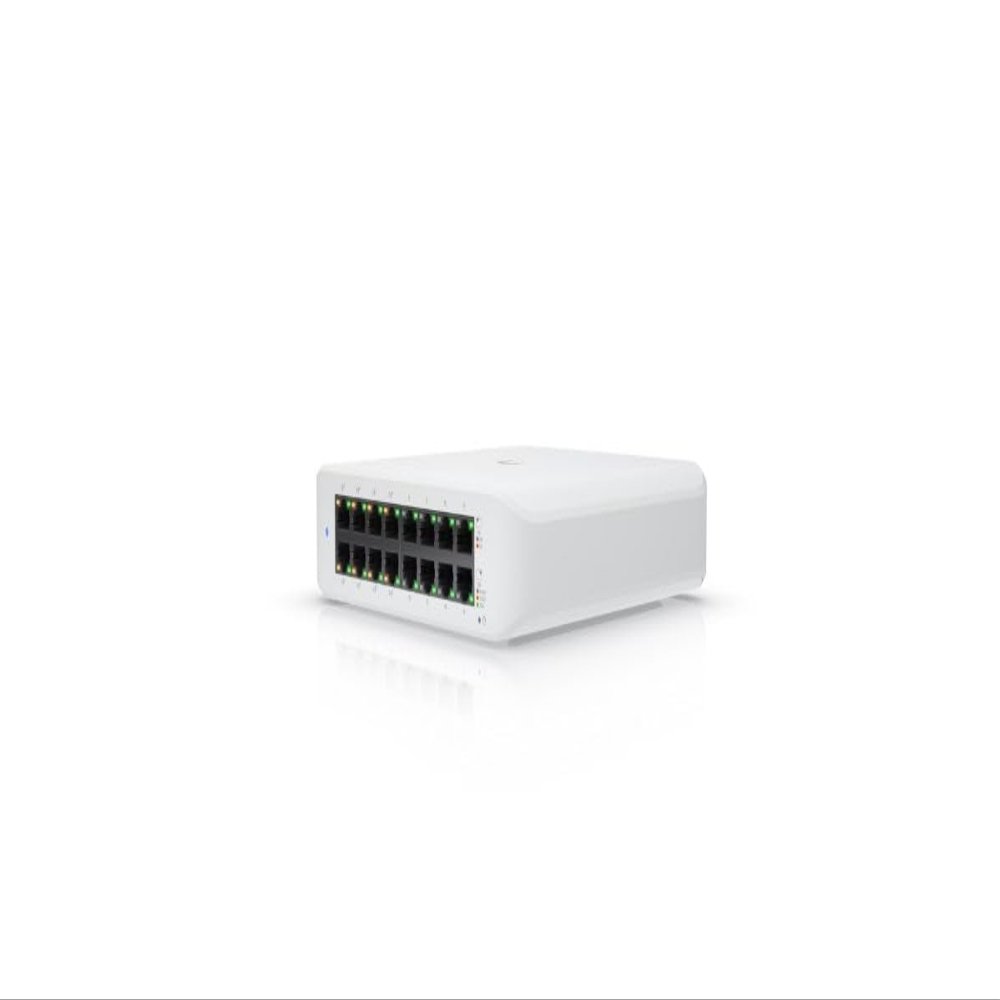

Ubiquity USW-Lite-16-POE Compact 16-Port Layer 2 PoE+ Switch with 8 PoE+ Ports, Fanless Cooling, Internal 60W AC/DC Power Supply, Wall and Desktop Mount Form Factor

Description

• 16-Port Layer 2 PoE+ Switch: 16 1 GbE RJ45 ports with 8 PoE+ ports delivering up to 32W per port; total PoE budget of 45W.
• Silent Fanless Cooling: Enables quiet operation suitable for noise-sensitive environments.
• Robust Switching Performance: 32 Gbps switching capacity, 16 Gbps total throughput, and 24 Mpps forwarding rate for efficient data handling.
• Advanced Network Segmentation: Supports up to 1,000 VLANs and 8,000 MAC address table entries for flexible network design and security.
• Comprehensive Layer 2 Features: Includes LACP, STP/RSTP, advanced IGMP, 802.1X authentication, ACLs, DHCP snooping, rate limiting, port mirroring, jumbo frames, LLDP-MED, voice VLAN, and loop protection.
• Power Supply: Internal 60W AC/DC power supply with universal input (100240V AC, 50/60 Hz).
• Compact and Durable: Polycarbonate enclosure and mount material, weighing 1.2 kg (2.6 lb) for versatile desktop or wall mounting.
• Wide Operating Environment: Supports ambient temperatures from -15 to 40 C (5 to 104 F) and 10 to 90% non-condensing humidity.

The USW-Lite-16-POE is a compact, energy-efficient Layer 2 PoE switch offering 16 1 GbE RJ45 ports, including 8 ports that provide PoE+ power delivery up to 32W per port with a total PoE budget of 45W. Designed for silent operation with a fanless cooling system, this switch is well suited for office, retail, and small business environments requiring reliable network connectivity and power over Ethernet. With a switching capacity of 32 Gbps and total non-blocking throughput of 16 Gbps, the switch supports a forwarding rate of 24 million packets per second (Mpps) for smooth, high-performance data transmission. It supports up to 1,000 VLANs and an 8,000-entry MAC address table to enable extensive network segmentation and traffic management. Comprehensive Layer 2 features enhance security and network reliability. These include LACP port aggregation for bandwidth optimization, STP and RSTP for loop prevention, advanced IGMP configuration with querier and fast leave, IGMP snooping, 802.1X port authentication, MAC-based ACLs and device isolation, DHCP snooping and guarding, egress rate limiting, flow control, storm control, multicast and broadcast rate limiting, port isolation, port mirroring, jumbo frame support, LLDP-MED, voice VLAN, and loop protection. Powered by an internal 60W AC/DC power supply supporting universal input from 100 to 240V AC at 50/60 Hz, the USW-Lite-16-POE delivers a maximum power consumption of 15W excluding PoE output and up to 60W including PoE output. The device features a durable polycarbonate enclosure and mounting materials, weighs 1.2 kg (2.6 lbs), and is designed for compact desktop or wall installation. It operates reliably in ambient temperatures ranging from -15 to 40 C (5 to 104 F) with 10 to 90% non-condensing humidity.
