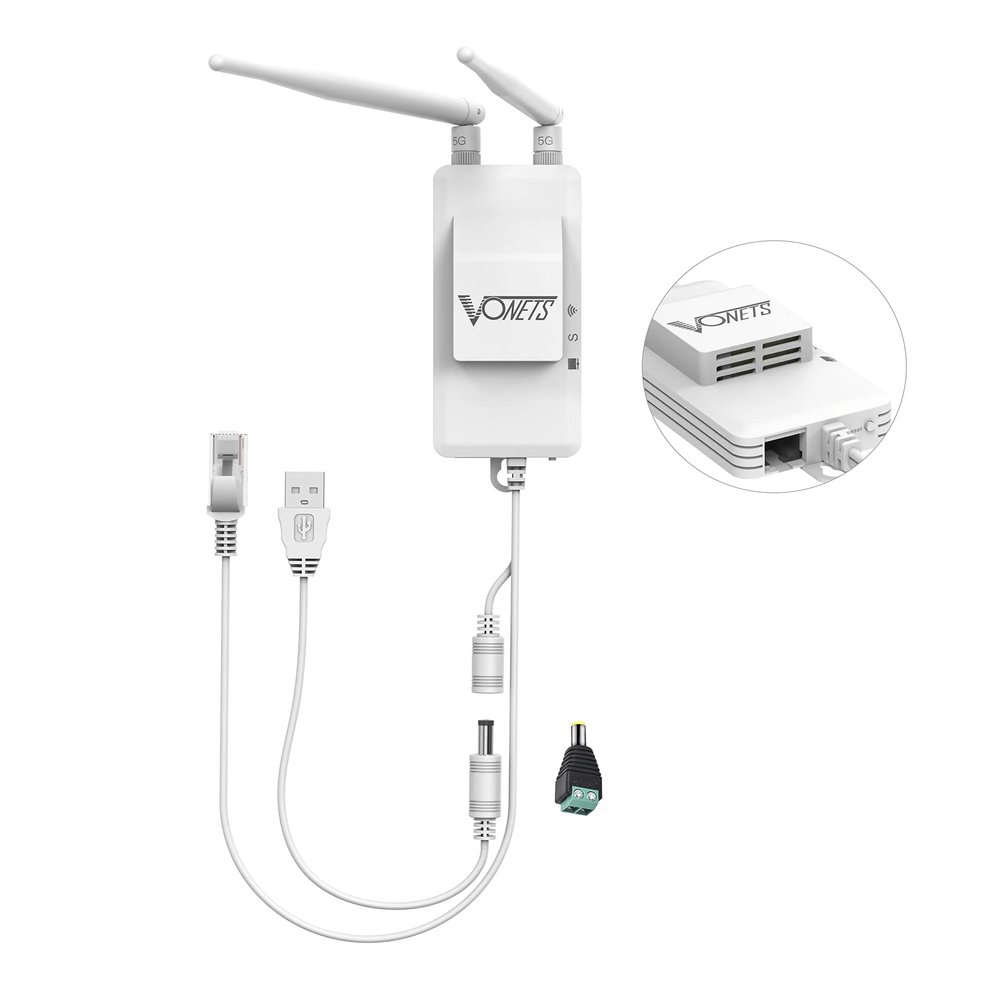

VONETS 5GHz Industrial Mini WiFi Router Bridge Repeater, WiFi to Ethernet Adapter, Wireless Bridge Converts RJ45 Connection to Wireless, 2 External Antennas, DC/USB, VAP11S-5G with Smart Cooling Fan

Description

• 5GHz WiFi Bridge/Repeater/Router Industrial 5GHz WiFi Bridge/Mini Router/WiFi Repeater LAN Adapter, WiFi Signal Cover, WiFi to Ethernet Adapter, WiFi Access Points; Wireless Bridge Converts RJ45 Connector to Wireless; with smart cooling fan, 5GHz WiFi External Antennas*2pcs.
• Connect your wired device to WiFi With this 5GHz WiFi Bridge/Repeater/Router, Ethernet to Wireless Adapter, your Ethernet-enabled devices can reach the Internet via Wireless connection. this WiFi bridge also can be used for most devices with RJ45 port (has network) or WiFi hotspot, and then configure to use. It can extend the WiFi hotspot range and also can convert the WiFi signal to wired or wired to the WiFi signal.
• Multi Function Mode WiFi Bridge: WiFi to Wired convert (IP layer or MAC layer transparent transmission); WiFi Repeater (Wireless Signal Repeater): can extend WiFi signal Range, WiFi transmission and WiFi access point (WiFi AP hotspots); Router Mode (support WiFi WAN uplink and WAN/LAN exchange);
• Works with all WiFi/Ethernet enabled devicesThis WiFi to Ethernet adapter supports surveillance, DVR, IP cameras, medical devices, IoT devices, video transmission, industrial PLC, AGV, NVR, network printer, Ethernet switch or computer, etc.
• Power & Parameters Wide voltage DC5V-24V power supply (typical 5V/2A or 12V/1A, ripple less than 100mV), two-stage automatic overvoltage protection (protective voltage upper limit 27V), optional USB or DC power supply mode; 1 mounting kit and 1 industrial DC connector, more suitable for industrial applications;
• Better WiFi SignalThe Ethernet Wireless Adapter comes with 2 WiFi External Antennas, which receive stronger WiFi signal than the internal antennas, Supports WiFi 802.11a/ac/n, WiFi Rate: 900Mbps; Two adaptive 10/100Mbps Ethernet ports (1 RJ45 jack and 1 cable with RJ45 connector).
• Smart Cooling Fan for heat dissipation. This device is a mini high-power 5GHz WiFi Bridge/Repeater/Router, Mini Size, high power leads to VAP11S-5G heat, built with Smart automatic start and stop of the fan: after 5-10 minutes of normal operation, the fan cooling function will be turned on automatically, and the mini Wireless Bridge for intelligent automatic start and shutdown of the fan, more stable operation.
• Point to point transmission distance Maximum can be up to 200meters when without obstacles and small data (802.11a, Enhanced Power), 20 to 100meters when used for video transmission; WiFi Tx Power: 19dBm/23dBm optional (Enhanced Power).
• Warm TipsPlease check the manual or configuration video in detail before use, so that one-time configuration success, if you have any questions, please contact us: skyfoxcn@vip.163.com

VONETS VAP11S-5G is an industrial mini 5GHz WLAN bridge/wireless repeater/WiFi router, LAN to WLAN adapter that can achieve a WLAN to wired or wired to WiFi function (Ethernet to WLAN or WLAN to Ethernet), with intelligent cooling fan. Good partner for surveillance, DVR, IP camera, medical devices, IoT devices, video transmission, industrial PLC, PS3, network printer, robot, doll machine and other network applications

Product description:

1. Support 802.11A/AC/N transmission protocol.
2. 5 GHz wireless bandwidths are 900 Mbps. Transmission rate with external antenna faster and more stable.
3. 2 x 5G external antennas, transmitting power: 19dBm/23dBm adjustable.
4. WiFi hotspot memory, maximum memory 100 hotspots.
5. Support for simultaneous connection of more than 20 WiFi devices.
6. Built-in 2 high-performance FEM, built-in intelligent cooling fan with automatic start and stop.
7. Support SSA signal strength detection report function to realise mobile WiFi positioning.
8. Supports IP layer transparent transmission and MAC layer transparent transmission.
9. Working environment temperature: -20C to 50C;
External interface:
1) USB/DC power supply cable.
2) 10/100 Mbps adaptive Ethernet cable.
3) 10/100 Mbps adaptive Ethernet port (a dedicated Ethernet port expander can be used).
LED status display:
Ethernet port (cable) status light (yellow);
WiFi connection status light (green).
System status light (blue).

Package contents:
1 x VAP11S-5G.
2 x 5G external antennas.
1 x mounting kit.
1 x industrial DC connection.
1 x user manual.
1 x retail packaging.

If you have any questions about the setup, please contact us: skyfoxcn@vip.163.com
