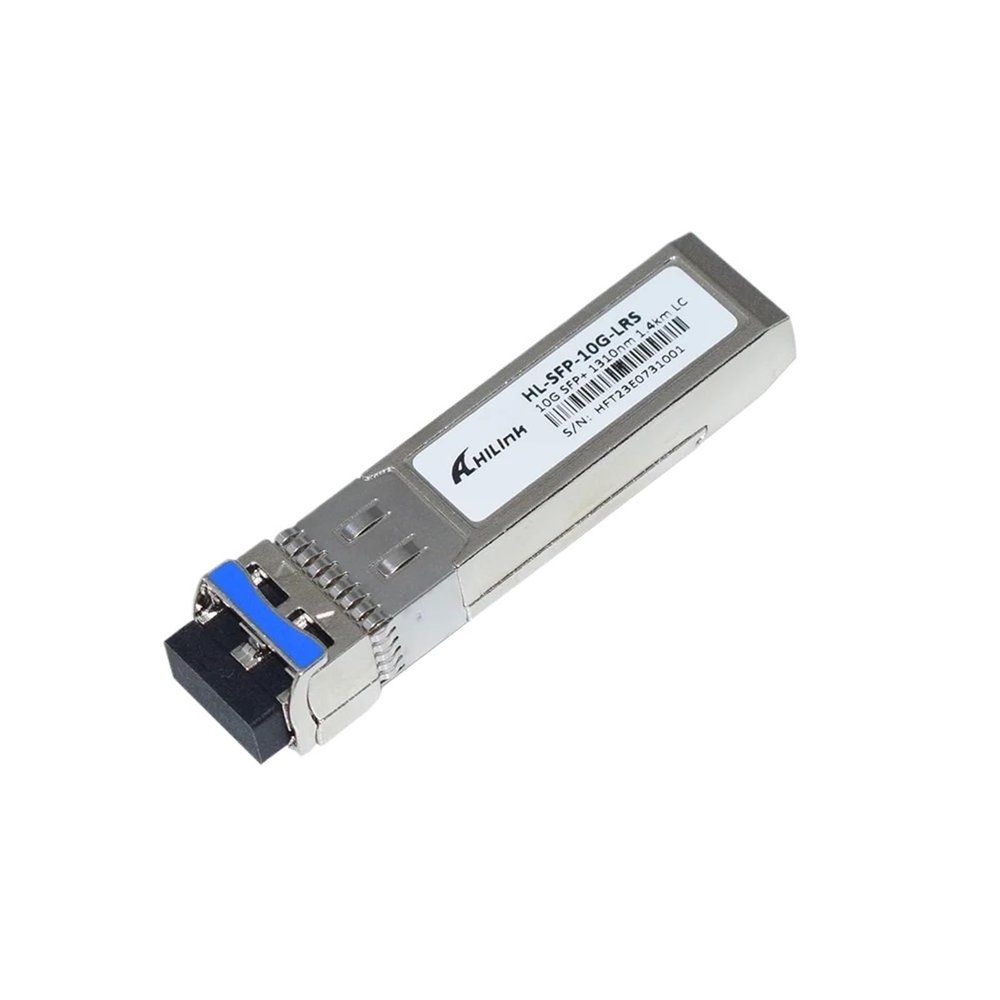

WVCLTVJA HL-SFP-10G-LRS 10G SFP+ 1.4KM Dual LC 1310nm 1.4km ~ 2km Transceivers(1 pc)

Description

• Fiber Optic Receivers
• HL-SFP-10G-LRS 10G SFP+ 1.4KM Dual LC 1310nm 1.4km ~ 2km Transceivers

Fiber Optic Receivers
HL-SFP-10G-LRS 10G SFP+ 1.4KM Dual LC 1310nm 1.4km ~ 2km Transceivers
10G 1310nm SFP+ 1.4-2KM
General
The HL-SFP-10G-LRSSmall Form Factor Pluggable (SFP)transceiversare compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement ().The transceiver consists of four sections: the LD driver, thelimiting amplifier, theDMLlaser and the PIN photo-detector.The data link up to1.4KM in 9/125um single mode fiber.The optical output can be disabled by a TTL logic high-level input of Tx Disable. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner.
Product Feature
Up to 11.1Gbps Data Links
Up to1.4km transmission on SMF
DMLLaser and PIN receiver
Metal enclosure, for lower EMI
2-wire interface with integrated Digital Diagnostic monitoring
-pluggable SFP+ footprint
Specifications compliant with SFF 8472
Compliant with SFP+ with LC connector
Single 3.3V power supply
<; 1.2 W
Operating temperature range:
Commercial: 0C to +70C
Industrial: -40C to +85C
Application
10GBASE-LR/LW & 10G Ethernet
Switched Backplane Applications
RouterServer Interface
Other Optical Links
10G DWDM Transceivers
Part Number
Product Description
HL-10G-LRS-C
10G SFP+ 1310nm1.4km Transceivers, C-TEMP
HL-10G-LRS-I
10G SFP+ 1310nm1.4km Transceivers, I-TEMP
