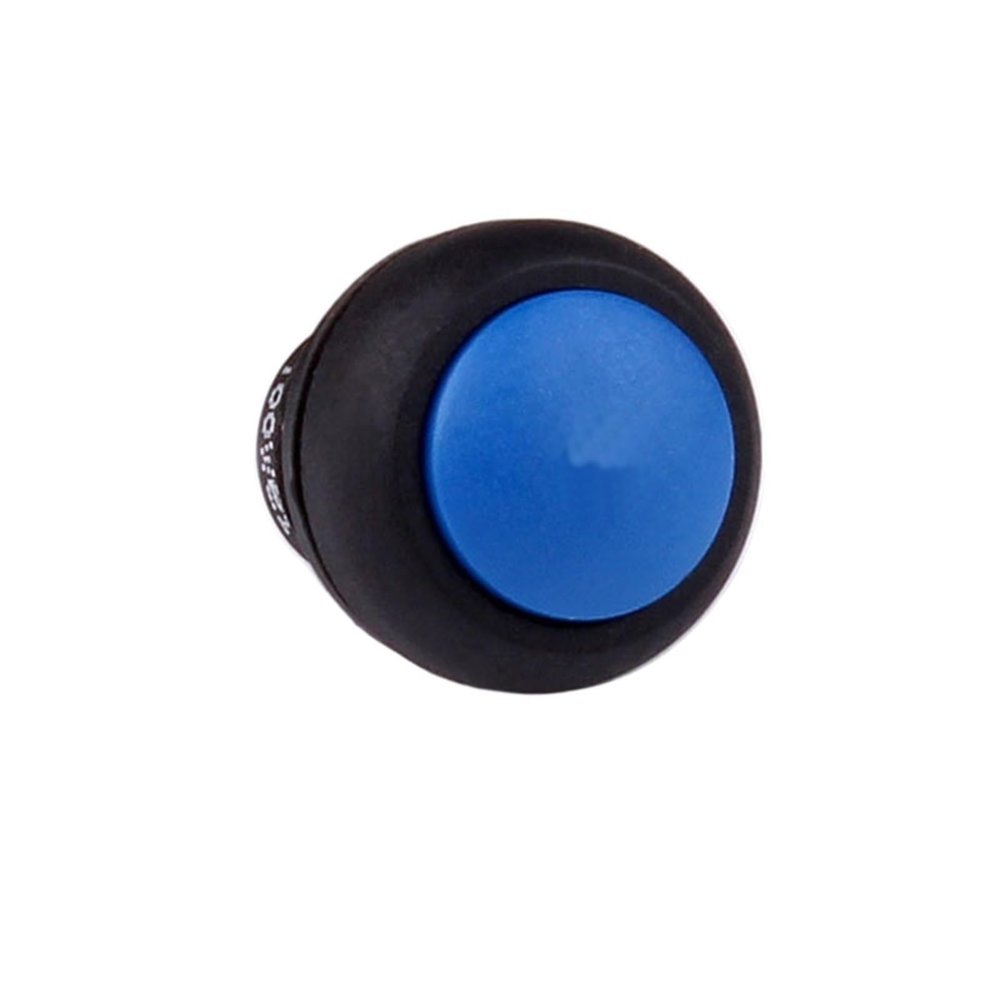

ZGTUYEAJ 5 Pieces 12mm Push Button Switch IP67 Waterproof Fixation Momentary Switch(Blue,Latching)

Description

• Switches
• 5 Pieces 12mm Push Button Switch IP67 Waterproof Fixation Momentary Switch

Switches
12mm push button switch ip67 plastic momentary
A4126 series waterproof push button switch , protection degree IP67 ,installation size is 12mm. According to the material , it has metal push button switch and plastic push button switch . All the switches has self-locking and momentary two different kinds . If equip with LED light , colour can be customised based on the customer's request . It widely used in beauty equipment , small yacht, lamps, , military communication intelligent network equipment and the other instruments .
Function
Momentary: Means that when you push switch and then move your finger, the actuator will back to the position.
Latching: Means that when you push switch once it will change state and stay in this pushed-down position and will not come back to position unless you push it again.
Technical Paremeters
1. Operating force 6Nf, best range is 5Nf~6Nf , Maximum endurance 5kgf
2. Contact resistance 50m
3. Rated current 3A , rated voltage 250VAC
4. Insulation resistance 100m /min
5. Withstand voltage: AC 1000V(50~60hz)/min
6. Solderability: soldering iron 3405/1-2s
7. Solder resistance: soldering iron 3405/3-5s
8. Durability : Electrical life 50000 times, Mechanical life 100000 times
9. Protection degree: IP67
10 Material: Nylon PA66+20% glass fiber
11. Installation size: 12mm
==========
Current : 3A
Material : Plastic
Switch Type : Push Button Switch
Model Number : 4126
Features : waterproof IP67
Item Type : SWITCHES
Is Smart Device : No
Function : Momentary and latching normal open
front shape : round
Front material : Plastic
Size : 12mm
body color : black
Terminal : Pin terminal
